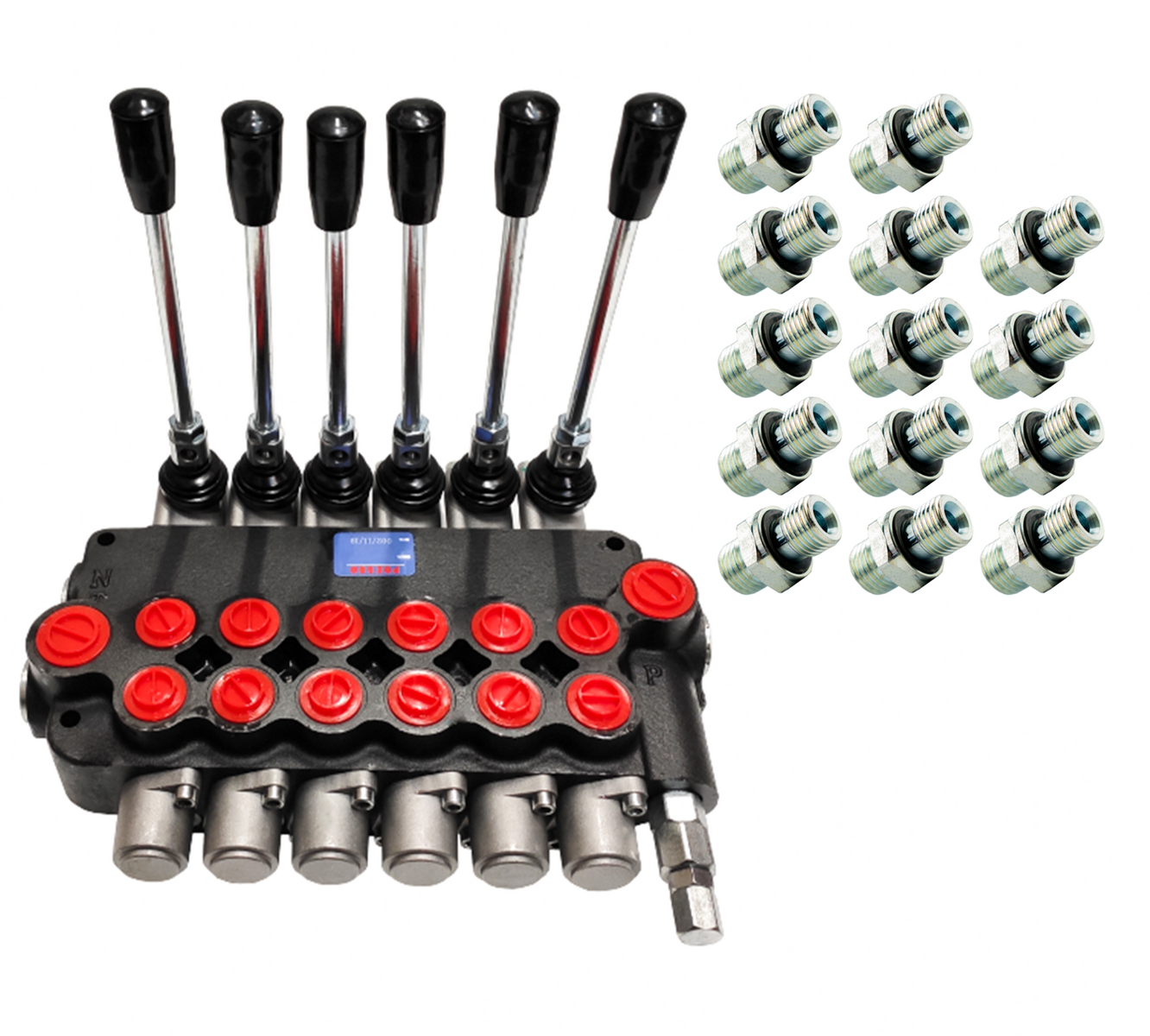

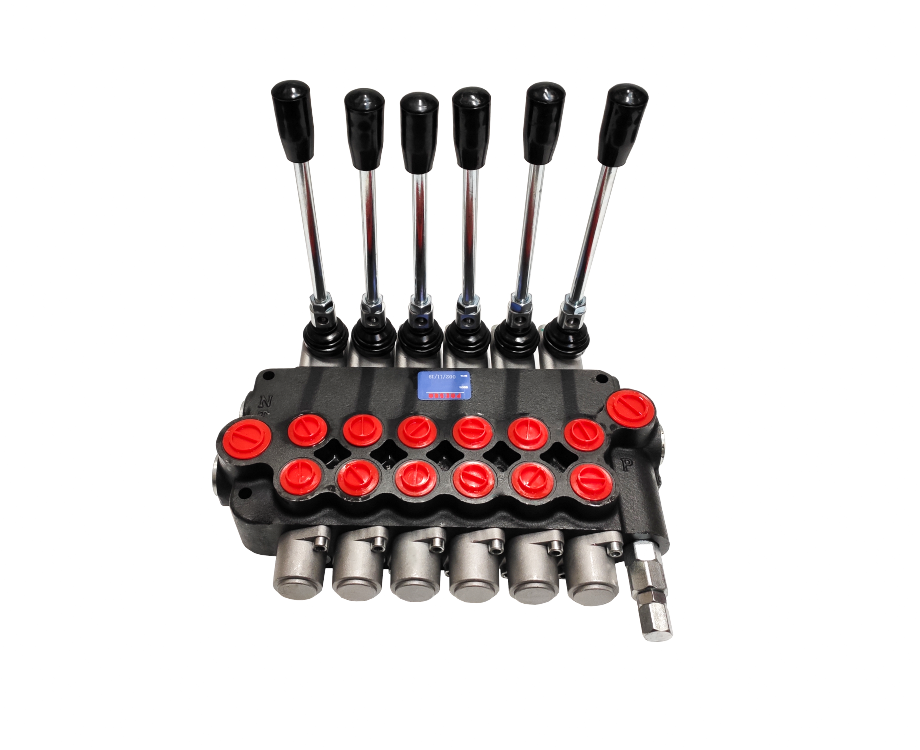

PRESKO Directional Control Valve, 6-way, 80 l, hose nipples
- PRESKO Directional Control Valve, 6-way, 80 l/min., set of dedicated hose nipples
High quality hydraulic directional control valve, 6-way, flow rate 80 l/min., with a set of dedicated hose nipples
FEATURES
• PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
• High-quality materials used for production guarantee durability and smooth operation
• Solid and compact construction
• Easy mounting
• PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
• Equipped with a safety valve
The lever (1-0-2)
• Position 0 neutral – the oil is directed to the overflow
• Position 1 (up) – oil flow (the piston rod of the cylinder extends)
• Position 2 (down) - oil flow (the piston rod of the cylinder retracts)
TECHNICAL DATA
- Number of ways: 3
- Maximum flow rate 80 l/min.
- Maximum operating pressure 50 bar
- Safety valve setting 180 bar’
 |
Material: galvanised steel + rubber gaskets |
PORTING
- Oil inlet - internal thread, BSP 3/4''
- Oil outlet - internal thread BSP 3/4''
- Connection ports - - internal thread, BSP 1/2''
- Serial connection (to another directional control valve) - internal thread BSP 3/4"
- Safety valve: 250 bar
 |
 |
Note: The above-mentioned technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
