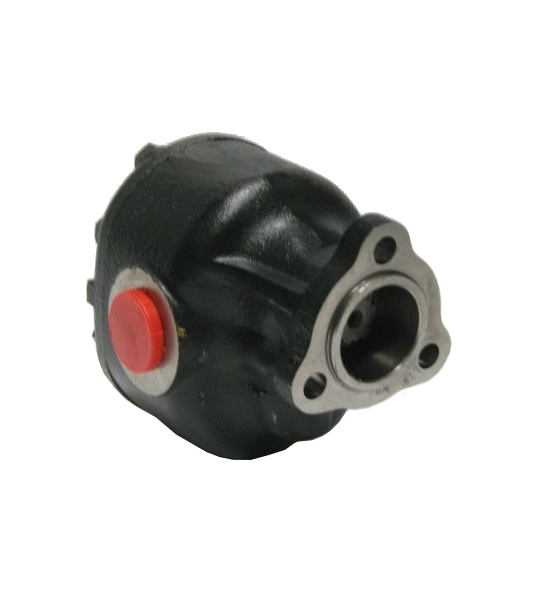

Gear pump, PZB XP 83, left-handed, UNI
- External gear pump PZB, type XP 83, with a flow rate of 83.0 l/min (at 1,000 rpm), left-hand direction of rotation¹, with shaft according to UNI 21-222 (3 holes).
NOT SURE WHAT THE DIRECTION OF ROTATION OF YOUR PUMP IS? CHECK HERE
External gear pump PZB, type XP 83, with a flow rate of 83.0 l/min (at 1,000 rpm), left-hand direction of rotation¹, with shaft according to UNI 21-222 (3 holes).
BASIC DATA
| Geometric working volume | 83.0 cm3/rev. |
| Flow capacity (at 1000 rpm) | 83.0 l/min |
| Maximum operating pressure (continuous) | 210 bar |
| Direction of rotation¹ | left-hand |
| Maximum speed (continuous) | 2500 rpm |
| Minimum speed |
300 rpm |
| Shaft drive |
6×21×25 UNI 21-222 |
| Mounting flange | according to UNI 21-222 (3 holes) |
| Typical application | |
| Country of origin | Italy |
| Manufacturer's website | <www.pzbitaly.com |
SUPPLEMENTARY INFORMATION
| Torque (at maximum pressure) | |
| Dead weight | 11.2 kg |
| Temperafront loader oil operation (permissible range) |
-10÷80° C |
| Recommended oil viscosity | 12÷100 cSt |
| Axial length after installation | 189 mm |
| Cross section | 142×116 mm |
| Suction connection | g 1" female thread (acc. to BSPP²) |
| Discharge connection | g 1" female thread (according to BSPP²) |
- The direction of rotation is determined by looking at the pump from shaft. Right-hand direction - clockwise, left-hand direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
