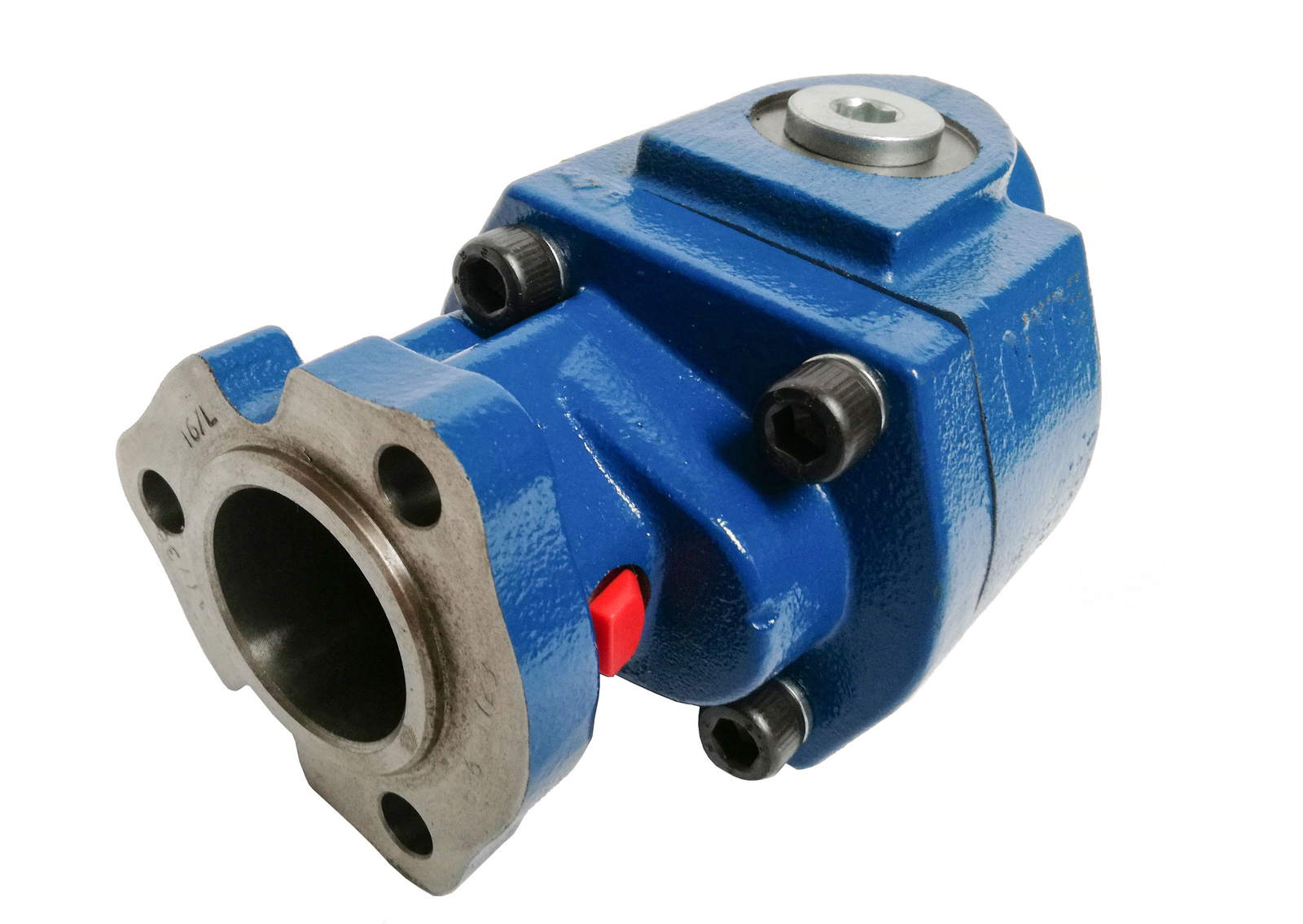

Gear hydraulic pump, 200BPS01600, Hydrocar BPS 16, bi-directional, UNI
- Hydrocar external gear pump, type BPS 16, with a flow rate of 16.4 l/min (at 1,000 rpm), with uNIwersal direction of rotation¹, from shaft according to UNI (DIN 5482).
Check what direction of rotation you have
Hydrocar external gear pump, type BPS 16, with a flow rate of 16.4 l/min (at 1000 rpm), with uNIwersal direction of rotation¹, from shaft according to UNI (DIN 5482). New version of the 200NFL pump .
BASIC DATA
| Geometric working volume | 16.4 cm3/rev. |
| Flow capacity (at 1000 rpm) | 16.4 l/min |
| Maximum working pressure (continuous) | 280 bar |
| Direction of rotation¹ | uNIvertical |
| Maximum speed (continuous) | 2200 rpm |
| Minimum speed |
450 rpm |
| Shaft drive |
B13×19×22, UNI (DIN 5482) |
| Mounting flange | according to UNI (3 holes) |
| Typical application | trucks |
| Country of origin | Italy |
| Manufacturer's website | www.hydrocar.com |
SUPPLEMENTARY INFORMATION
| Torque (at maximum pressure) | |
| Own weight | 5.85 kg |
| Temperafront loader oil operation (permissible range) |
-10÷80° C |
| Recommended oil viscosity² | 12÷100 cSt |
| Axial length after installation | 151 mm |
| Cross section | 117×? mm |
| Suction connection | g ½" female thread (according to BSPP³) |
| Discharge connection | g ½" female thread (according to BSPP³) |
- The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
