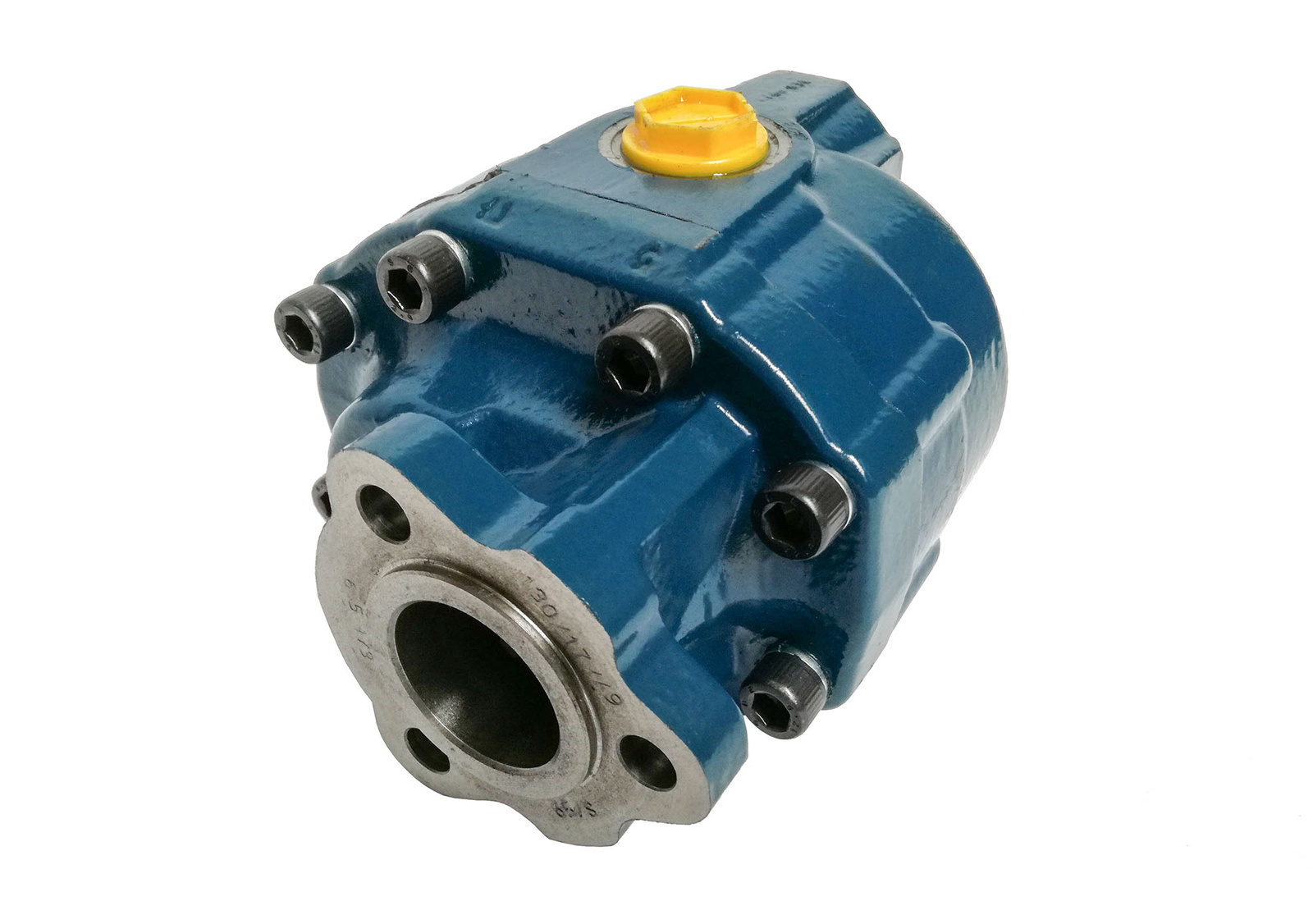

Gear hydraulic pump, 200FZ0043D0, Hydrocar FZ0 43, right-hand drive, UNI
Gear hydraulic pump, 200FZ0043D0, Hydrocar FZ0 43, right-hand drive, UNI
- Hydrocar external gear pump, type FZ0 43, with a flow rate of 43 l/min (at 1,000 rpm), right-hand rotation¹, with shaft according to UNI 21-222. New version of the 200NFA pump.
NOT SURE WHAT THE DIRECTION OF ROTATION OF YOUR PUMP IS? CHECK HERE
Hydrocar'sexternal gear pump, type FZ0 43, with a flow rate of 43 l/min (at 1000 rpm), with right direction of rotation¹, from shaft according to UNI 21-222. New version of the 200NFA pump.
BASIC DATA
| Geometric working volume | 43.0 cm3/rev. |
| Flow capacity (at 1000 rpm) | 43.0 l/min |
| Maximum operating pressure (continuous) | 280 bar |
| Direction of rotation¹ | clockwise |
| Maximum speed (continuous) | 2200 rpm |
| Minimum speed |
350 rpm |
| Shaft drive |
according to UNI 21-222 |
| Mounting flange | according to UNI 21-222 (3 holes) |
| Typical application | trucks |
| Country of origin | Italy |
| Manufacturer's website | www.hydrocar.com |
SUPPLEMENTARY INFORMATION
| Torque (at maximum pressure) | |
| Own weight | 10.2 kg |
| Temperafront loader oil operation (permissible range) |
-10÷80° C |
| Recommended oil viscosity² | 12÷100 cSt |
| Axial length after installation | 162.5 mm |
| Cross section | 150×120 mm |
| Suction connection | g 1" female thread (according to BSPP³) |
| Discharge connection | g ¾" female thread (according to BSPP³) |
- The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
