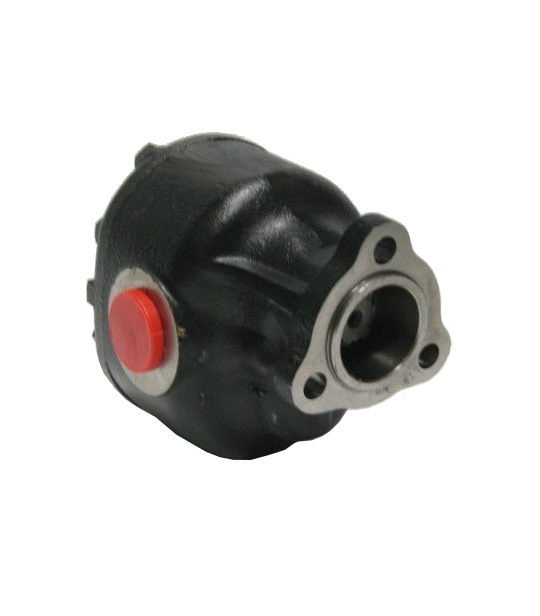

Gear pump, PZB XP 83, right-hand drive, UNI
Gear pump, PZB XP 83, right-hand drive, UNI
- External gear pump PZB, type XP 83, with a flow rate of 83.0 l/min (at 1,000 rpm), right-hand rotation¹, with shaft according to UNI 21-222 (3 holes).
NOT SURE WHAT THE DIRECTION OF ROTATION OF YOUR PUMP IS? CHECK HERE
External gear pump PZB, type XP 83, with a flow rate of 83.0 l/min (at 1,000 rpm), with right direction of rotation¹, with shaft according to UNI 21-222 (3 holes).
BASIC DATA
Geometric working volume | 83.0 cm3/rev. |
Flow capacity (at 1000 rpm) | 83.0 l/min |
Maximum operating pressure (continuous) | 210 bar |
Direction of rotation¹ | clockwise |
Maximum speed (continuous) | 2500 rpm |
Minimum speed |
300 rpm |
Shaft drive |
B6×21×25 UNI 21-222 |
Mounting flange | according to UNI 21-222 (3 holes) |
Typical application | |
Country of origin | Italy |
Manufacturer's website | www.pzbitaly.com |
SUPPLEMENTARY INFORMATION
Torque (at maximum pressure) | |
Own weight | 11.2 kg |
Temperafront loader oil operation (permissible range) |
-10÷80° C |
Recommended oil viscosity² | 12÷100 cSt |
Axial length after installation | 189 mm |
Cross section | 142×116 mm |
Suction connection | g 1" female thread (according to BSPP³) |
Discharge connection | g 1" female thread (according to BSPP³) |
- The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
To download
Brand
Symbol
3.1.2.3.083.2.0.X.0
