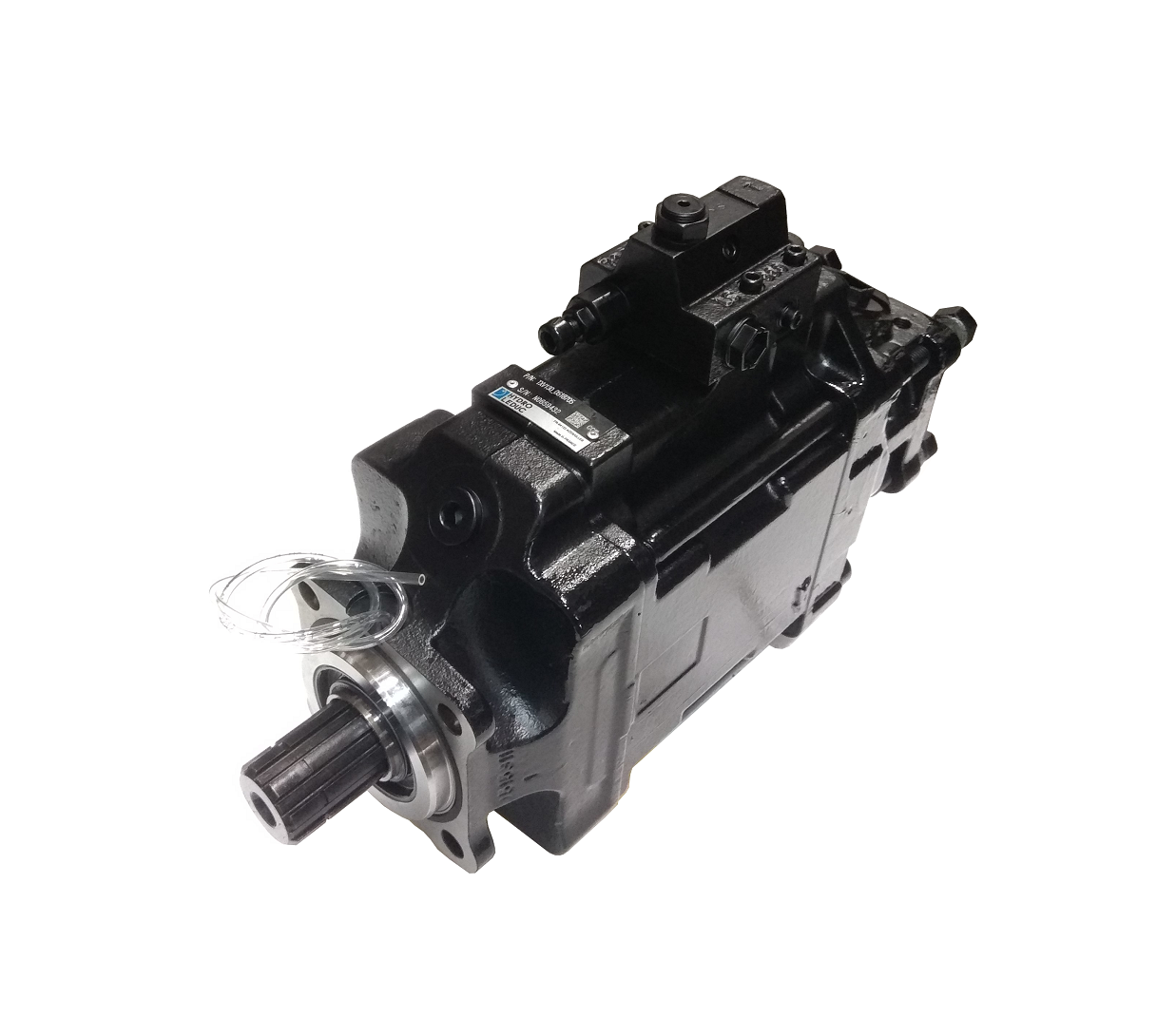

Multi-piston pump, Hydro Leduc TXV60, left side
Multi-piston pump, Hydro Leduc TXV60, left side
- Hydro Leduc TXV60 variable displacement (max. 60l/min.) multi-piston pump, left, with adjustable flow and pressure.
Hydro Leducmulti-pistonpump , type TXV 60 left, variable displacement, max. 60 l/min, with shaft according to ISO 14 - NF E 22.131, spline 8-32-36.
BASIC DATA
| Geometric working volume | 60 cm3/rev. |
| Maximum working pressure (continuous) | 400 bar |
| Direction of rotation¹ | left |
| Maximum speed (continuous) | 2600 rpm |
| Shaft drive |
B8×32×36 ISO 14 |
| Typical application | trucks |
| Country of origin | Italy |
| Manufacturer's website | www.hydroleduc.com |
SUPPLEMENTARY INFORMATION
| Torque (at 300 bar) | 295 Nm |
| Weight | 26.8 kg |
| Temperafront loader oil operation (permissible range) |
-10÷80° C |
| Recommended oil viscosity² | 12÷100 cSt |
| Suction connection | g 1 1/2" female thread (according to BSPP³) |
| Discharge connection | g 3/4" female thread (acc. to BSPP³) |
- The direction of rotation is determined by looking at the pump from shaft. Clockwise direction - clockwise, counterclockwise direction - counterclockwise. Running the pump with the wrong direction of rotation can cause damage to the pump.
- The pump is not suitable for use with oil-in-water emulsions (HFA, HFB, HFC) and synthetic non-oil hydraulic fluids (HFD) - according to the 5th Report of the European Commission for Mining Safety.
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
