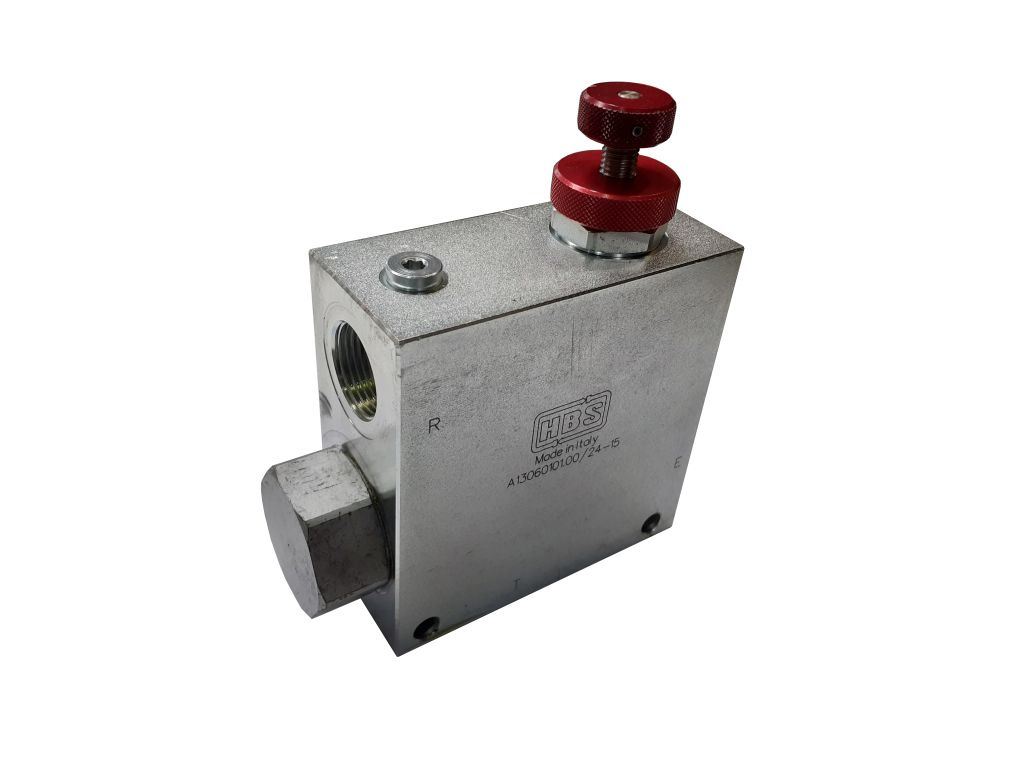

Flow regulator, HBS, B1303010100, 3/8"
e-mailagro@hewea.com
Flow regulator, HBS, B1303010100, 3/8"
- Flow regulator, HBS, type B1303010100 with G ⅜" female thread with single compensation.
Flow regulator, HBS, type B1303010100 with G ⅜"female threadwith single compensation.
BASIC DATA
| Maximum flow rate |
55 l/min |
| Connection E (supply line) |
g ⅜"thread(according to BSPP¹) |
| R-connection (receiver) |
g ⅜" thread (according to BSPP¹) |
| Connection T (tank) | g ⅜" thread (according to BSPP¹) |
| Maximum operating pressure (continuous) | 230 bar |
| Own weight |
1.2 kg |
| Country of origin |
Italy |
| Manufacturer's website | www.hbs.it/en |
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for informational purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
