100-liter oil tank (1000x300x400) STEEL
e-mailhydraulika@hewea.com
tel:882115781
100-liter oil tank (1000x300x400) STEEL
- 100-liter oil tank, stainless steel.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

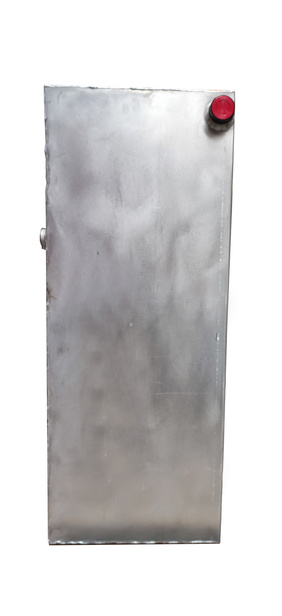

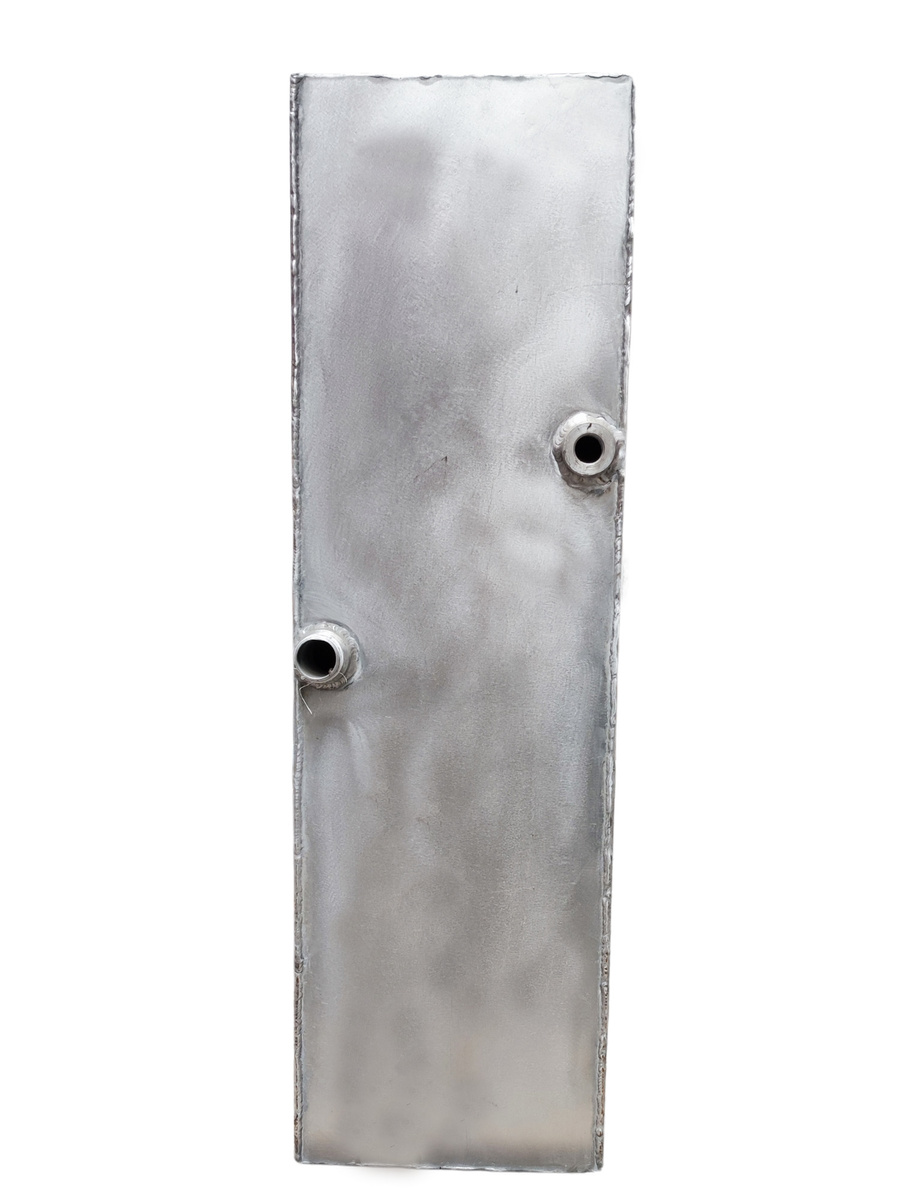

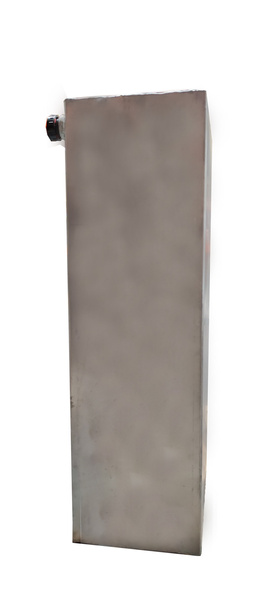

A 100-liter stainless steel oil tank measuring 1000x300x400mm.
BASIC SPECIFICATIONS
| Capacity | 100 L |
| Height | 400 mm |
| Depth | 1000 mm |
| Width | 300 mm |
| Material |
stainless steel sheet |
| Joining method | welding |
| Protective coating | stainless steel |
| Color | silver |
| Suction connection |
1" male thread (per BSPP¹) |
| Return connection | G 3/4" female thread (per BSPP¹) |
| Typical installation location |
on the vehicle frame side member |
| Country of origin | Poland |
| Manufacturer’s website |
- British Standard Pipe Parallel – British Standard Pipe Parallel, inch-sized roller thread, one of the Whitworth pipe threads (BSP) designated by the letter G.
Note: The technical and performance parameters of the product listed above are for informational purposes only. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the specifications of the product supplied by the manufacturer. The source data is included in the manufacturer’s brochure, which can be downloaded from the “Downloads” tab (below).
Symbol
X20.ZBIORNIKMHS
Producer code
X20.ZBIORNIKMHS
