Chiodino oil tank 160 liters (630x680x380)

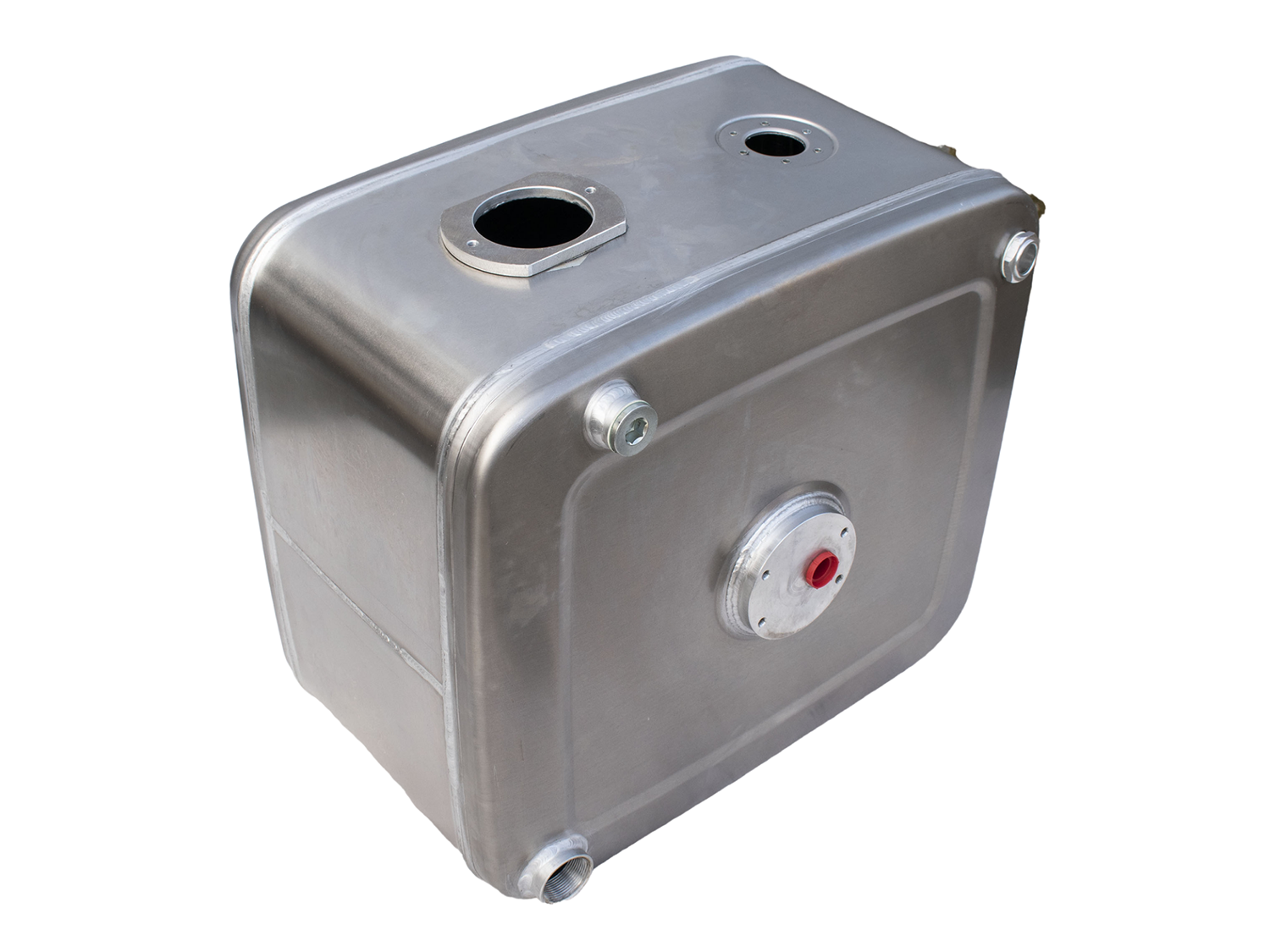

- Chiodino oil tank with a capacity of 160 l, aluminum.
Chiodinooil tankwith a capacity of 160 l, aluminum.

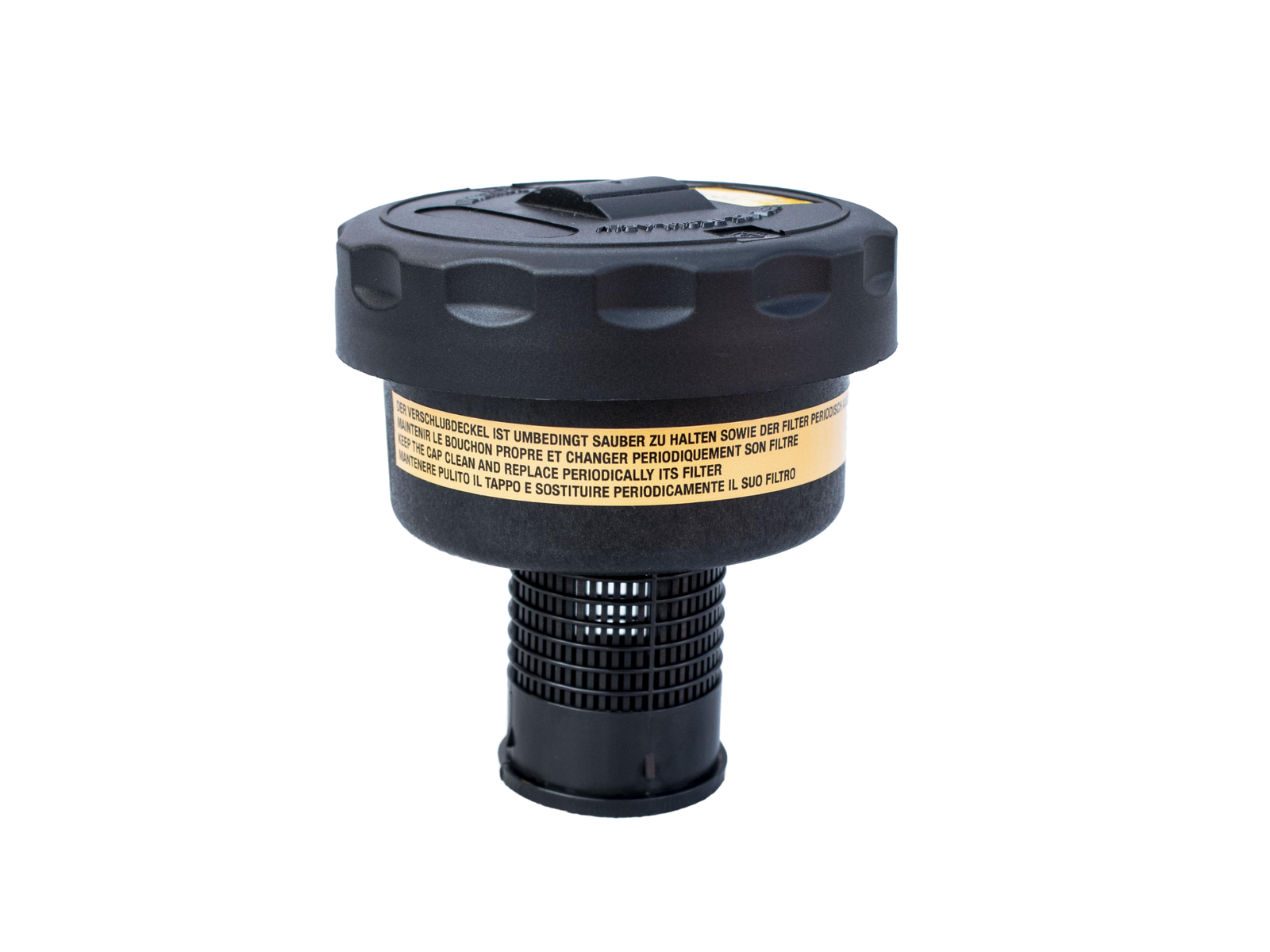

Set composition: mounting brackets, hose Gaskets rubber, filler cap, oil level indicator, plate under hydraulic Directional Valve.
Filter sold separately.
BASIC DATA
| Capacity | 160 l |
| Height | 630 mm |
| Depth | 680 mm |
| Width | 380 mm |
| Material |
aluminum |
| Output |
G 1 1/2" (6/4") |
| Return |
G 1" in the filter |
| Country of origin | Italy |
| Manufacturer's website | www.chio dino.it |
- British Standard Pipe Parallel - British StandardPipe Parallel , inchcylindrical thread , one of the Whitworthpipe threads(BSP) denoted by the letter G.
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
To download
Brand
Entity responsible for this product in the EU
CHIODINO SORBATOI S.R.LMore
ProducerCHIODINO SORBATOI S.R.LAddress:
Via Bertini 7Postal code: 47122City: FORLI FCCountry: Włochy
Responsible entityCHIODINO SORBATOI S.R.LAddress:
Via Bertini 7Postal code: 47122City: FORLI FCCountry: Włochy
Symbol
18.HW160Y99
Producer code
18.HW160Y99
