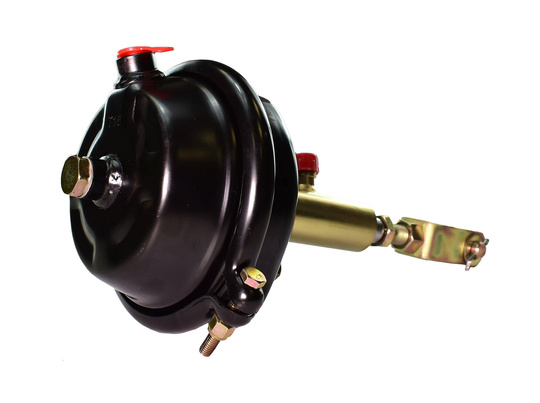

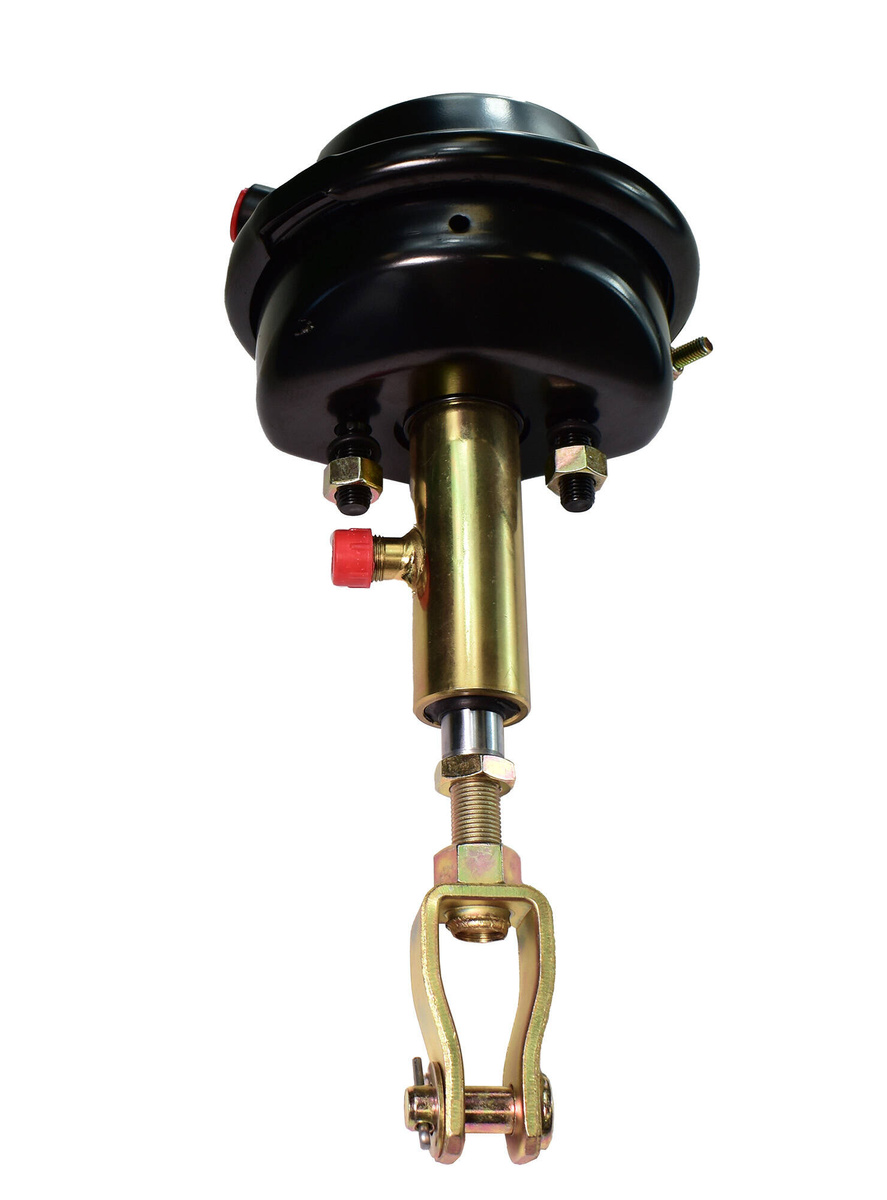

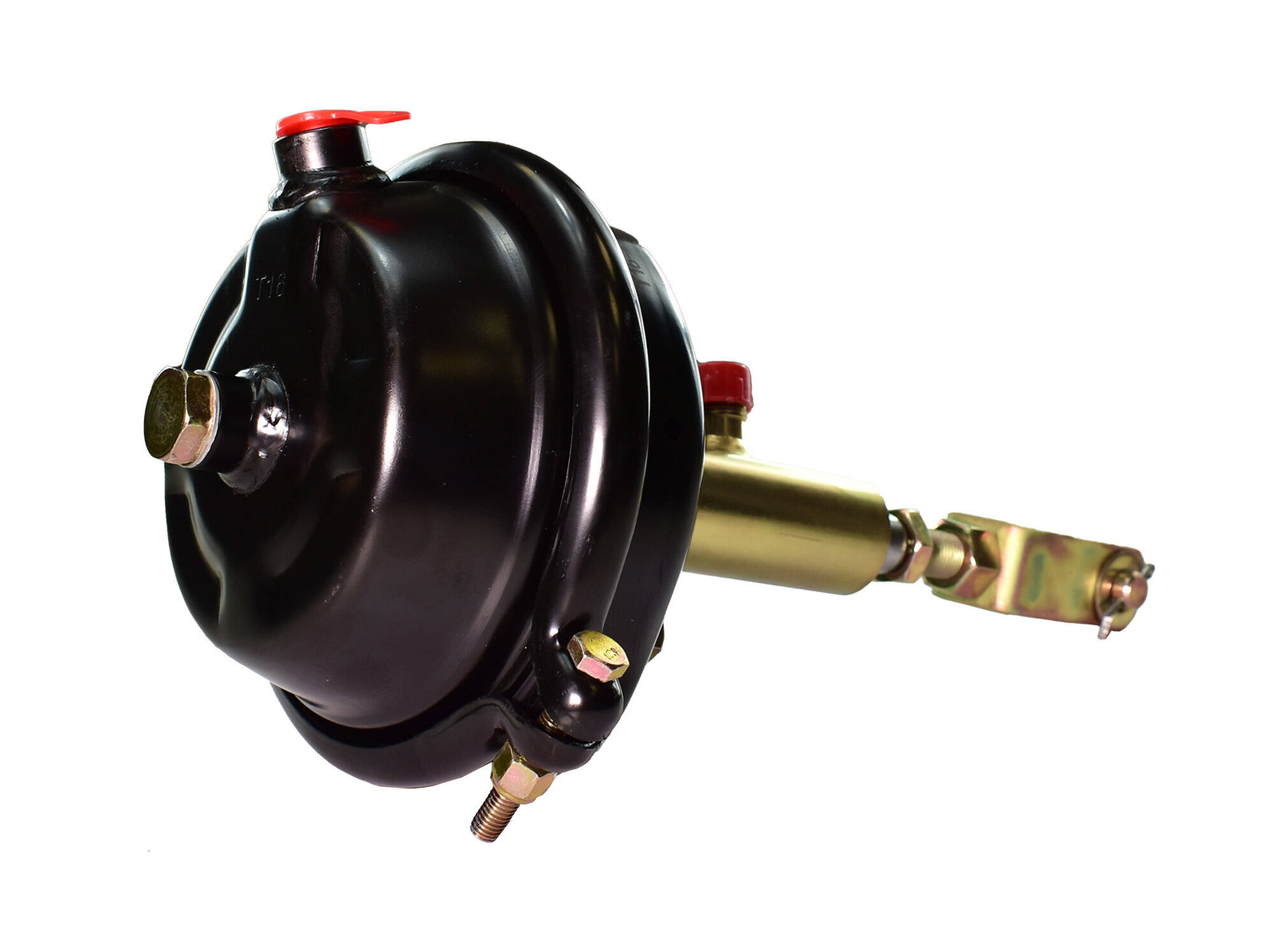

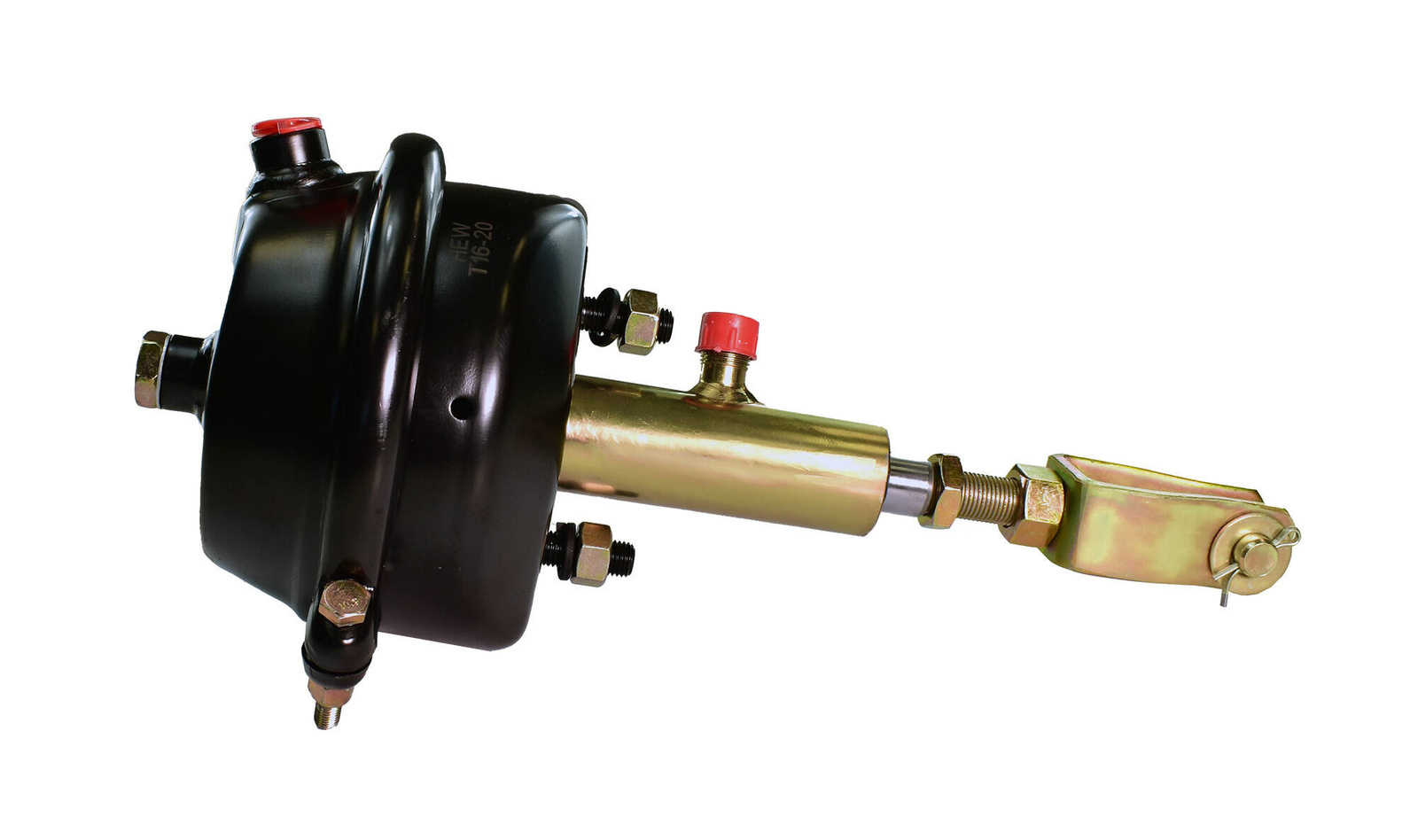

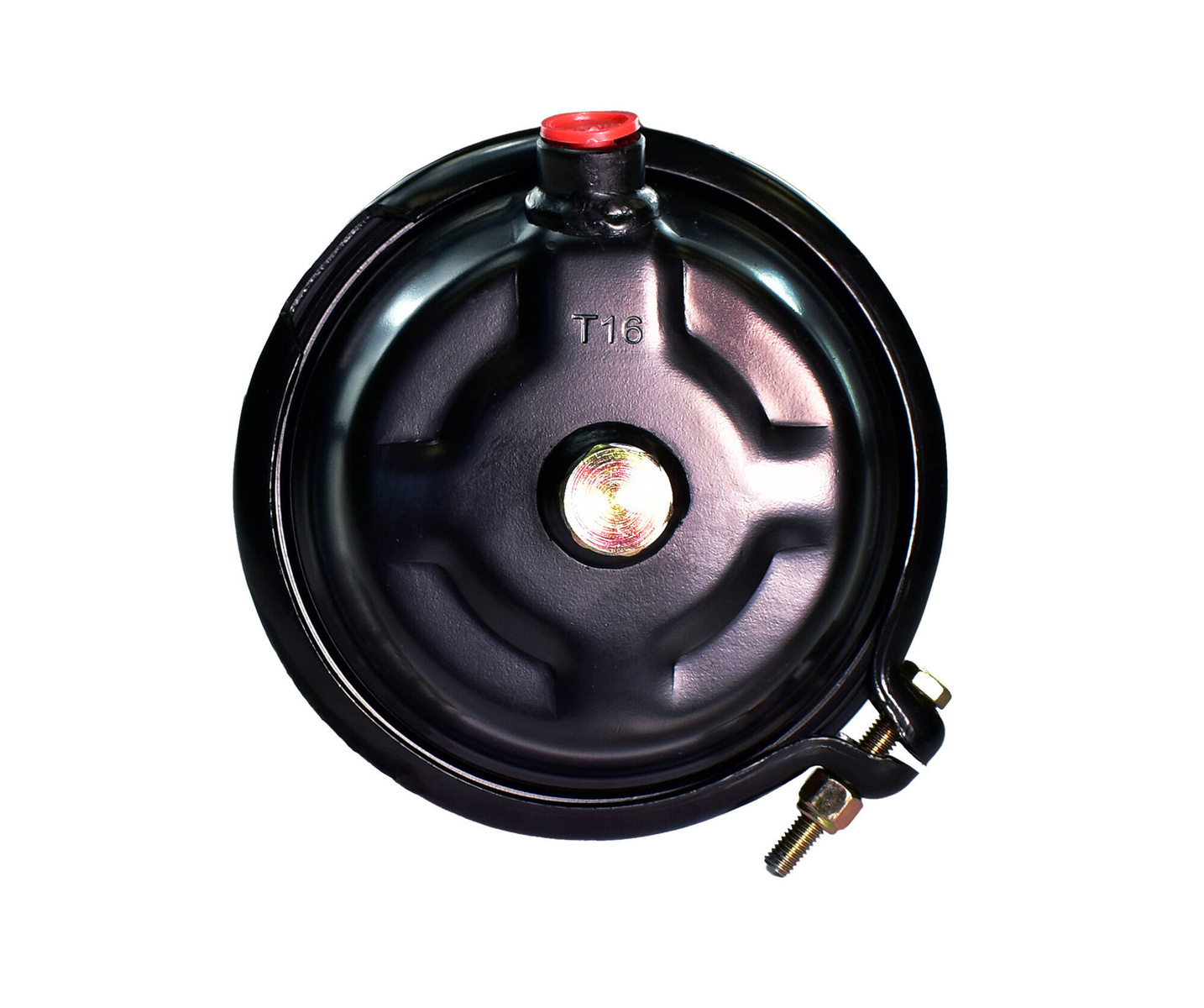

Cylinder hydraulic-pneumatic trailer brake T16-20

Designed for pneumatic and hydraulic control/braking without external spring cushioning.

Use for agricultural, construction, orchard, truck trailers, but also in specialized vehicles.

It is widely used in machines and equipment powered pneumatically or hydraulically

The advantage of cylinder is the short reaction time on impact and readiness for immediate use.

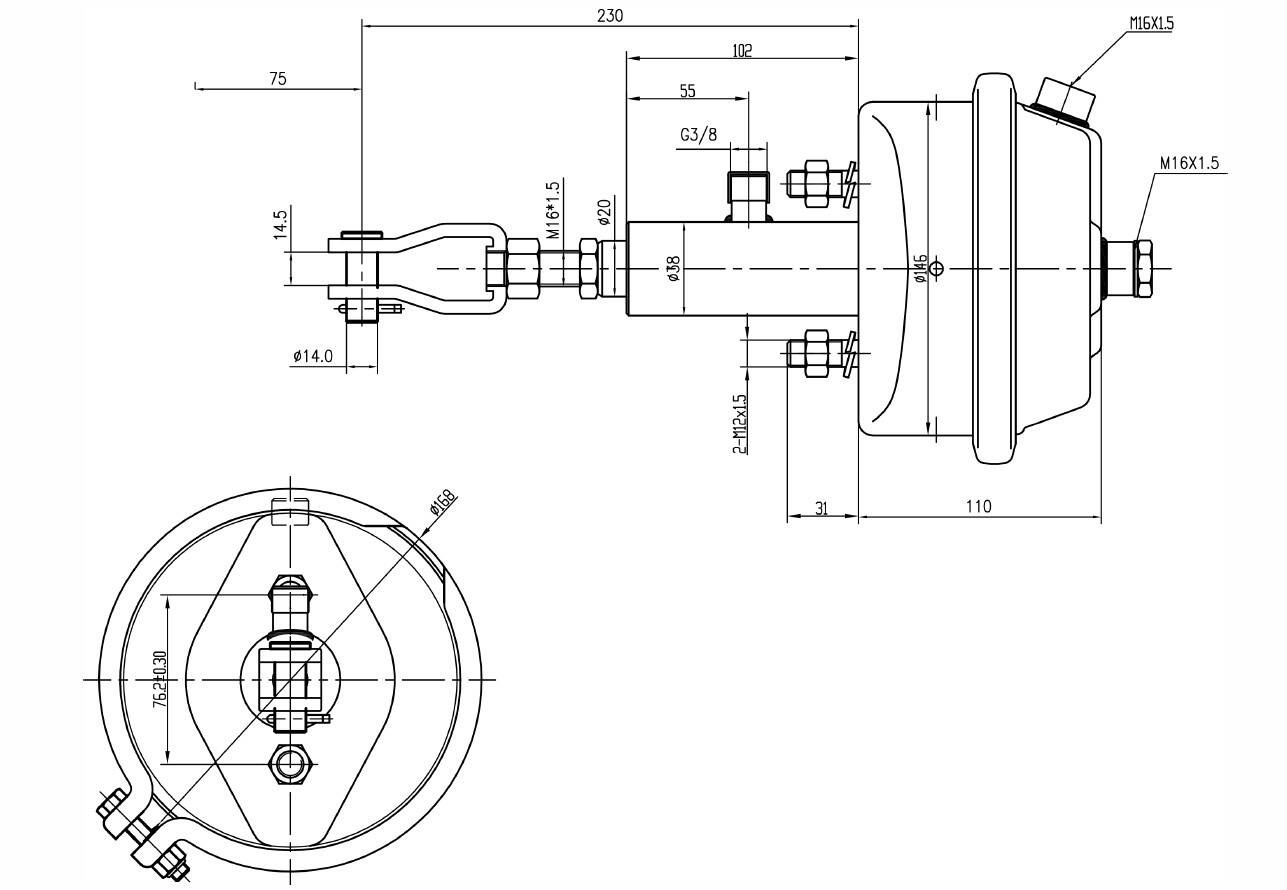

Technical data: Pneumatic line connection: 2x M16x1.5 Hydraulic line connection: BSP 3/8" Max. working pressure: 250 bar Rated pressure: 200 bar Maximum fork reach: 305mm Pin diameter on fork: 14mm Surface protection: galvanized Stroke piston rod: 75mm Weight: 4kg
