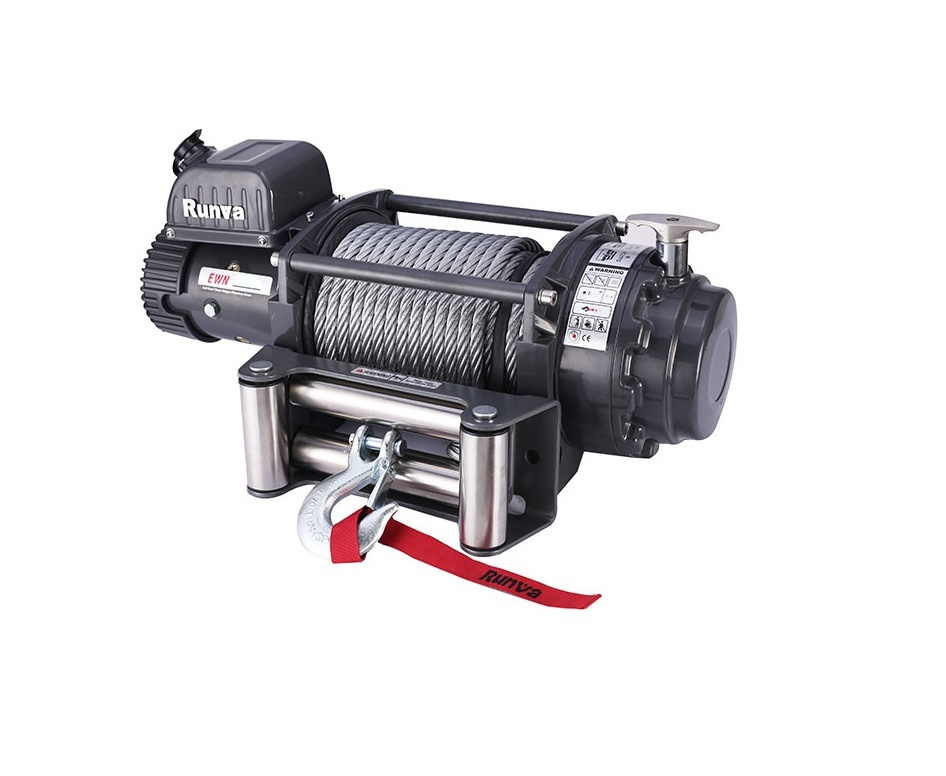

RUNVA Electric Winch EWN 20000U, 9 t, 24V
- RUNVA Electric Winch EWN 20000U, 24V
Electric winch designed to for hard work in the off-road vehicles and commercial vehicles. Very long life and high resistance to harsh environments.
SPECIFICATION
| Rated line pull | 12000 lb (5443 kg) |
| Motor | 12V wejście: 5.5hp(4.2kw) wyjście 4.0hp(3.0kw) |
| Gear reduction ratio | 402:1 |
| Cable | 13/32" x 87' (10.2mm x 26.5mm) |
| Drum size | 2.8" x 8.7" (72mm x 222mm) |
| Overall dimensions (LxWxH) | 22.6"x8.1"x9.9" (573 x 206 x 252mm) |
| Mounting bolt pattern | 10" x 4.5" (254mm x 114.3mm) |
| Net weight | 61kg |
Pull, speed, Amperes, Volts (first layer)
| Line pull (kg) | Line speed (m/min) | current (ampery) | ||||||||||||
|
||||||||||||||
Line pull and role capacity in layer
| Layer of cable | Rated line pull(kg) | Total rope on drum (m) |
| 1 | 5443 | 5.6 |
| 2 | 4445 | 12.5 |
| 3 | 3765 | 20.0 |
| 4 | 3266 | 26.5 |
