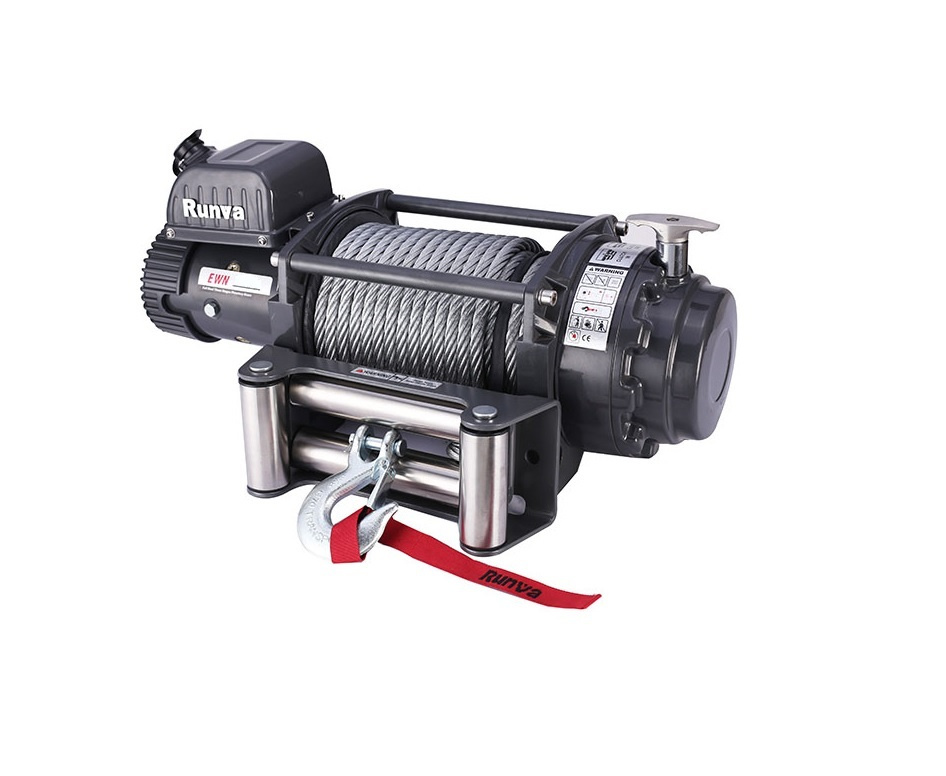

Runva electric winch EWN15000 (EWN 15.0N) - 6.8t - 12V
- Winch electric winch EWN15000 (15.0N) - 6800 kg of pull - 12V version Similar product to: DWT 15000 , PW 15000E .
The electric winch winch is designed for heavy-duty work on off-road and commercial vehicles. Very long service life and high resistance to harsh working conditions are its most important features. Thanks to the use of innovative technology and the most durable materials, it has a guarantee of the highest quality and efficiency, even in extreme working conditions.
The set includes:
- Winch,
- Guide,

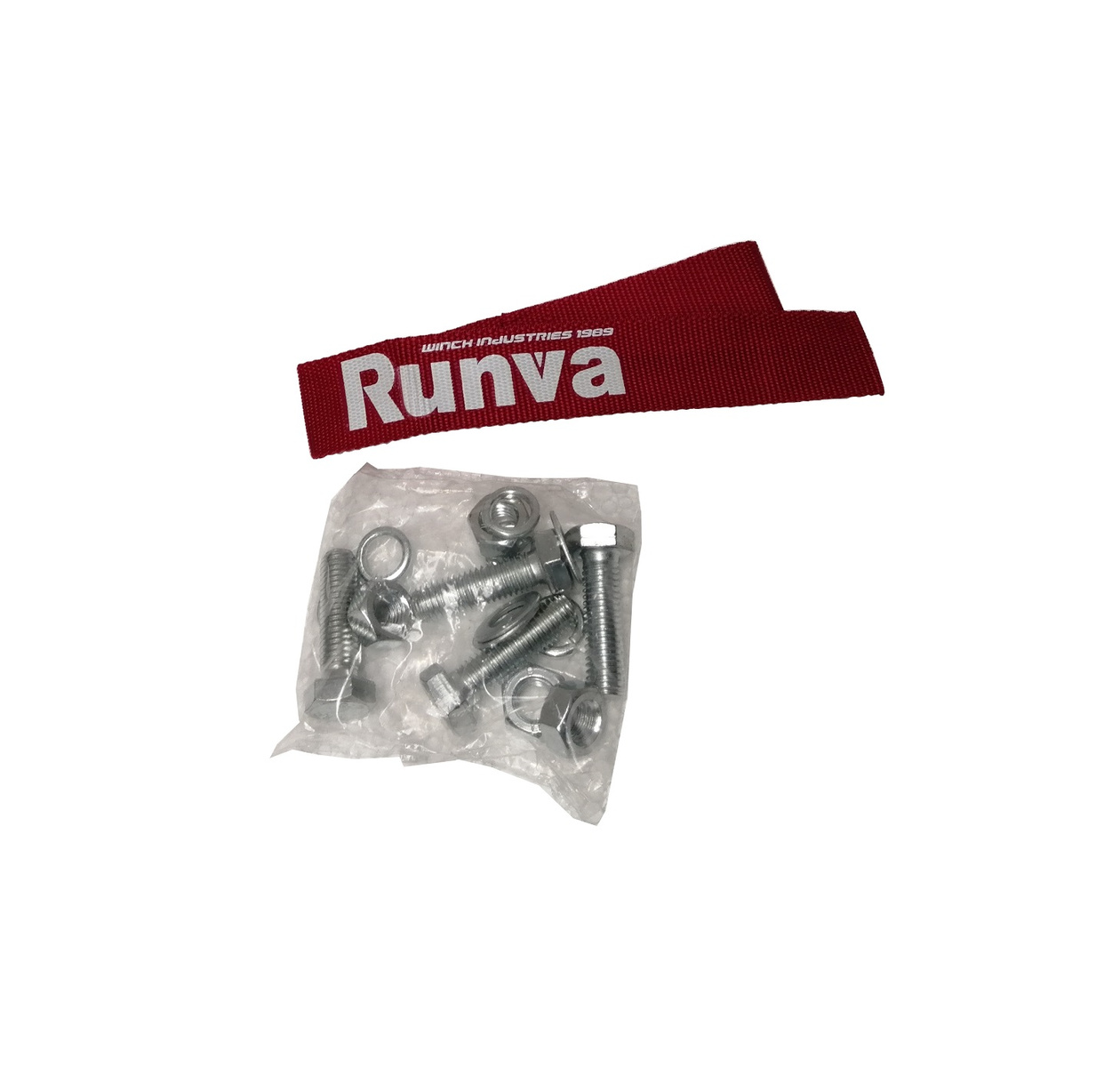

- Hook with strap,

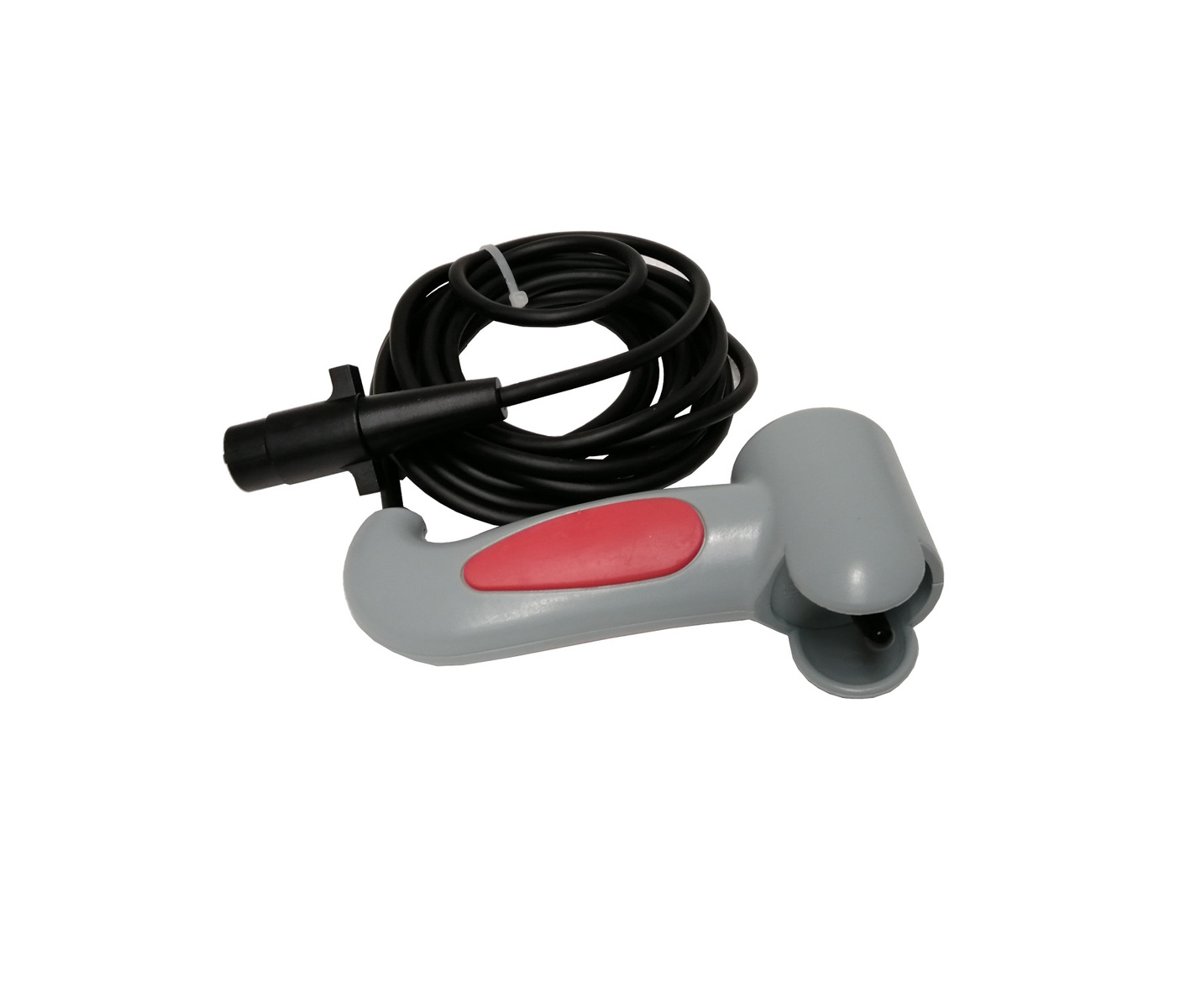

- Controller on cable,
- Screw set,

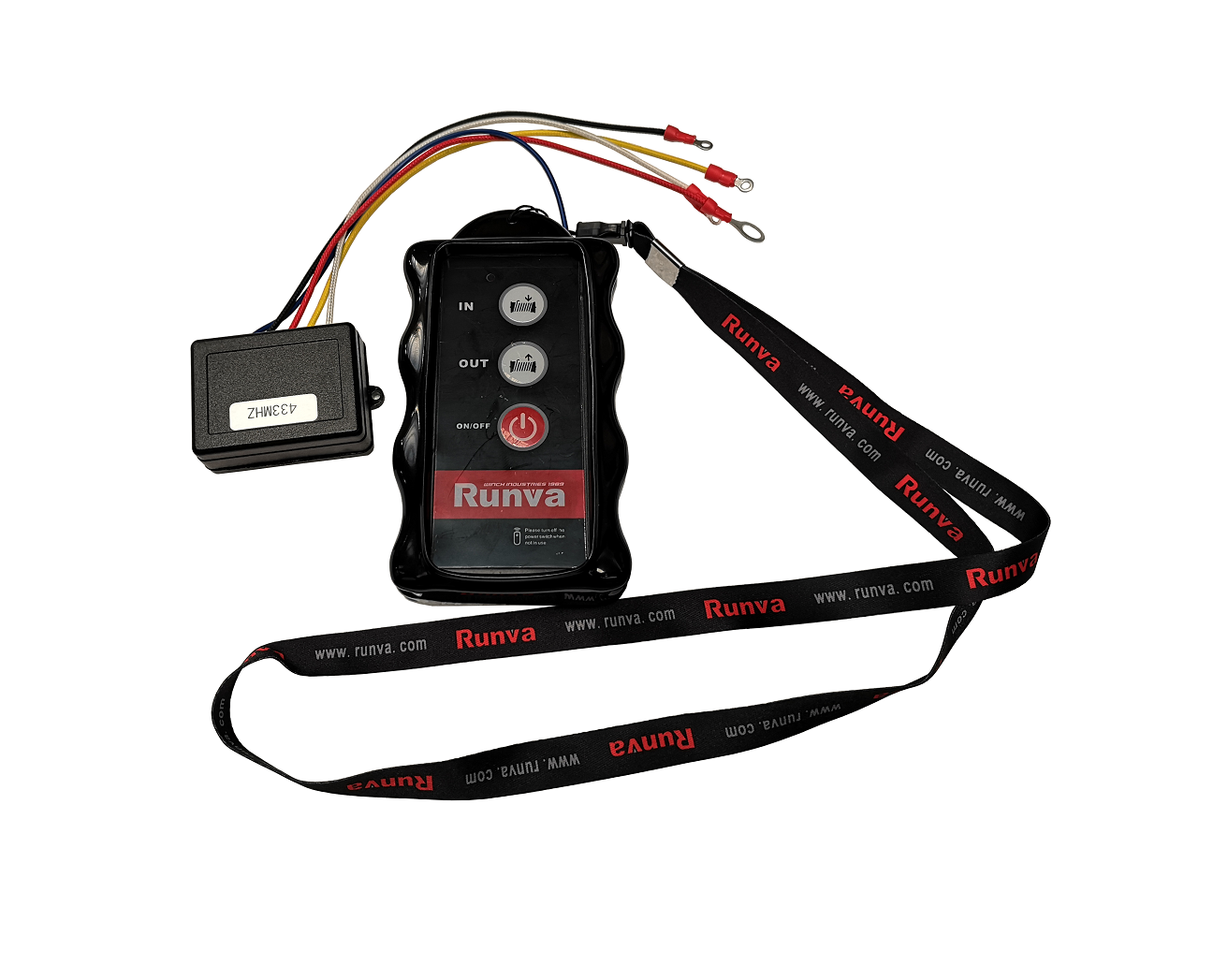

- Wireless remote control,
TECHNICAL SPECIFICATIONS
| Pulling capacity | 15000 lbs (6804 kg) |
| Hydraulic Motor | 12 V |
| Ratio | 450:1 |
| Rope | 11mm |
| Drum | 89mm x 217mm |

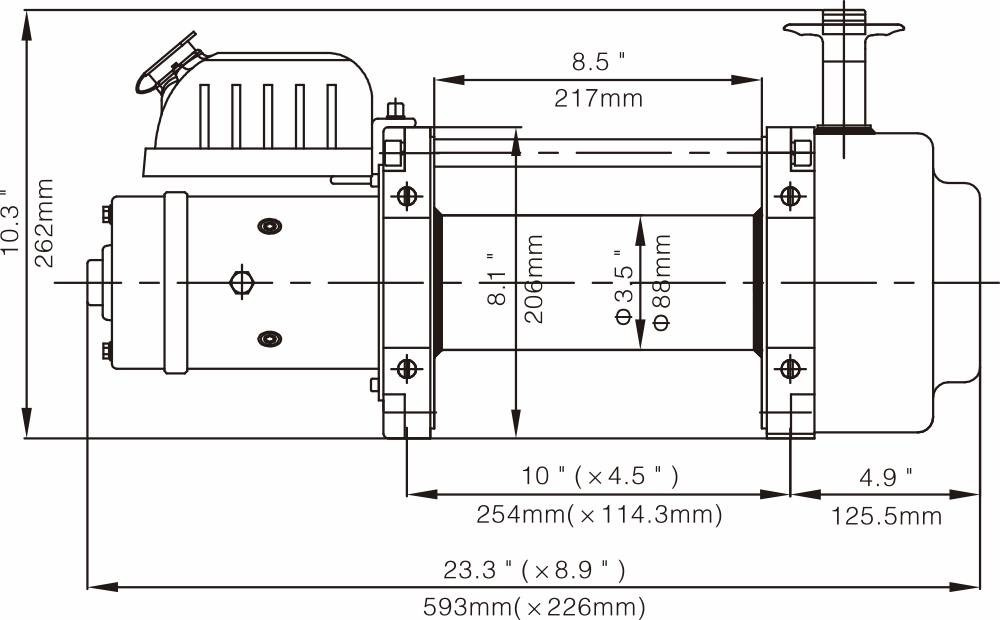

| Dimensions L x W x H. | 593 x 226 x 262mm |
| Mounting screw spacing | 254mm x 114.3mm |
| Weight | 73.8kg |
Rope retraction speed and current consumption
(first layer of rope on drum)
| Rope load (kg) | Rope speed (m/min) | Current consumption (ampere) |
| 0 | 4.6 | 90 |
| 3629 | 1.7 | 285 |
| 5443 | 1.37 | 340 |
| 6804 | 1.2 | 410 |
Pulling force depending on the rope layer
| Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
| 1 | 6804 | 6.0 |
| 2 | 5443 | 13.0 |
| 3 | 4581 | 21.0 |
| 4 | 3955 | 25.5 |
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
