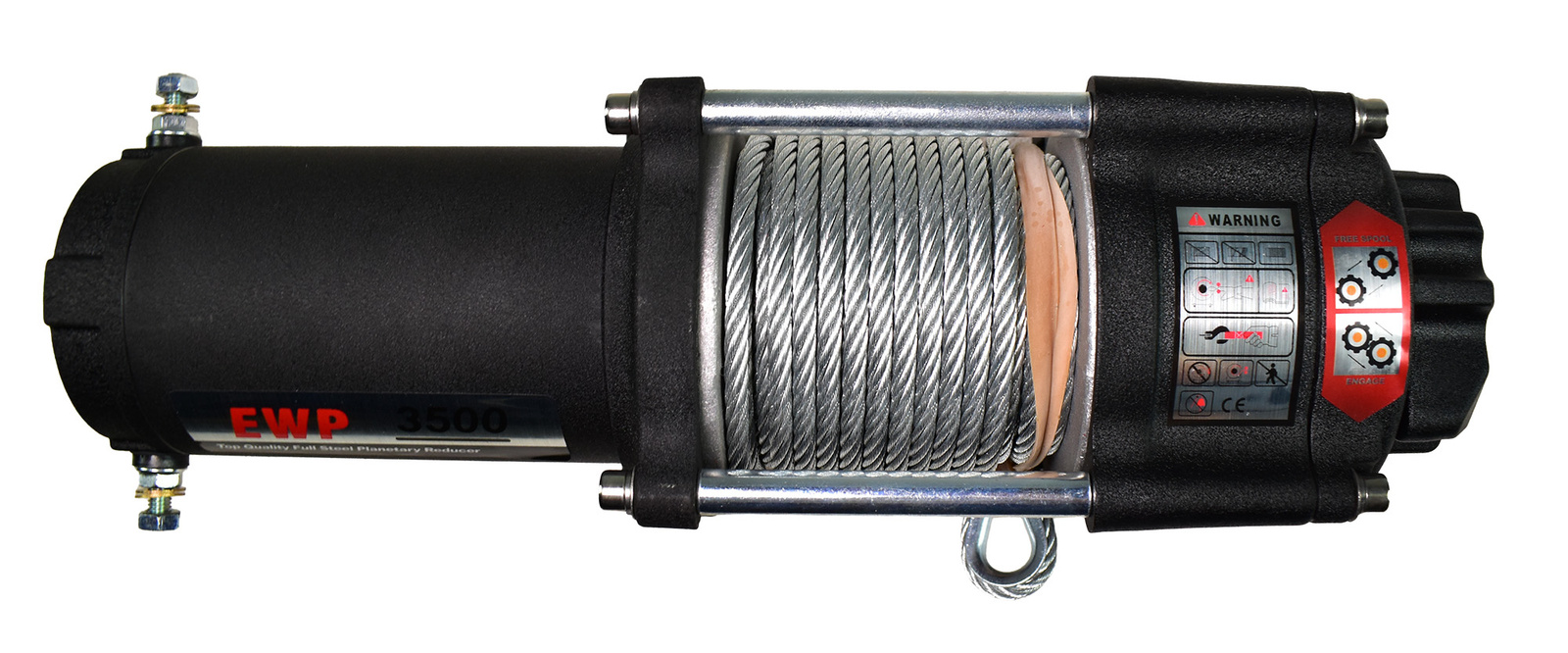

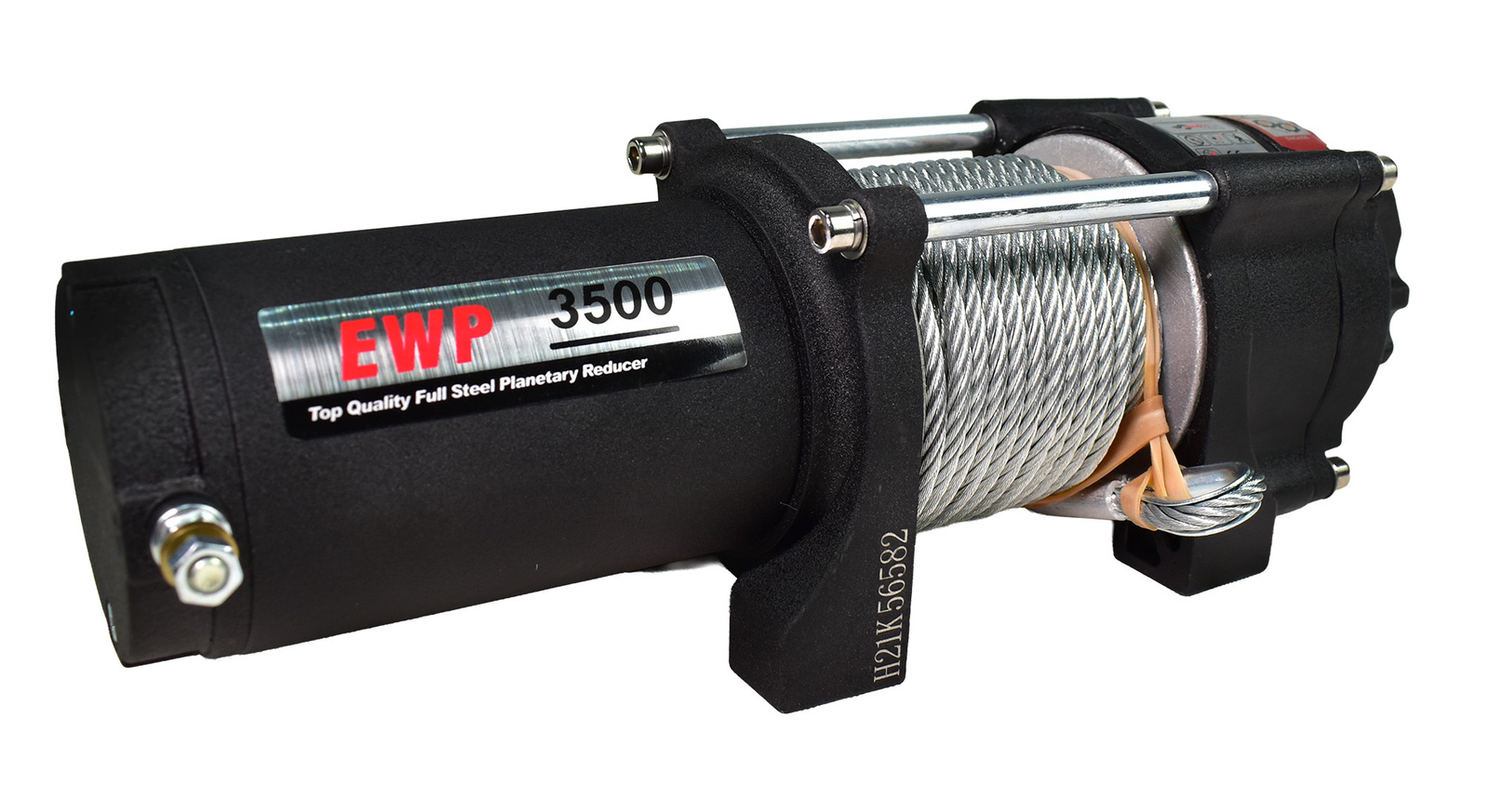

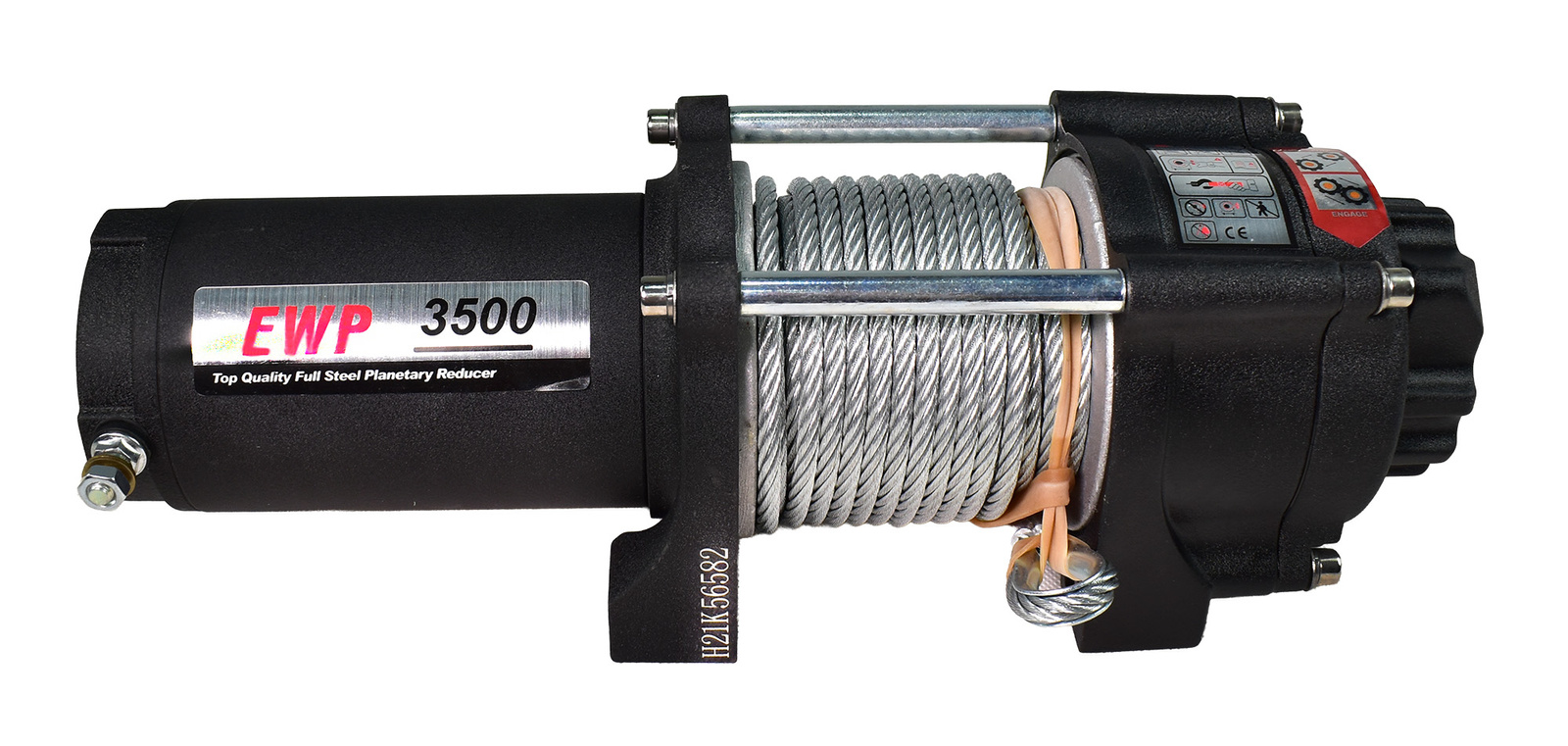

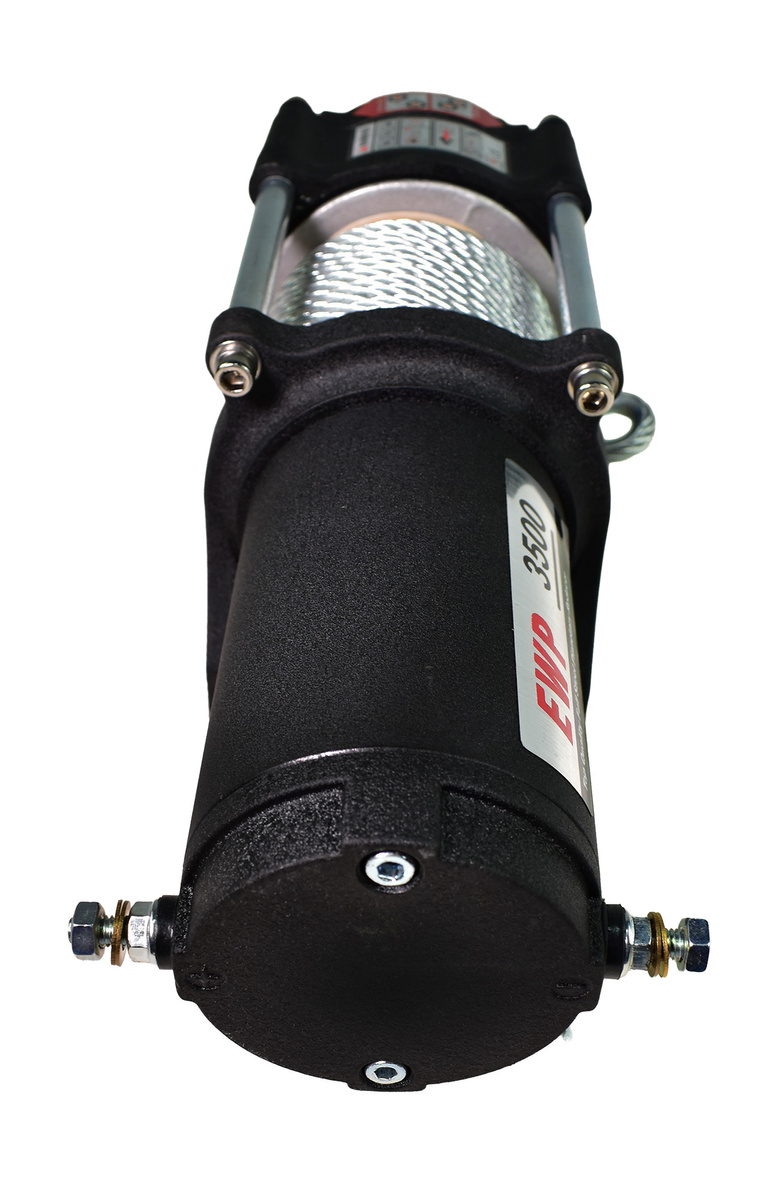

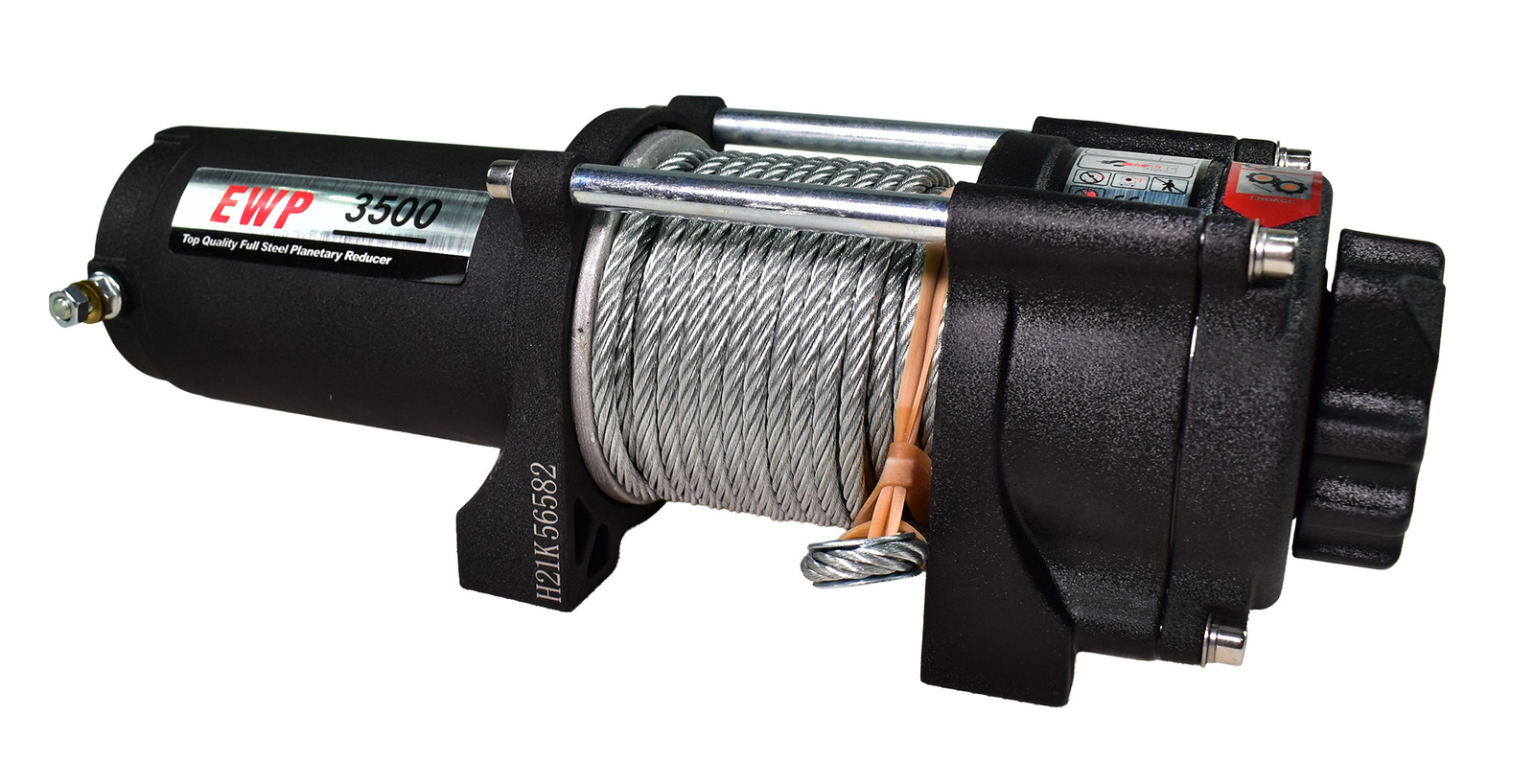

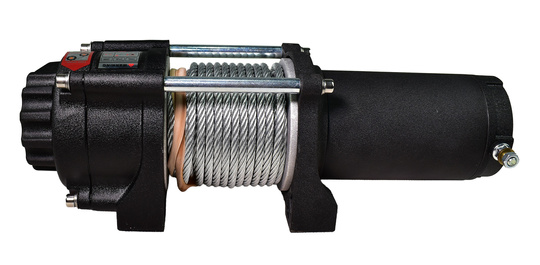

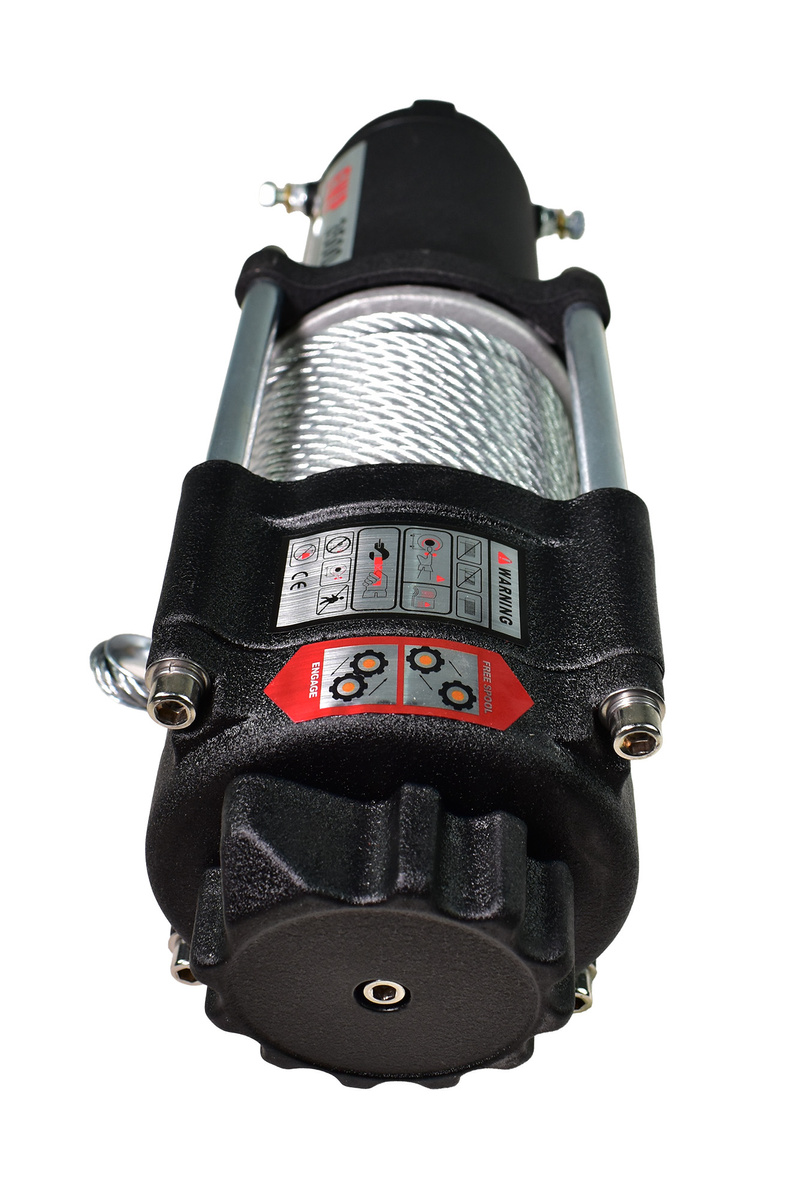

Runva EWP3500 12V electric winch (EWP 3.5P)
- Runva EWP3500 electric winch (EWP3.5P). Great for quads. Product similar to: DWM 3500 , DWH 3500 , PW 3500 .
The electric winch winch is designed for heavy-duty work on off-road and commercial vehicles. Very long service life and high resistance to harsh working conditions are its most important features. Thanks to the use of innovative technology and the most durable materials, it has a guarantee of the highest quality and efficiency, even in extreme working conditions.
The set includes:

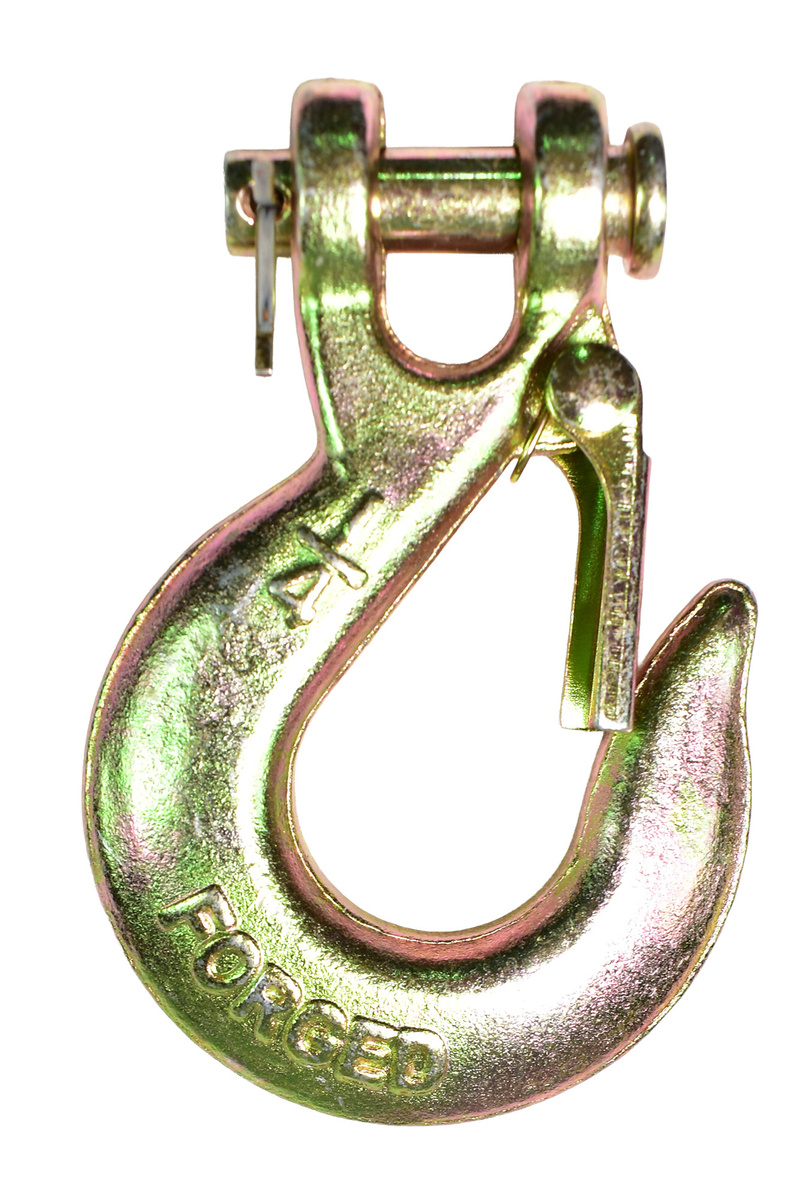

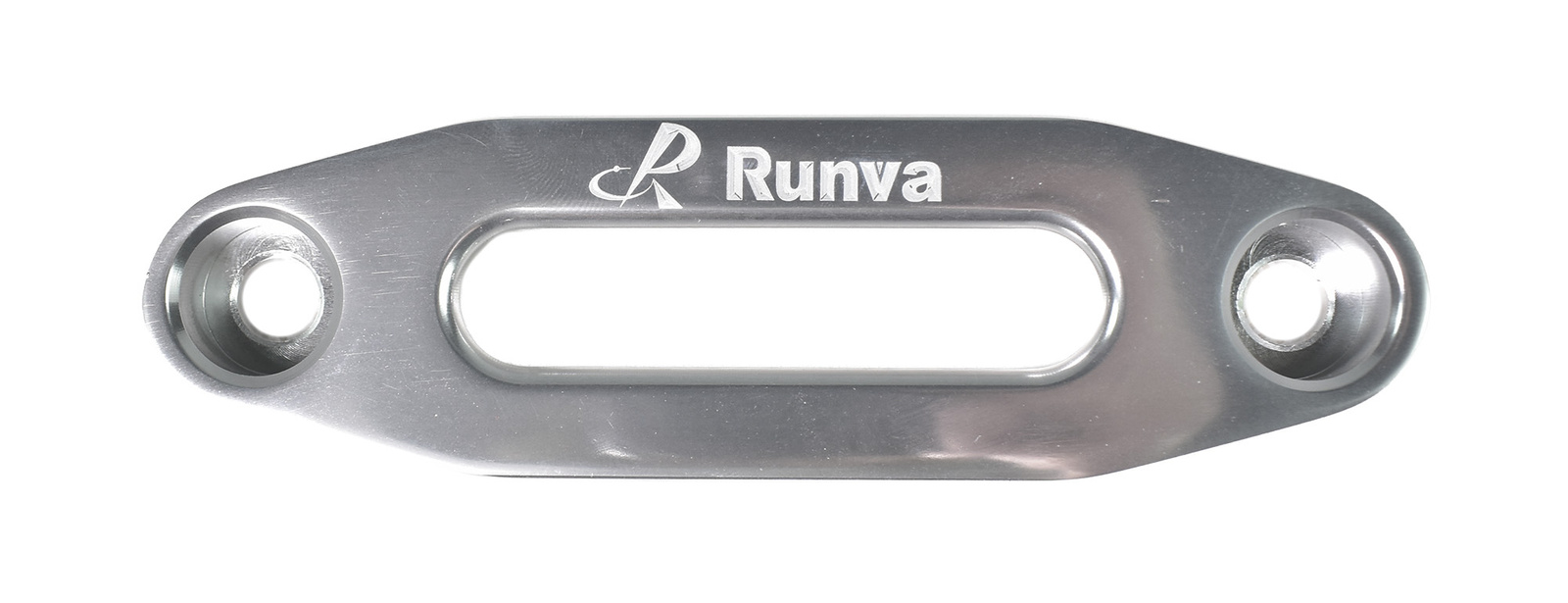

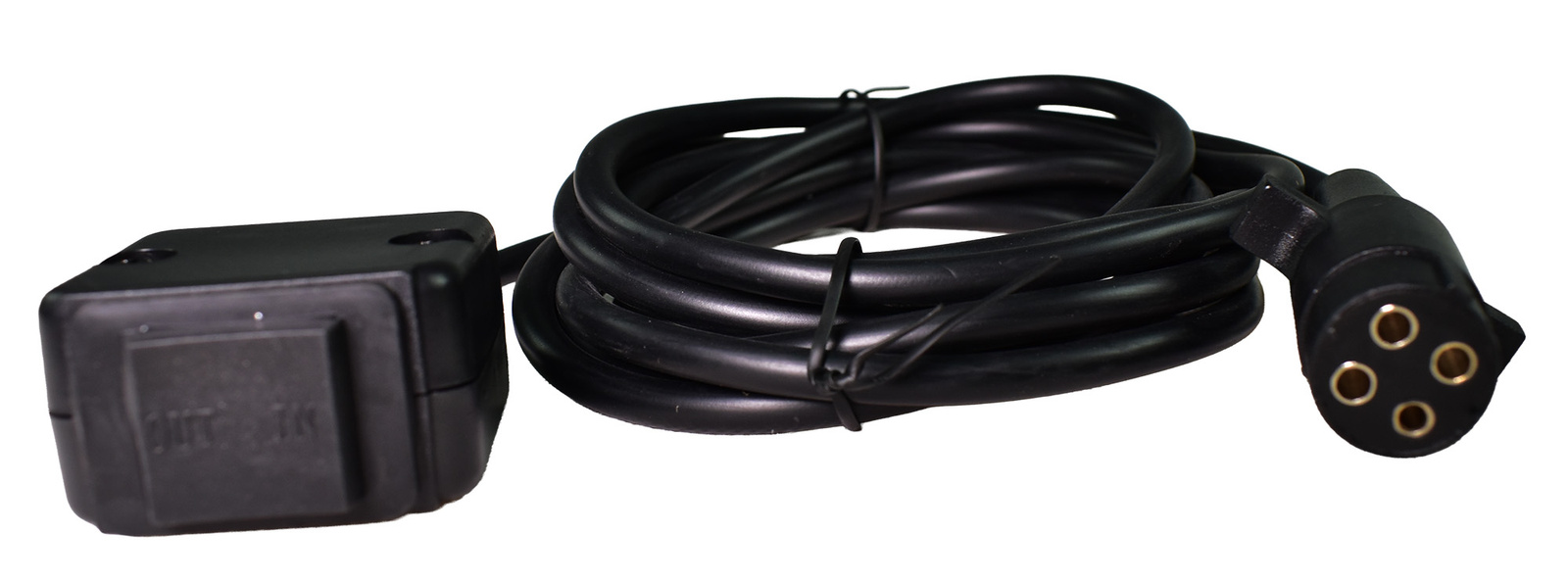

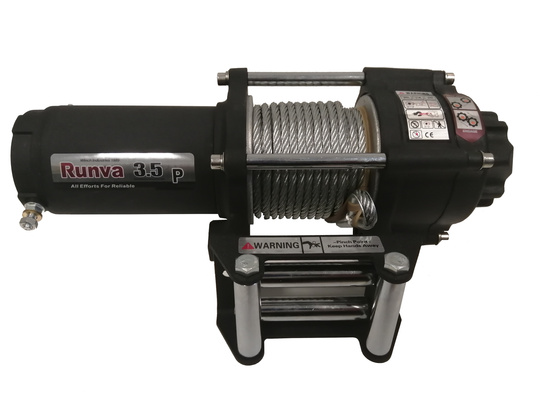

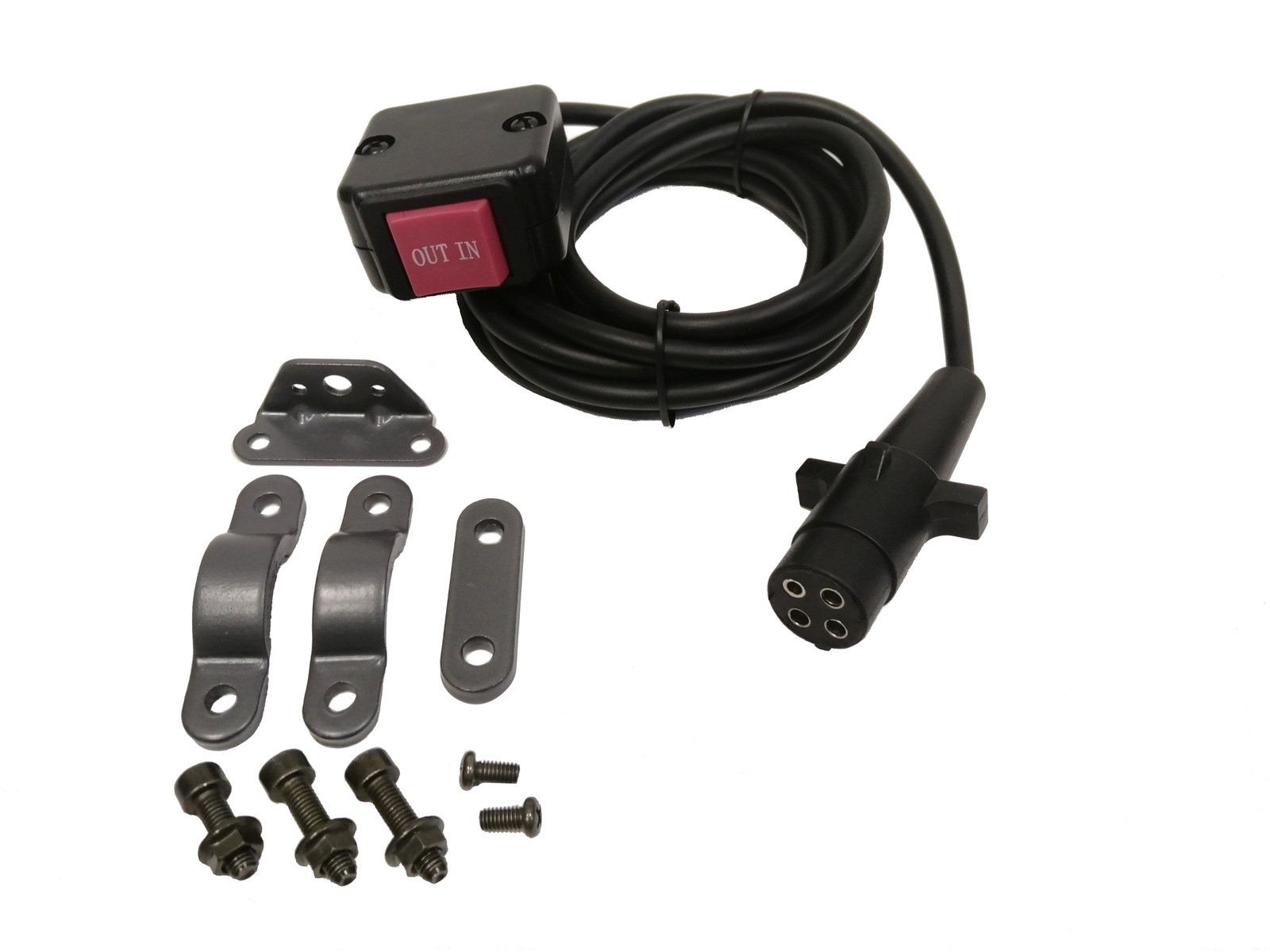

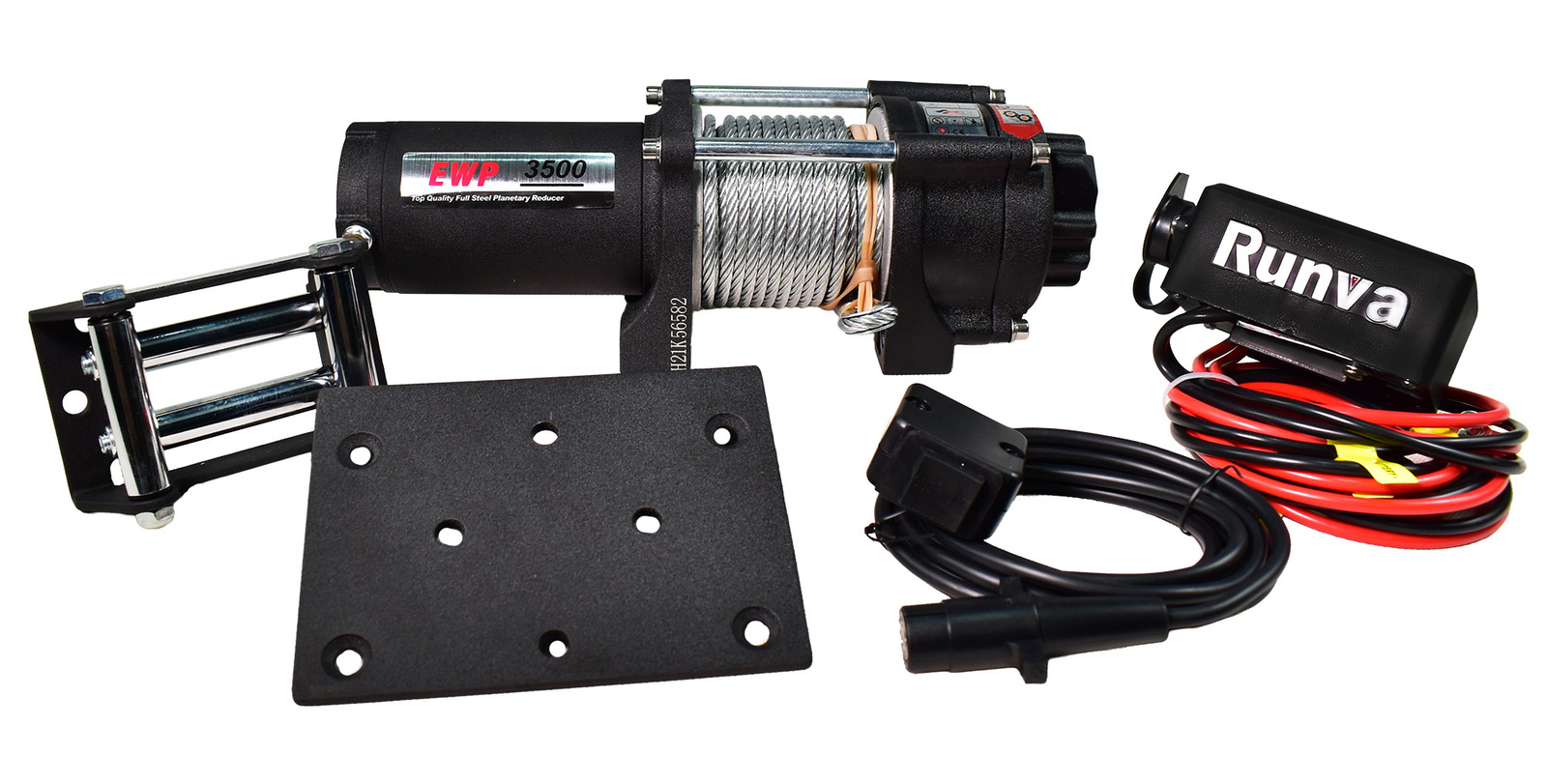

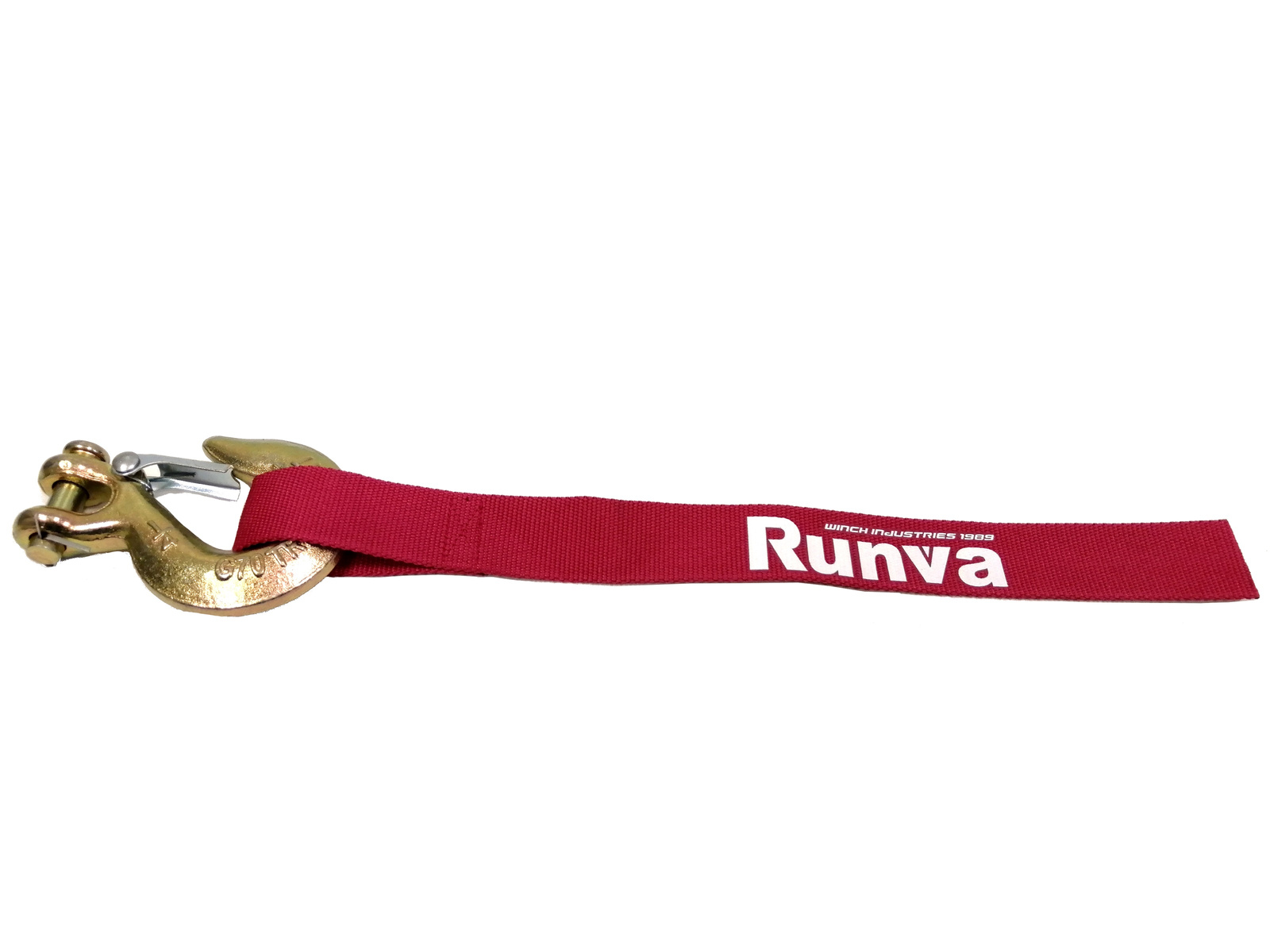

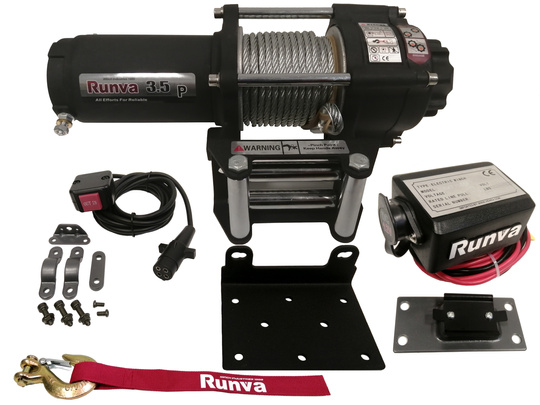

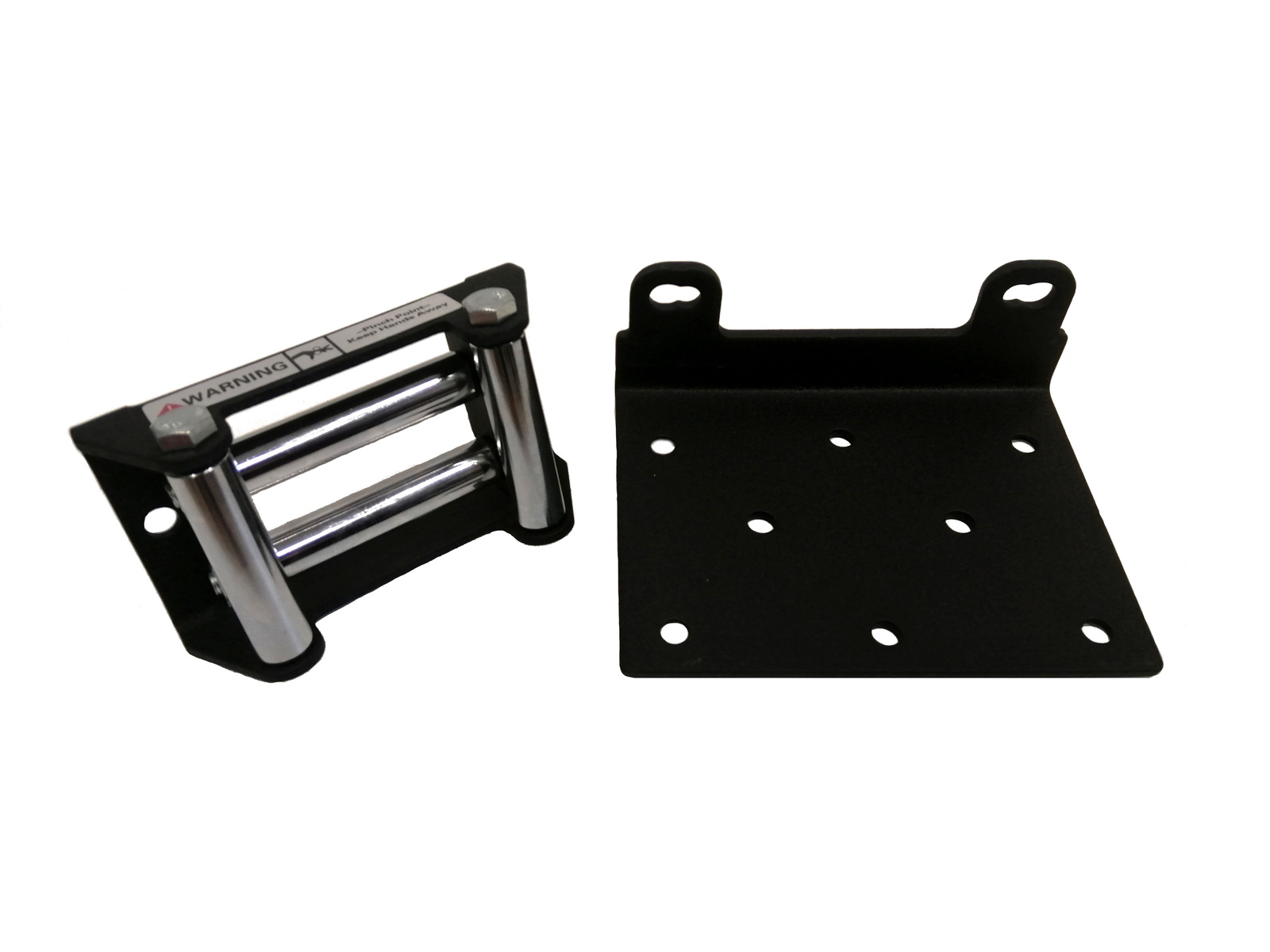

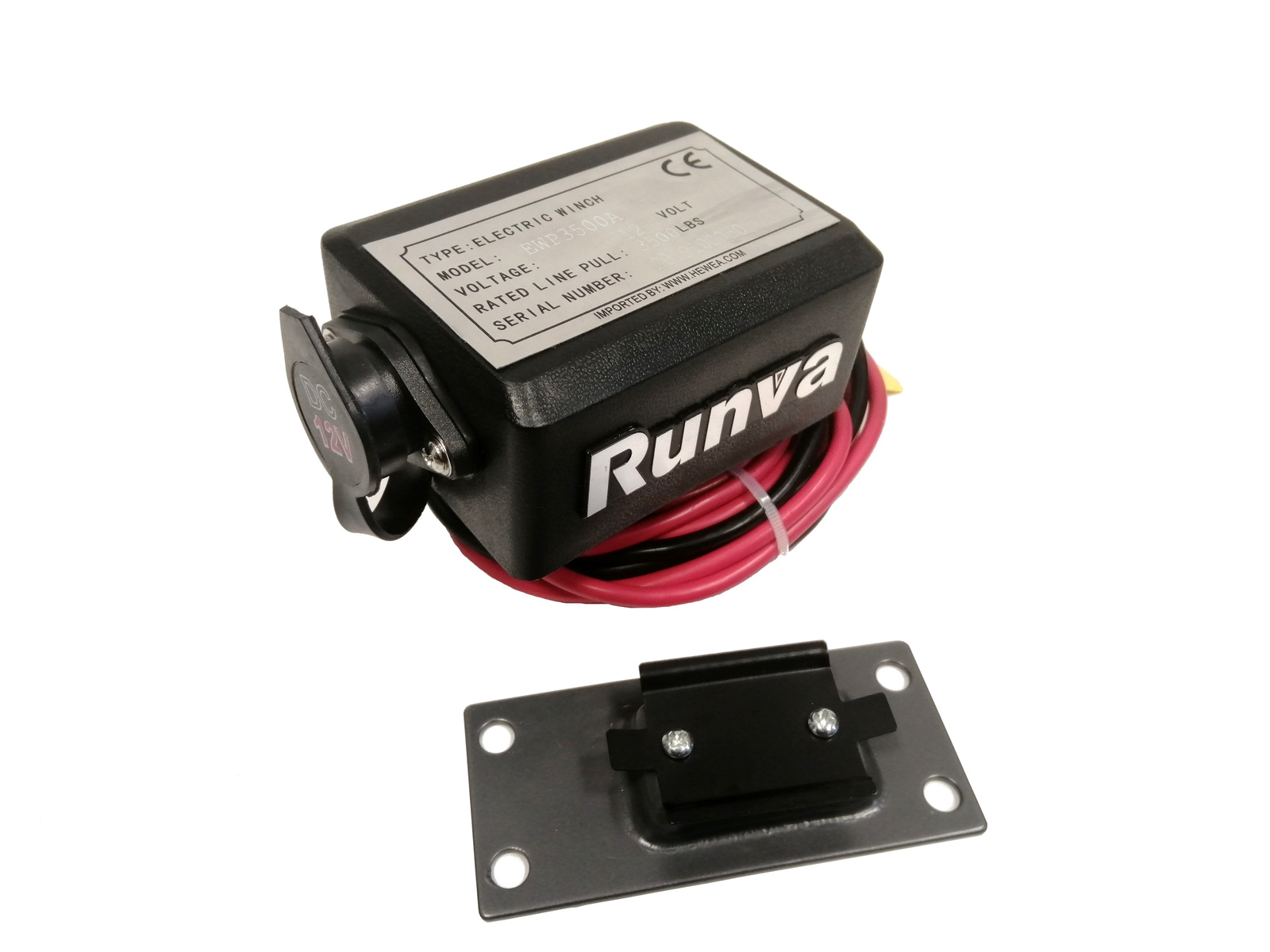

- RUNVA EWP3500 ascender: wired remote control, roller rope guide, steel rope ended with a caoutchouc wound on the ascender, hook, mounting screws, mounting plate, control box with connecting cables,
TECHNICAL SPECIFICATIONS
Pulling capacity | 3500 lbs (1588 kg) |
Hydraulic Motor | 12V input: 3.2hp(2.4kw) output 1.3hp(1.0kw) |
Ratio | 170:1 |
Rope | 5.4mm x 12.8mm |
Reel | 37mm x 80mm |
Dimensions L x W x H. | 335 x 116 x 112mm |
Mounting screw spacing | 124mm x 76mm |
Weight | 10kg |
Rope retraction speed and current consumption
(first layer of rope on drum)
Rope load (kg) | Rope speed (m/min) | Current consumption (ampere) |
0 | 3,2 | 20 |
454 | 2,7 | 75 |
907 | 2,3 | 130 |
1588 | 1,4 | 200 |
Pulling force depending on the rope layer
Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
1 | 1588 | 1,8 |
2 | 1265 | 4,1 |
3 | 1052 | 6,7 |
4 | 900 | 9,5 |
5 | 786 | 12,8 |
Product similar to:DWM 3500 , DWH 3500 , PW 3500 .
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
