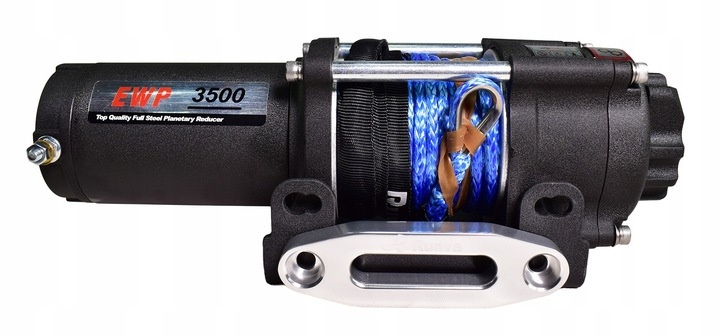

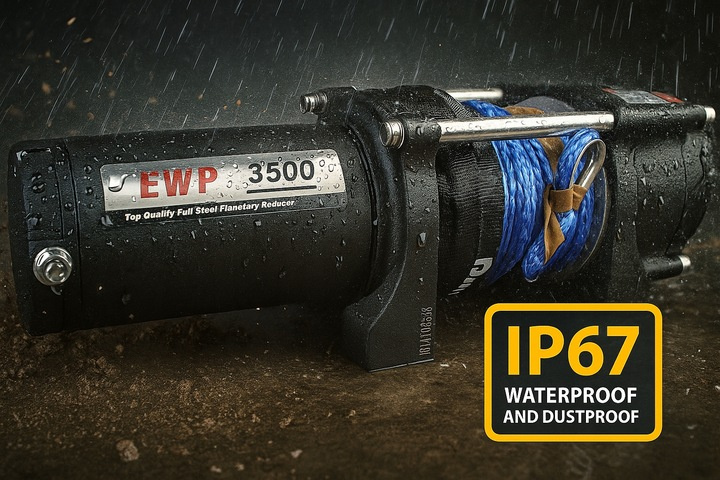

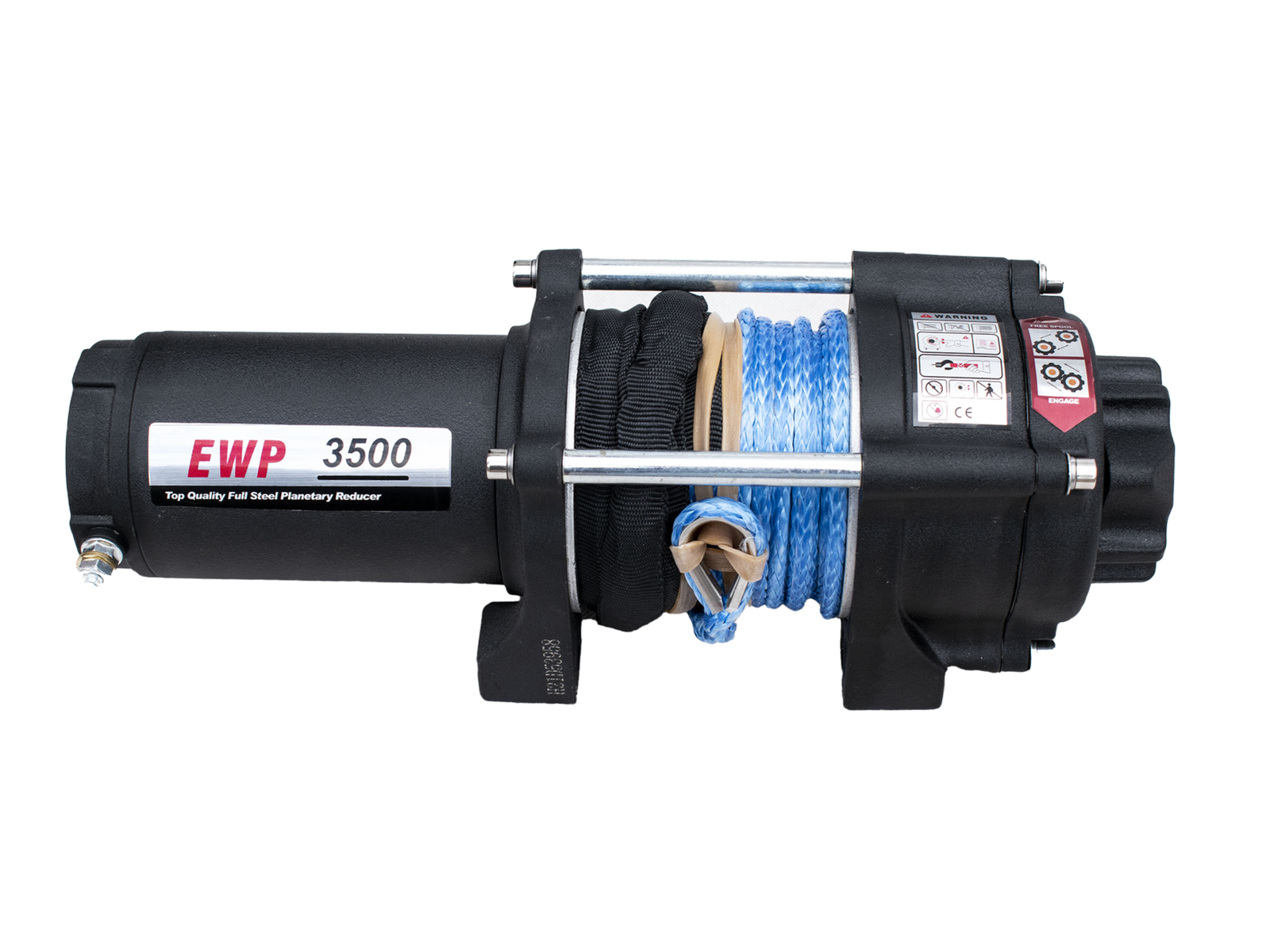

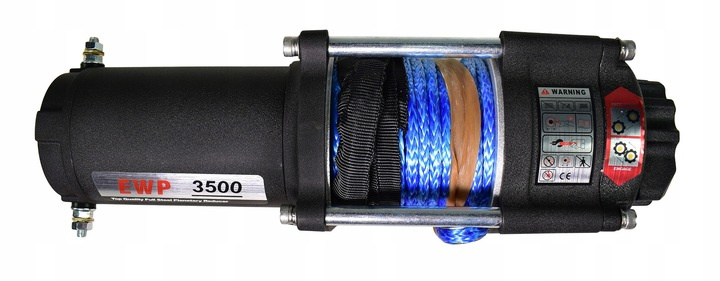

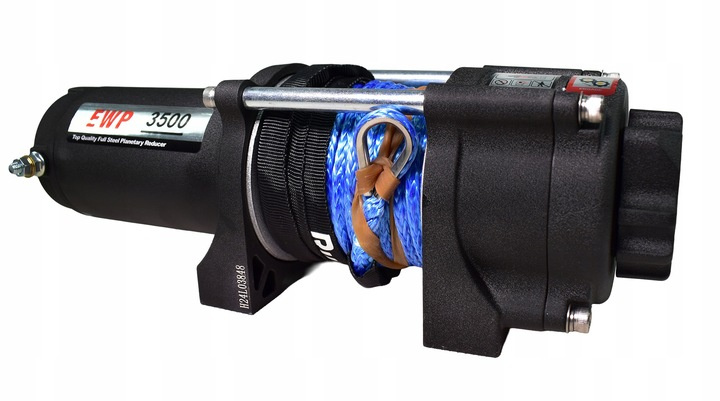

RUNVA Electric Winch EWP3500 12V (EWP 3.5P), synthetic cable
- RUNVA Electric Winch EWP3500 12V (EWP 3.5P). Best for quads. Product similar to DWM 3500 , DWH 3500 , PW 3500 .
RUNVA Electric Winch EWP3500 12V (EWP 3.5P). Best for quads.

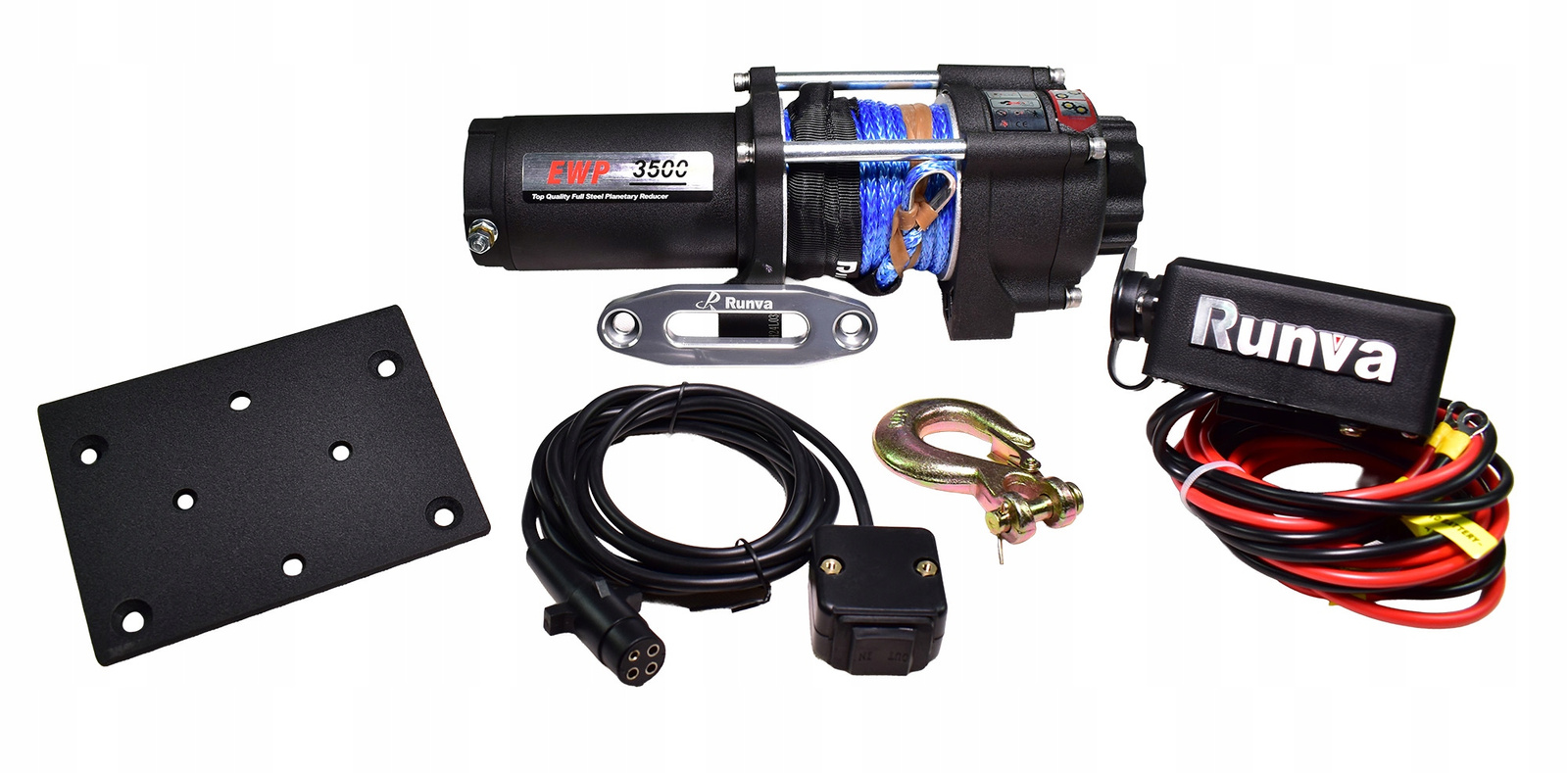

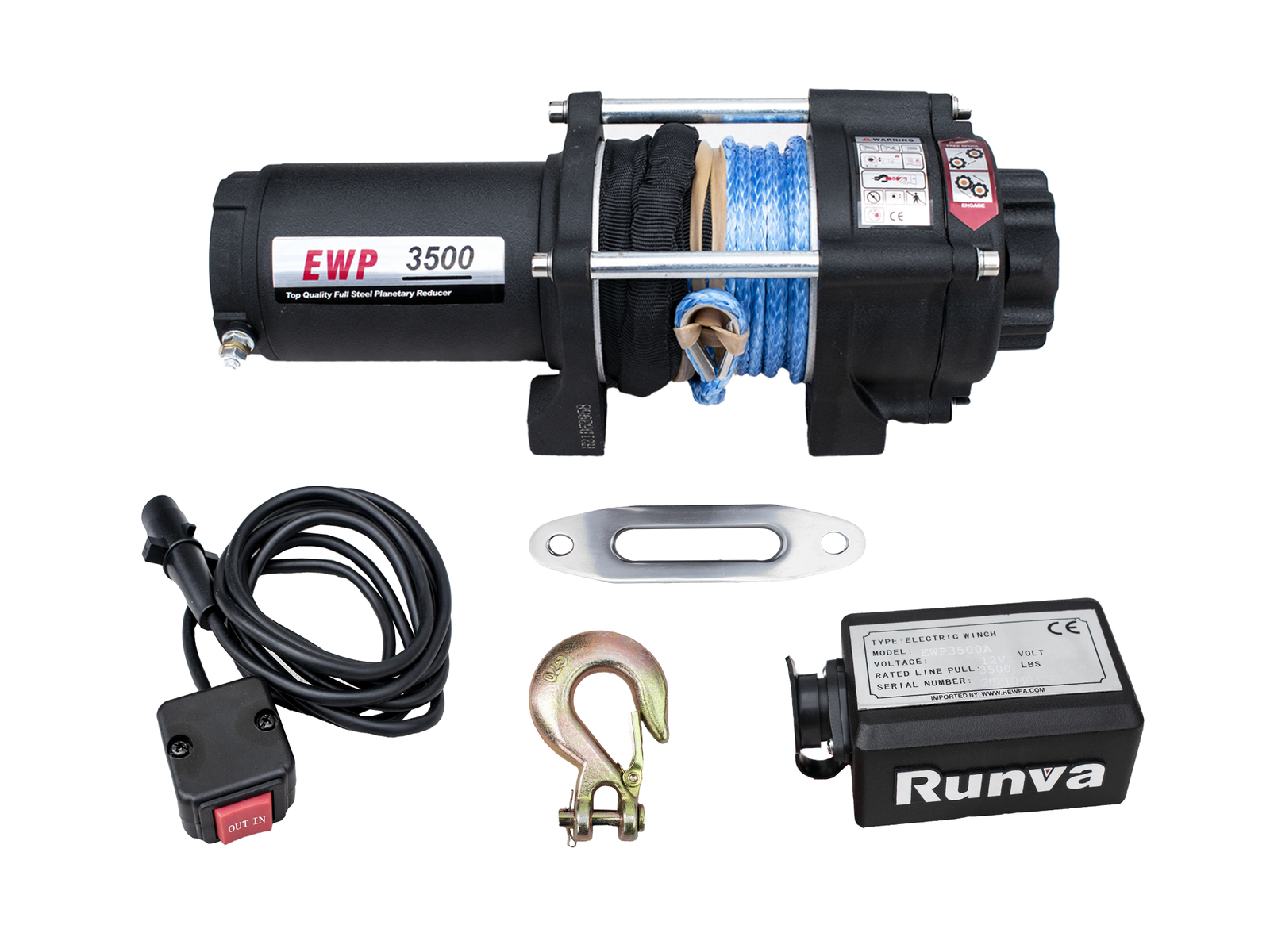

The set includes:
• roller fairlead

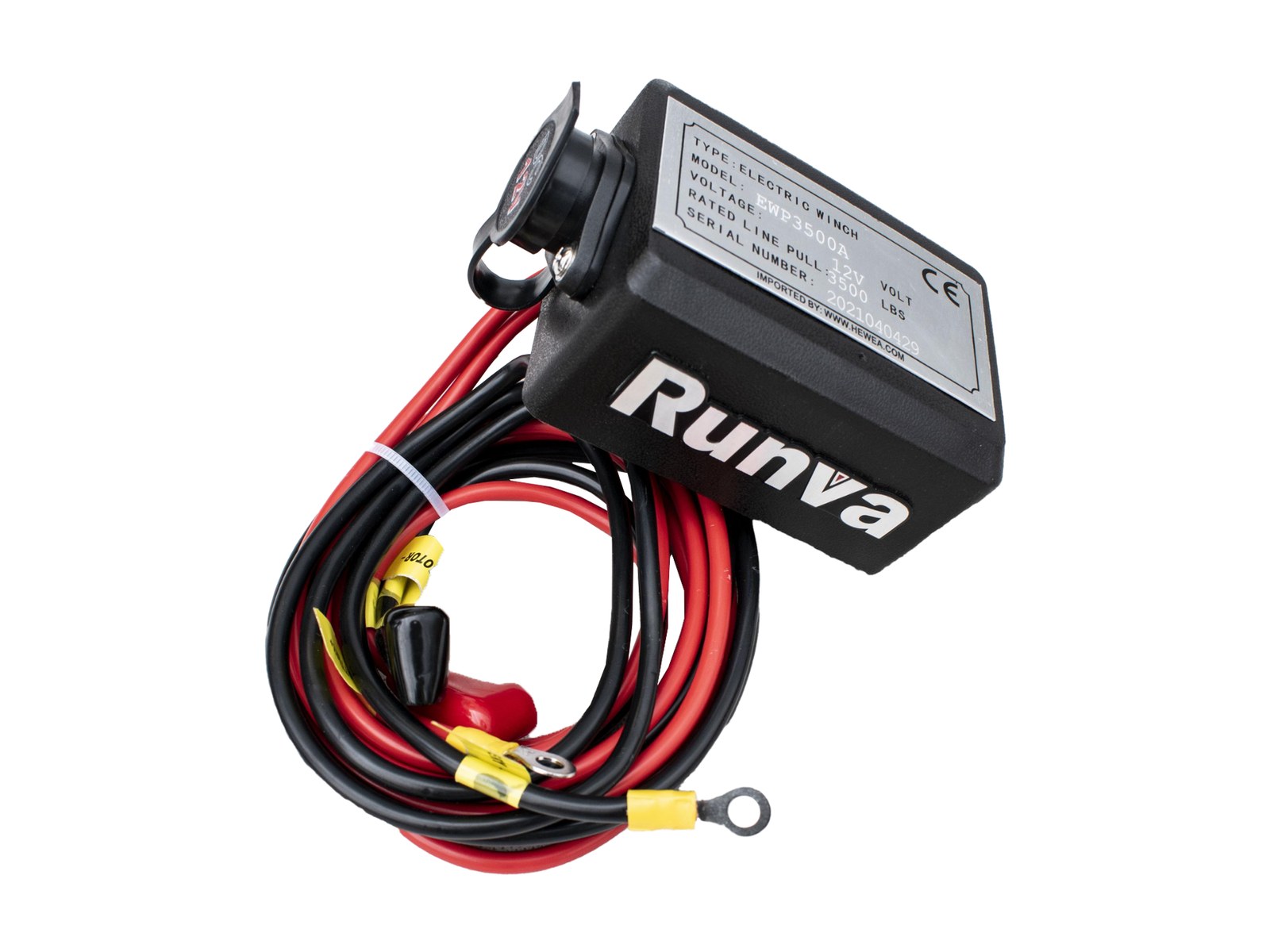

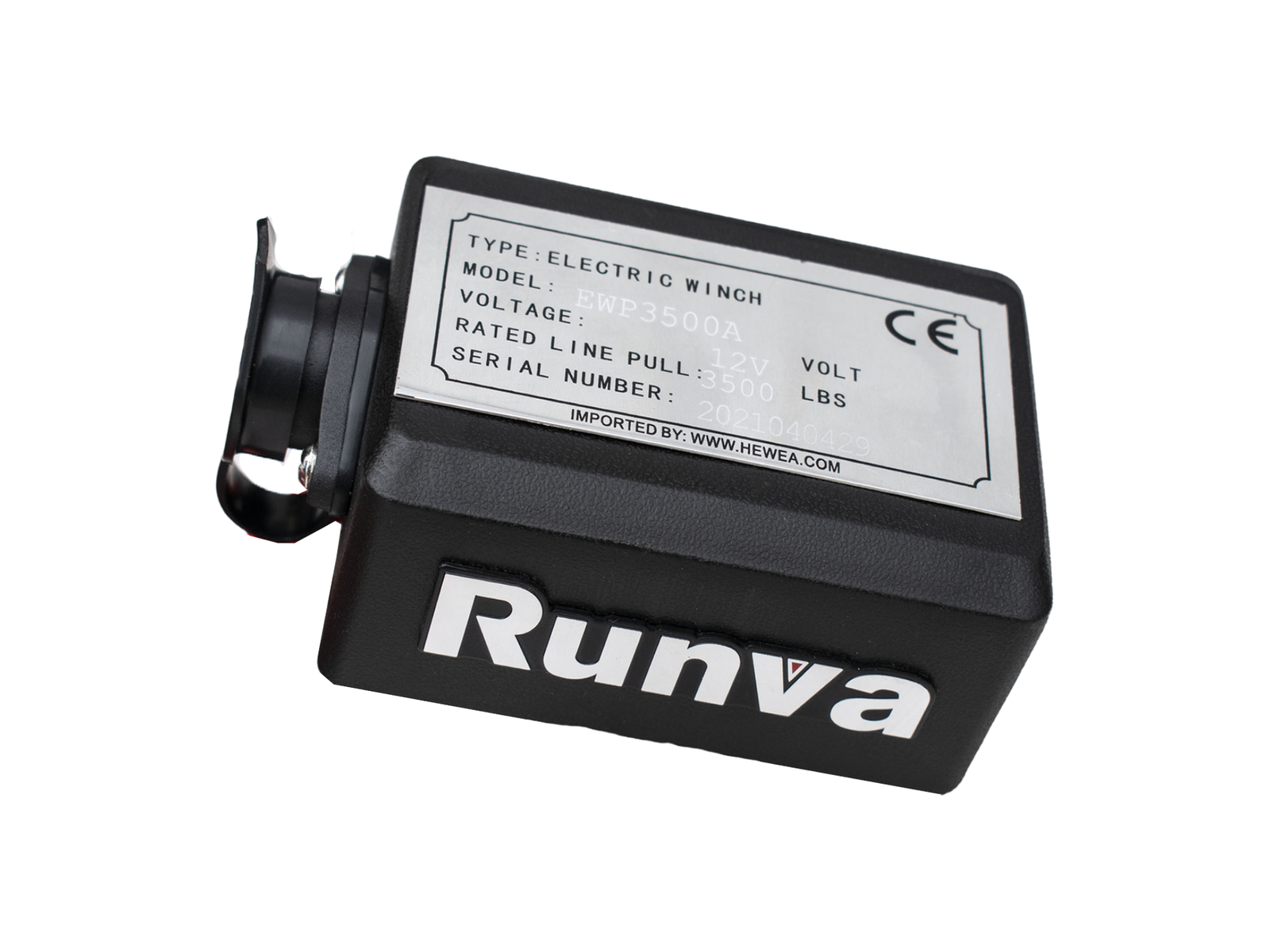

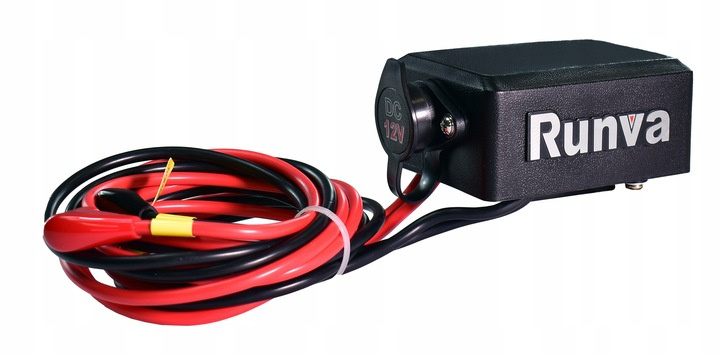

• control box
• synthetic cable

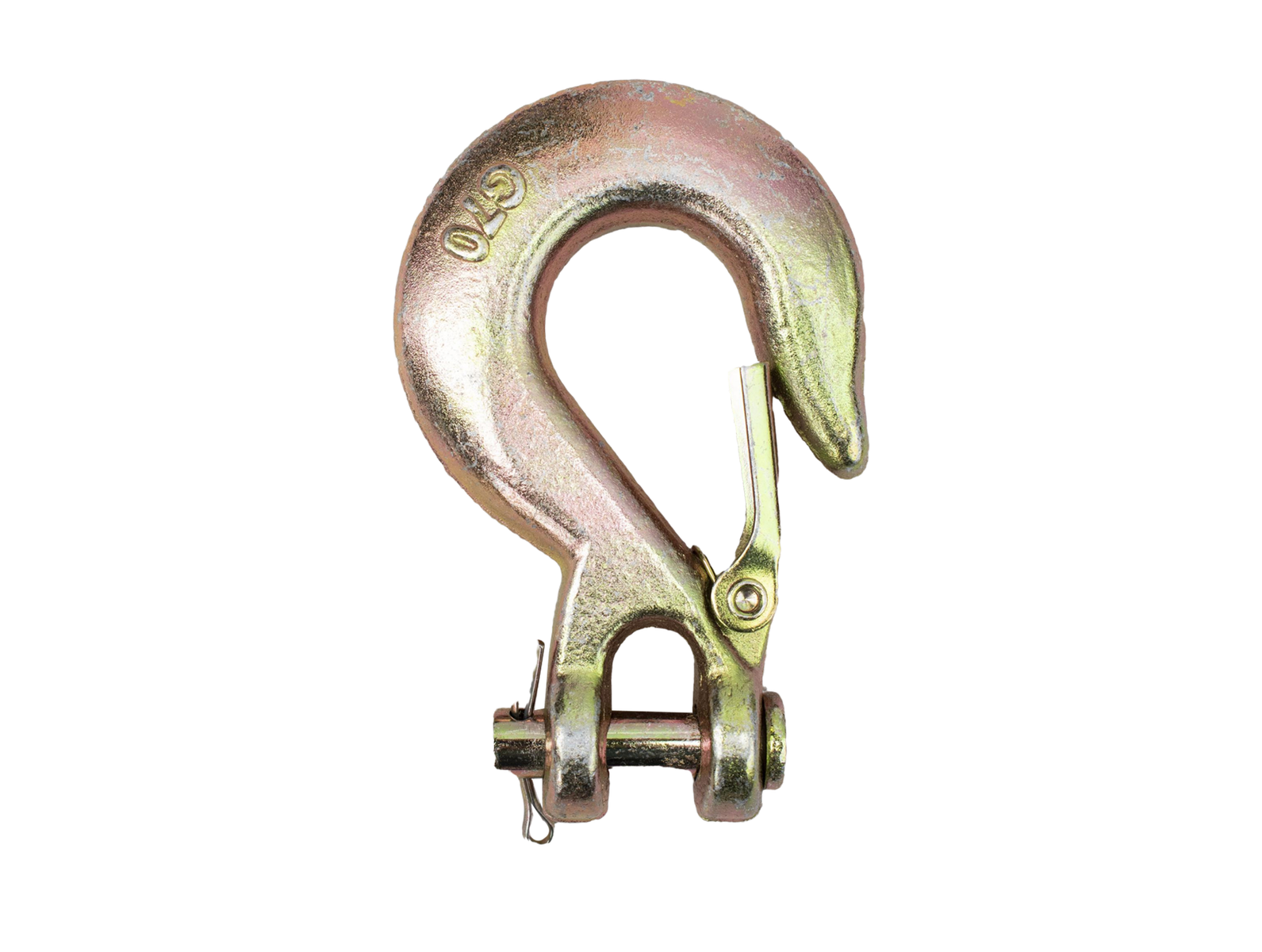

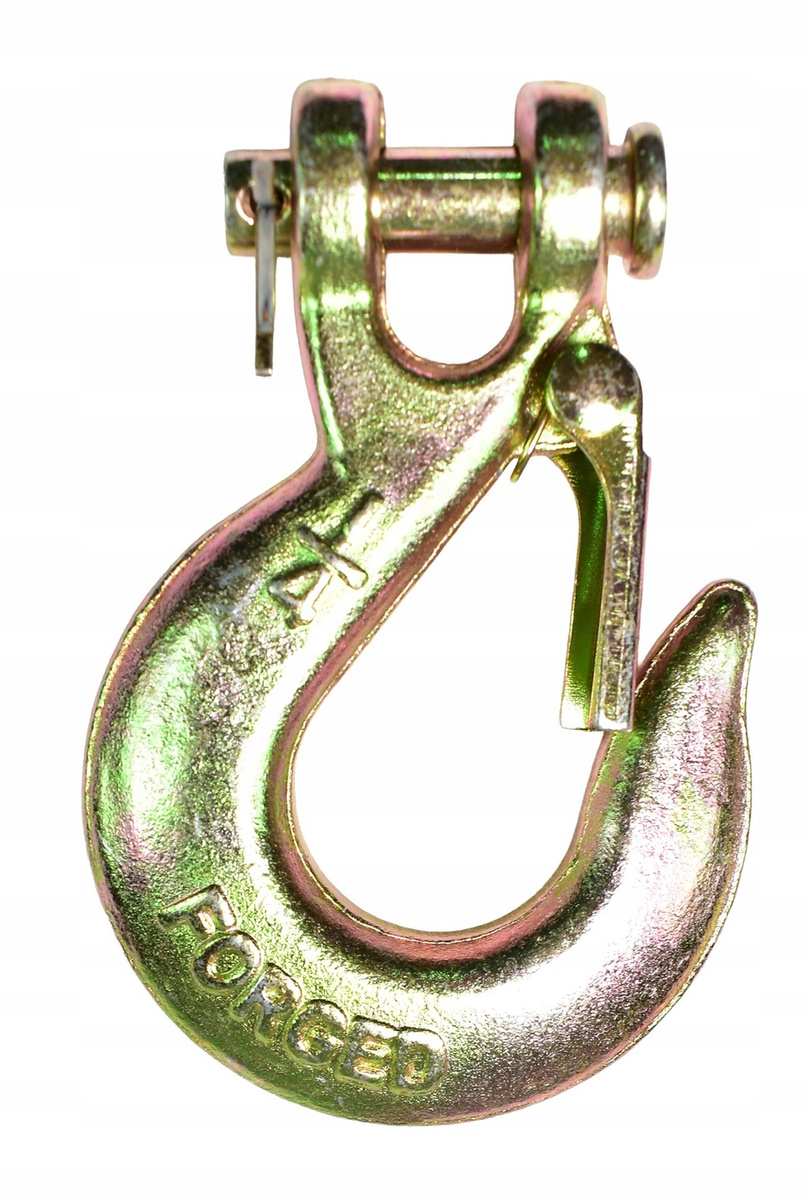

• hook

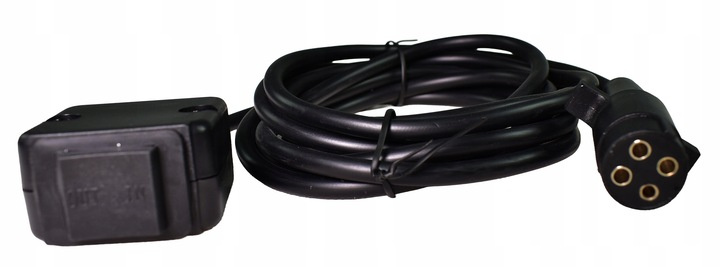

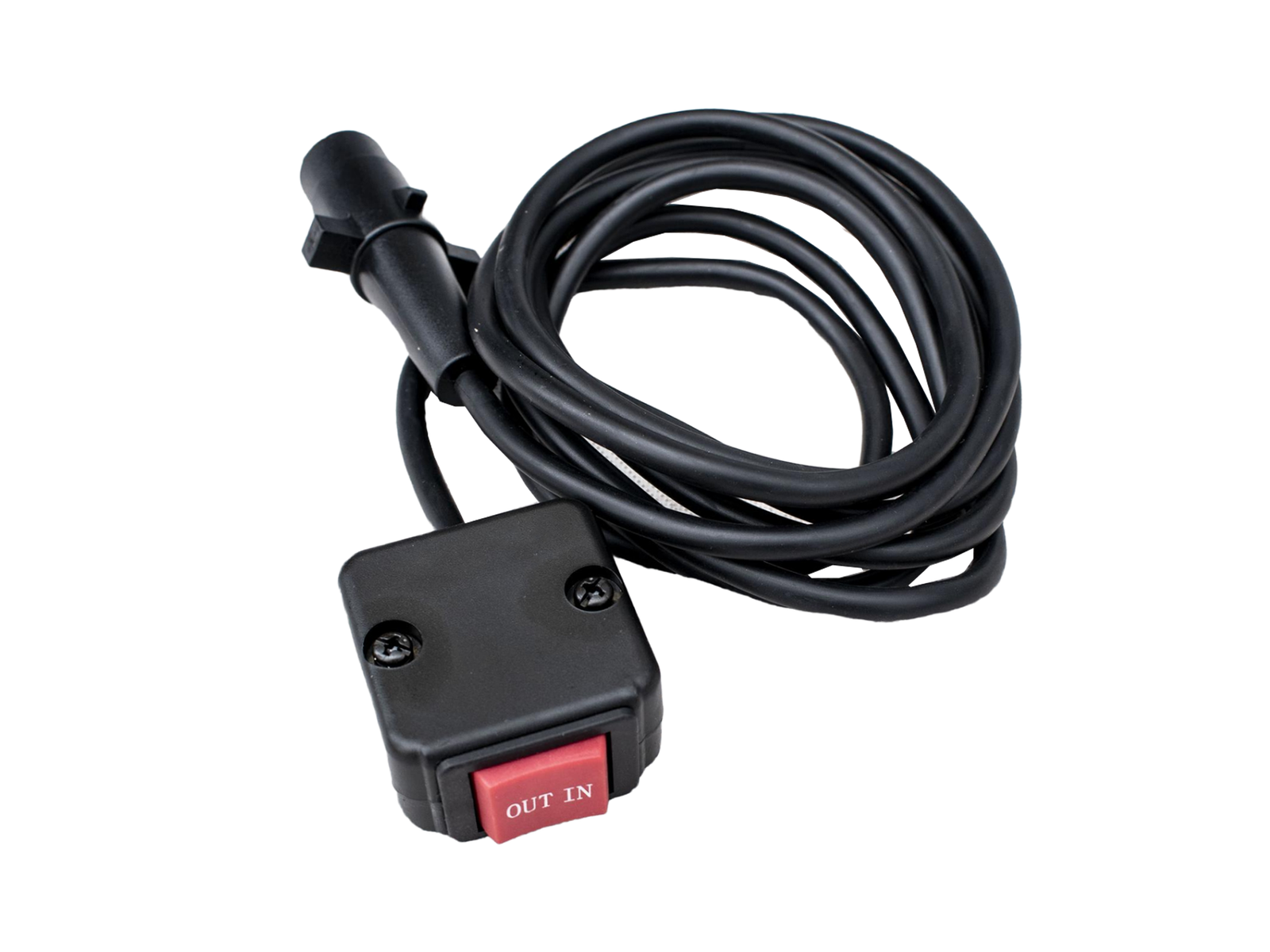

• wired control
• electric cables

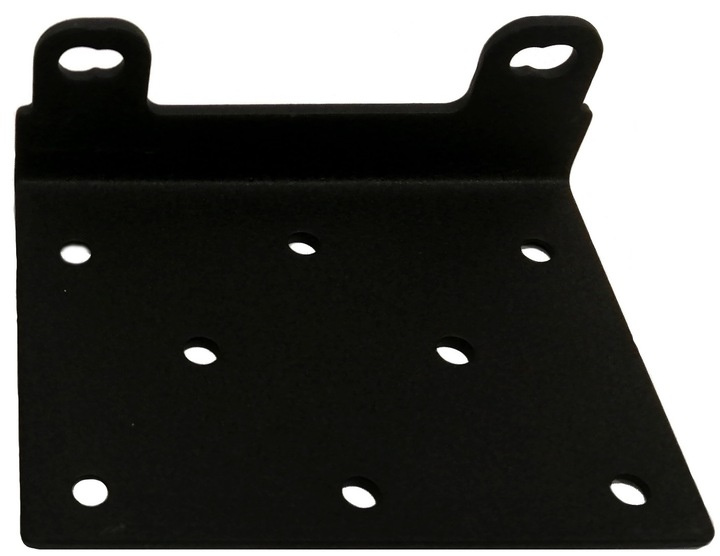

• mounting set
SPECYFIKACJA TECHNICZNA
| Cable pull | 3500 lbs (1588 kg) |
| Motor | 12V input: 3.2 hp (2.4 kw) output 1.3 hp (1.0 kw) |
| Gear reduction ratio | 170:1 |
| Cable | 5.4 mm x 12.8 mm |
| Drum | 37 mm x 80 mm |

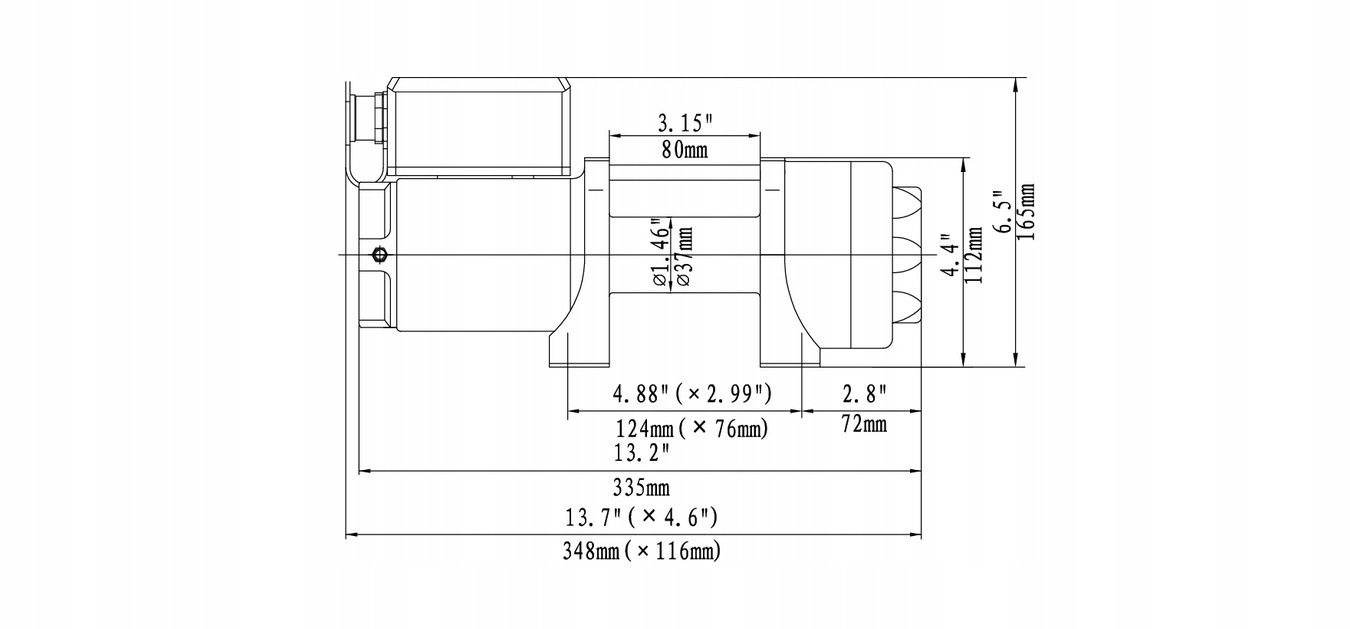

| Length x width x hight | 335 x 116 x 112 mm |
| Mounting screws pattern | 124 mm x 76 mm |
| Weight | 10kg |
| Cable load (kg) | Cable winding speed (m/min) | Energy consumption (amper) |
| 0 | 3,2 | 20 |
| 454 | 2,7 | 75 |
| 907 | 2,3 | 130 |
| 1588 | 1,4 | 200 |
Cable pull depending on the layer of the cable
| Layer | Pull (kg) | Length of cable on the drum (m) |
| 1 | 1588 | 1,8 |
| 2 | 1265 | 4,1 |
| 3 | 1052 | 6,7 |
| 4 | 900 | 9,5 |
| 5 | 786 | 12,8 |
Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
