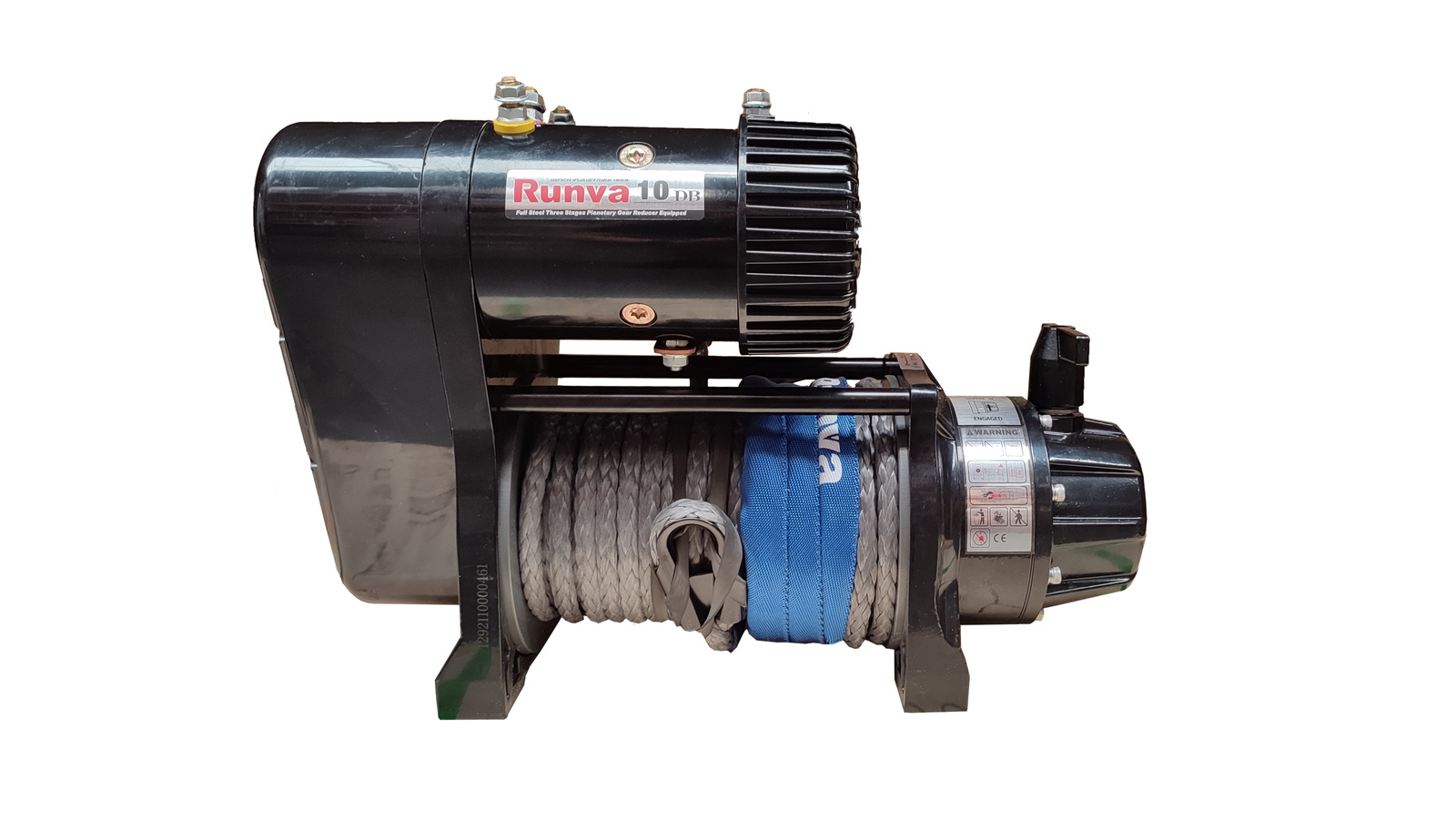

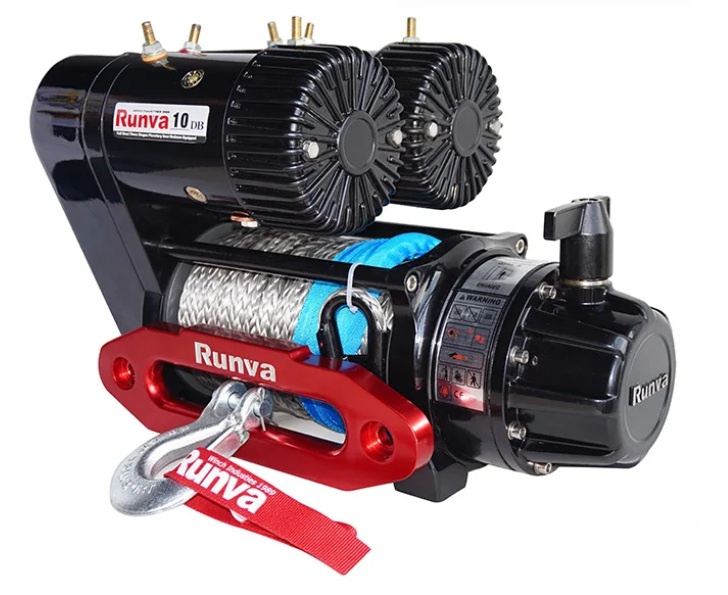

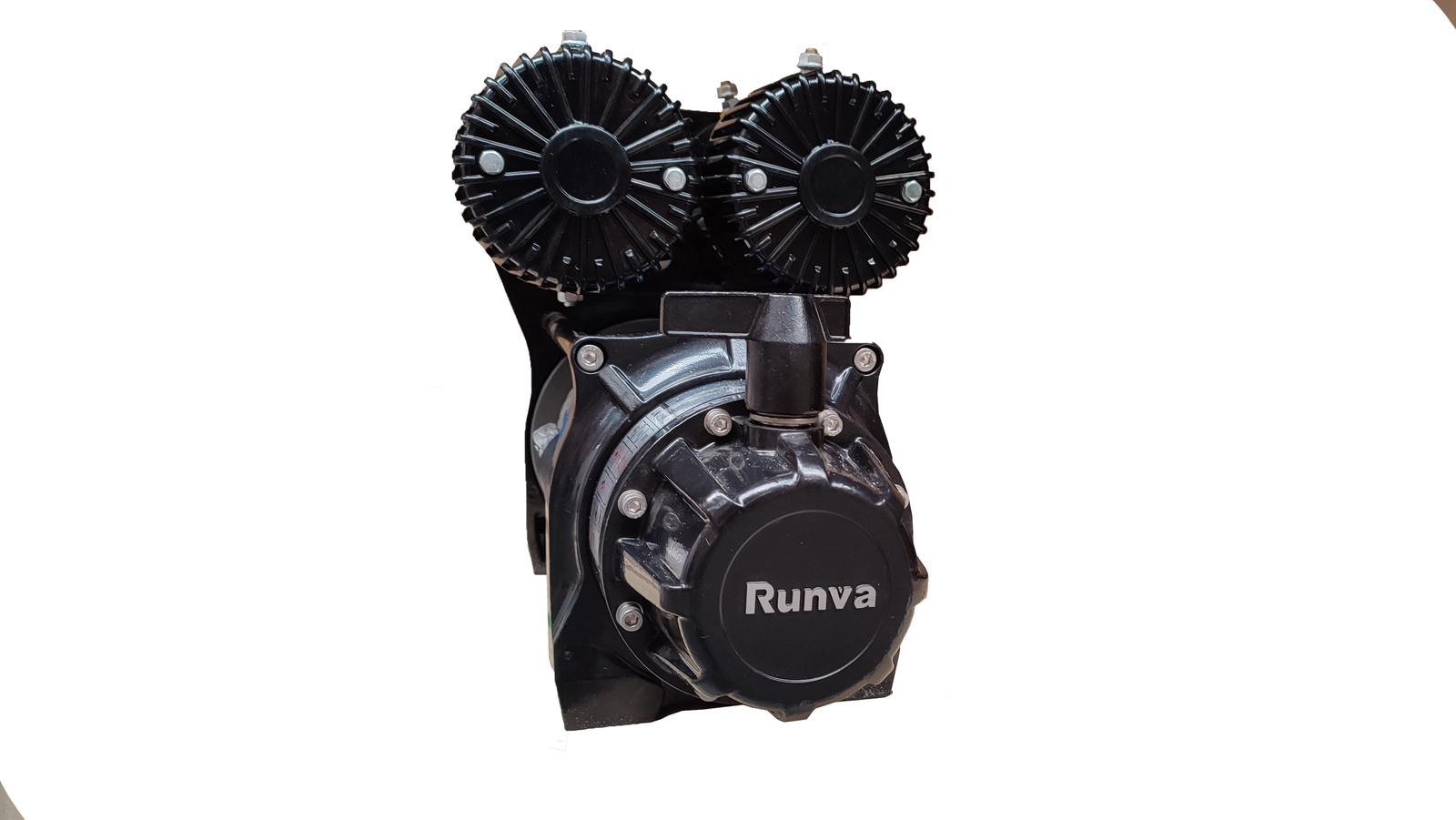

TWOHydraulic MotorOWA RUNVA EWS10000 WINCH - PULLING CAPACITY OF 4.5 TONS WITH SYNTHETIC ROPE
The winch is equipped with 2 hydraulic Motorand with a power of 7.2 hp, thanks to which the winch has a gear ratio of 108:1. Which gives us the ability to coil at maximum load almost 4 meters of rope per minute!
This winch has a two-belt system and an increased diameter of the drum which increases its strength, making the EWS10000 suitable for use in harsh conditions.
It also uses additional sealing which gives it an IP67 waterproof rating.

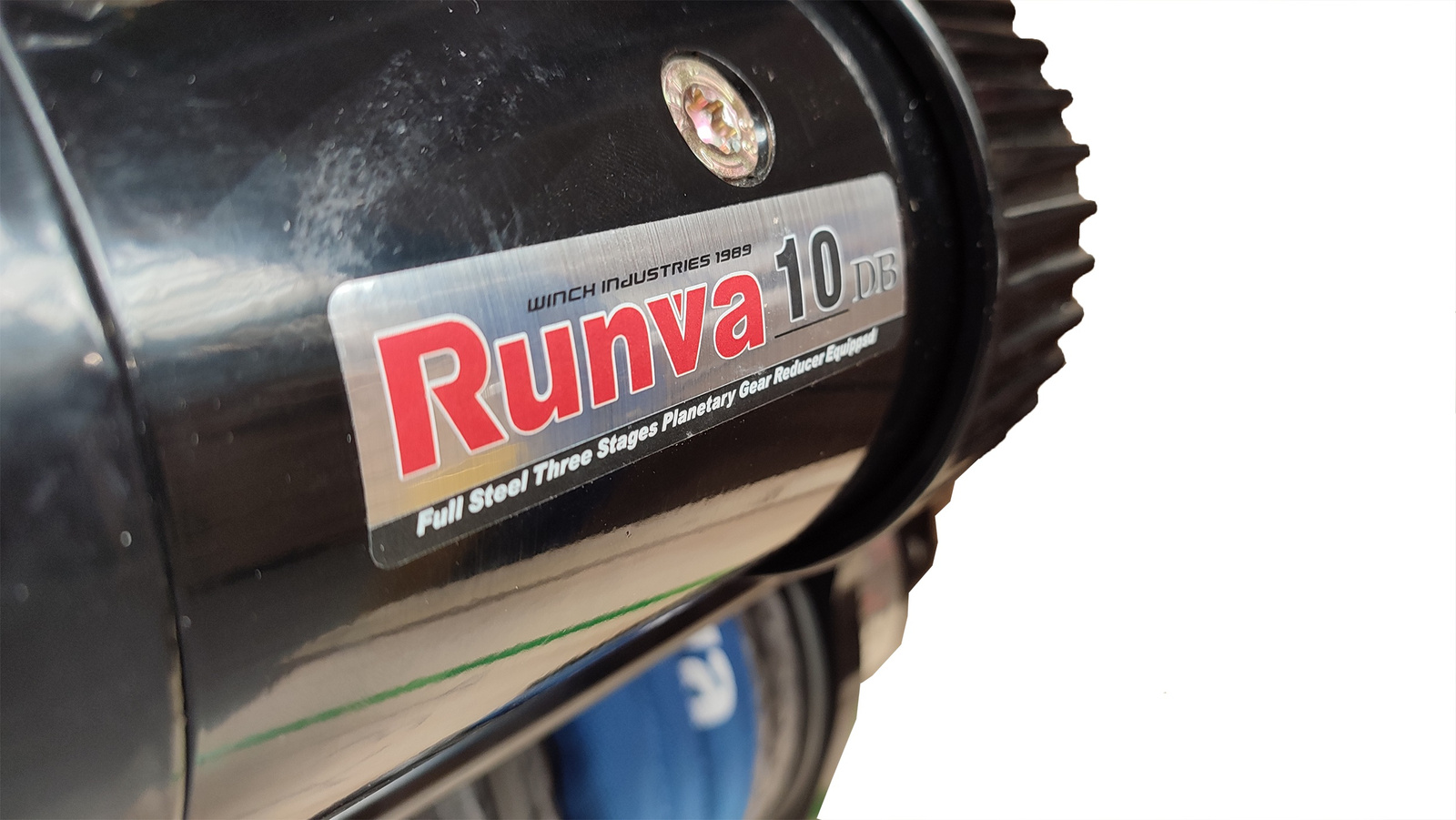

The gearbox in the EWS10000 winch, is a 3-stage planetary gearbox, made entirely of steel suitable for heavy-duty tasks during Off Road struggles and more.

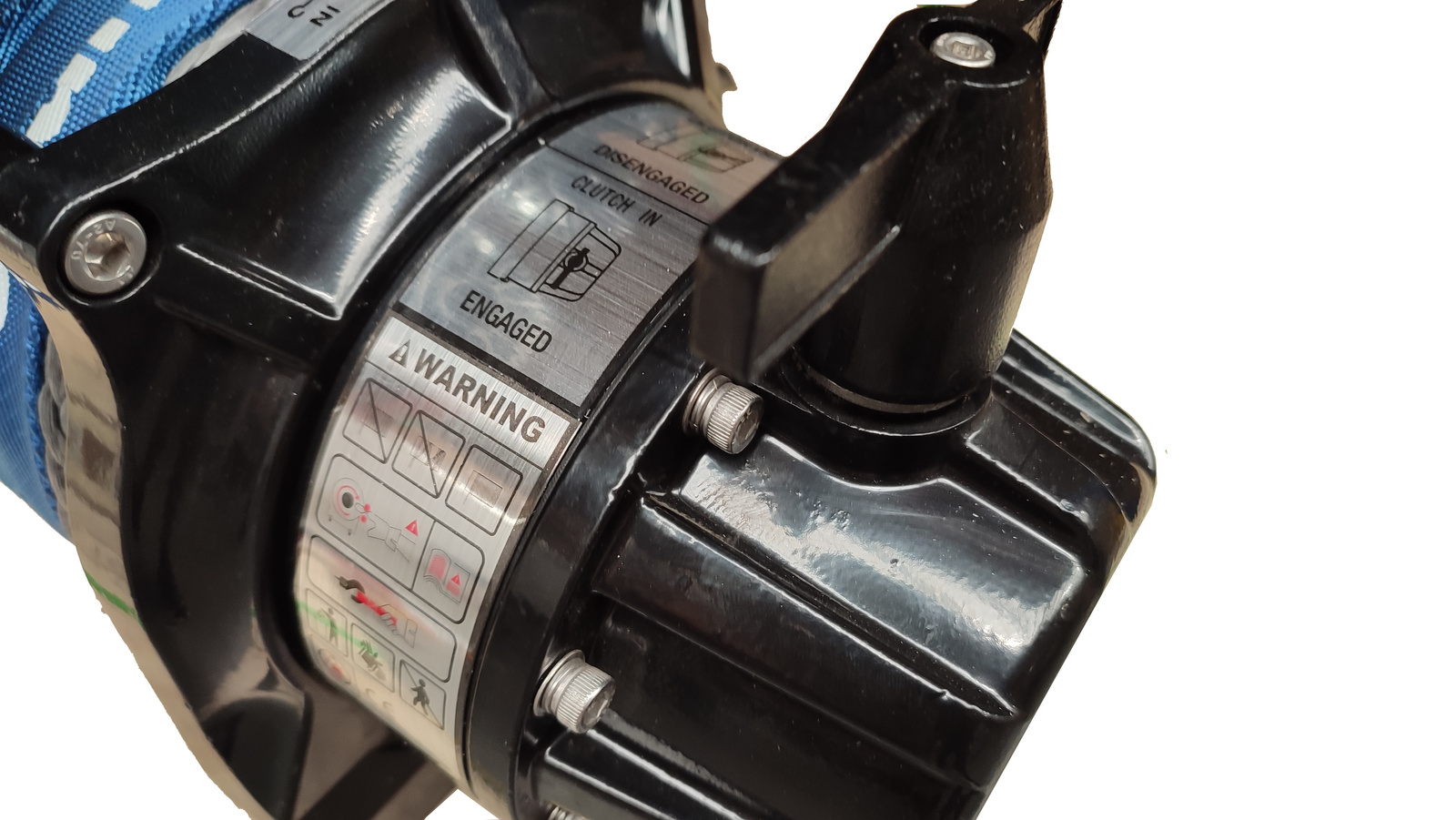

It is equipped with a ratchet brake, which has been transferred to the gearbox, resulting in reduced drag and the ability to develop hydraulic Motor maximum speeds while reducing vibration and noise.
All these design innovations make the EWS10000 winch boldly usable in tough rally conditions (Off Road).
Winch dedicated to:
- Off Road,
- Special vehicles,

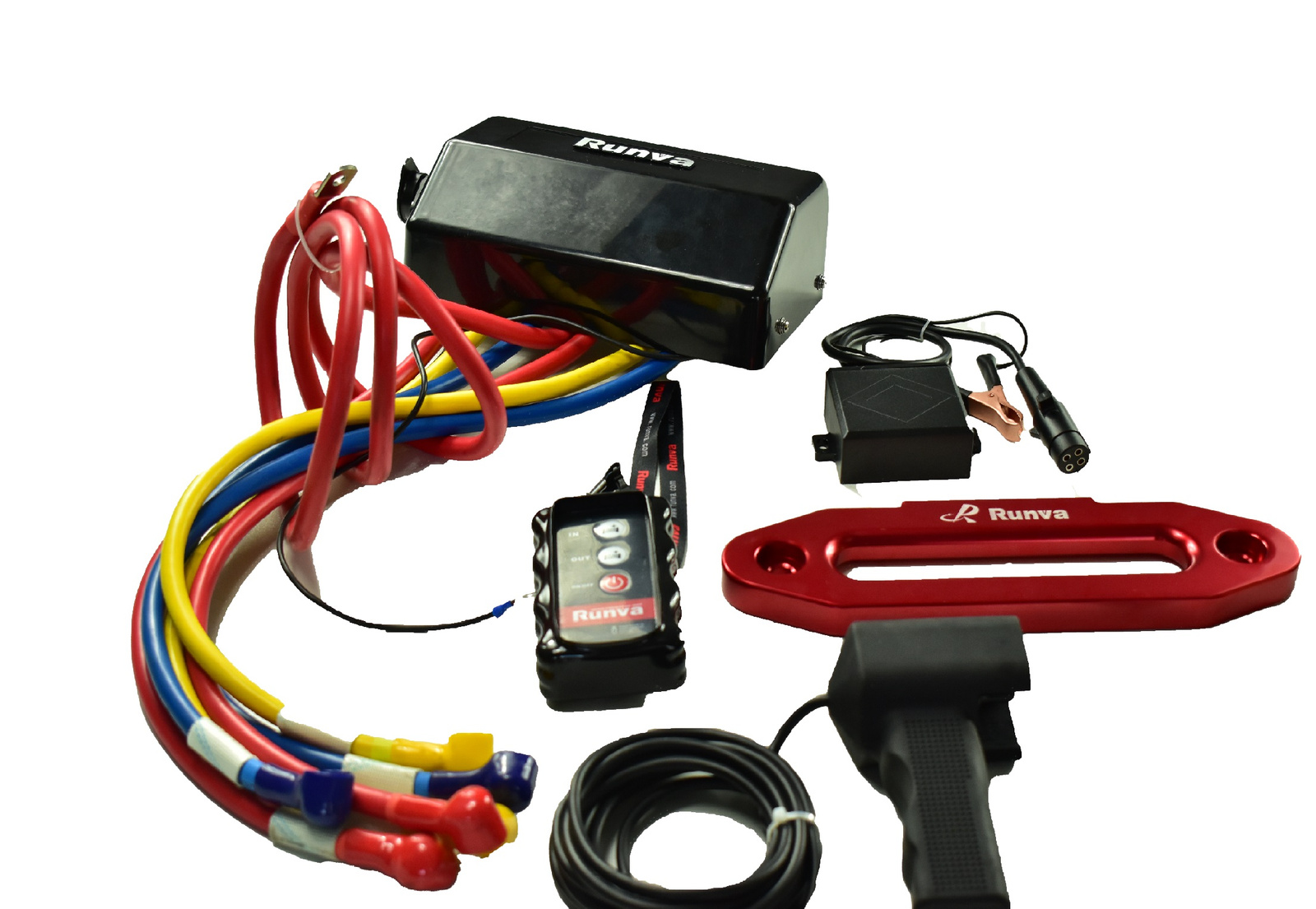

Composition of the complete set:
- twohydraulic Motorowa winch with a pull of 4.5T with wound synthetic rope (Ø 9.5/26 m)
- Box with coil and connecting cables
- hook + safety tape in red color,
- sliding guide in red,

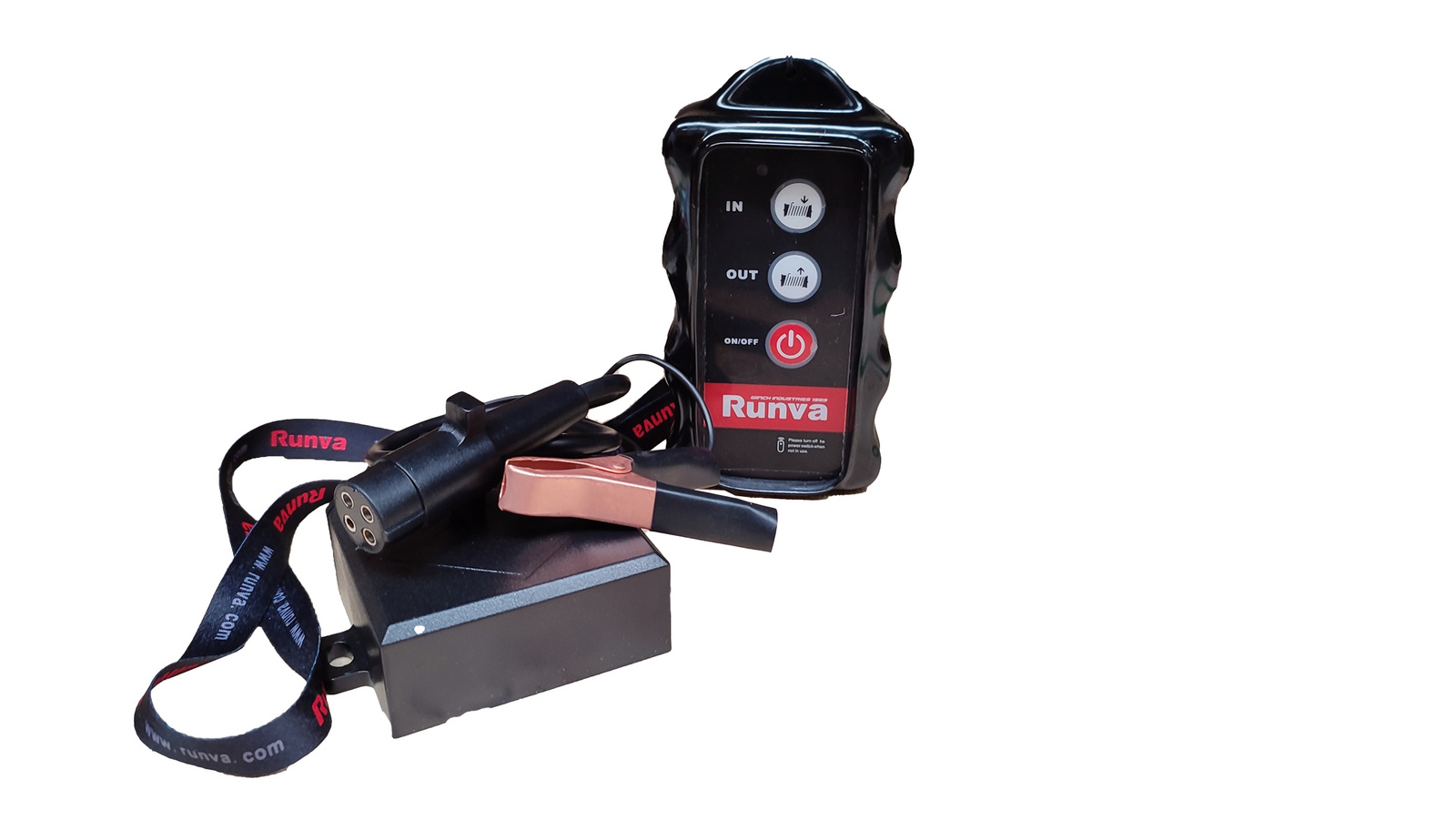

- wired remote control,
- wireless remote control,
- a set of mounting screws,
TECHNICAL SPECIFICATIONS
| Pulling capacity | 10000 lbs (4536 kg) |
| Hydraulic Motor | 7.2 HP |
| Ratio | 108:1 |
| Rope | Ø 9.5 mm |
| Reel | 72mm x 214mm |
| Dimensions L x W x H. | 479 x 262 x 355mm |
| Mounting screw spacing | 254mm x 114.3mm |
| Weight | 53kg |
Rope retraction speed and current consumption
(first layer of rope on drum)
| Rope load (kg) | Rope speed (m/min) | Current consumption (ampere) |
| 0 | 15,3 | 150 |
| 1816 | 6,8 | 420 |
| 2722 | 5,7 | 580 |
| 3629 | 4,8 | 700 |
| 4536 | 3,9 | 860 |
Pulling force depending on the rope layer
| Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
| 1 | 4536 | 5,6 |
| 2 | 3698 | 12,5 |
| 3 | 3121 | 21,0 |
| 4 | 2700 | 30,8 |
| 5 | 2379 | 40,0 |
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
