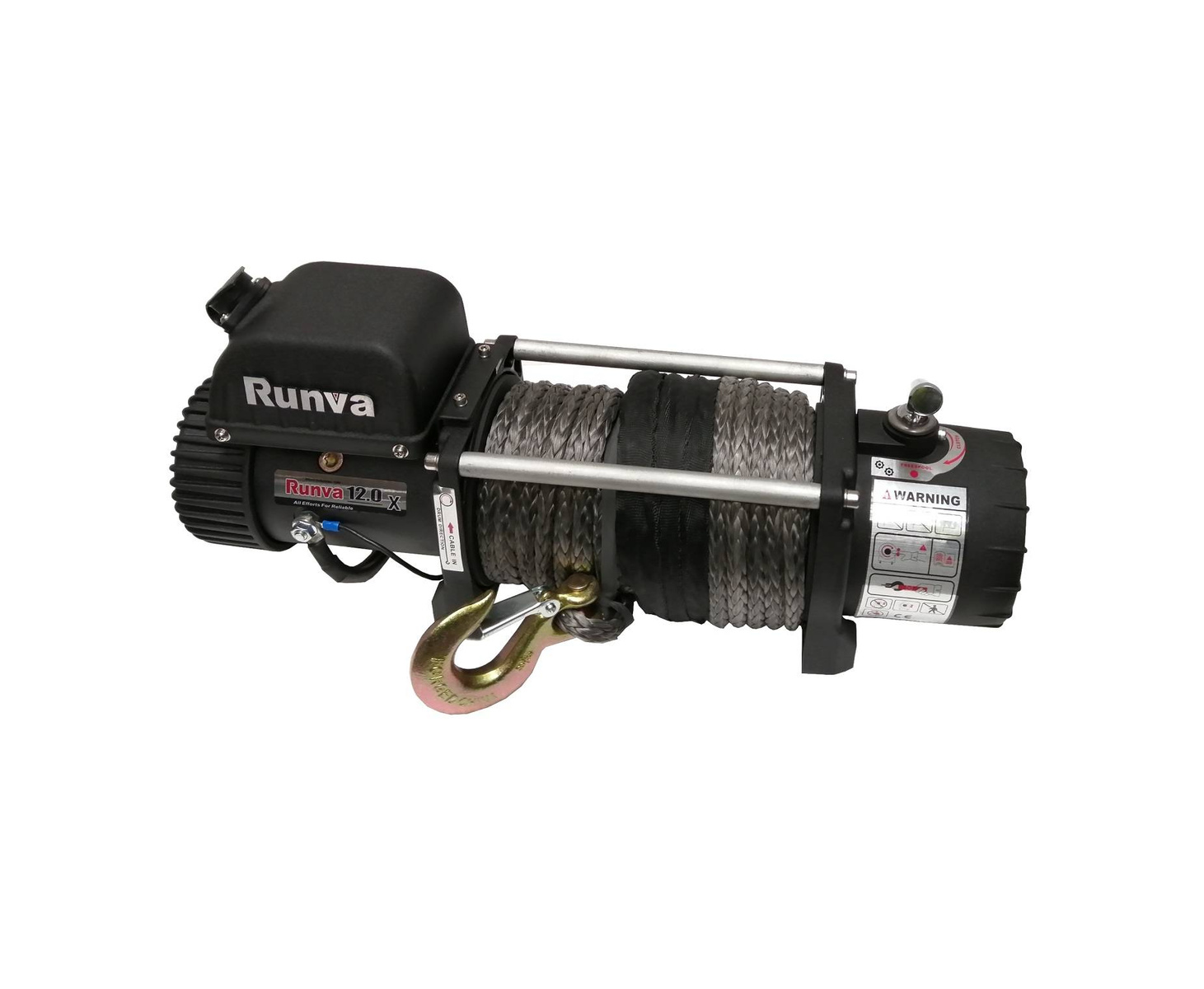

RUNVA EWX12000 electric winch (EWX 12.0X) - 5.4 T - 12V with synthetic rope
tel:664449257
e-mailwyciagarki@hewea.com
RUNVA EWX12000 electric winch (EWX 12.0X) - 5.4 T - 12V with synthetic rope
- Winch electric winch of Runva company with 5,4 tons of thrust with synthetic rope. It comes in the version with hydraulic Motor 12V . Product similar to: DWM 12000 , DWH 12000 , PW 12000 .
The electric winch winch is designed for heavy-duty work on off-road and commercial vehicles. Very long service life and high resistance to harsh working conditions are its most important features. Thanks to the use of innovative technology and the most durable materials, it is guaranteed the highest quality and efficiency, even in extreme working conditions. Available in 12V version
The set includes:

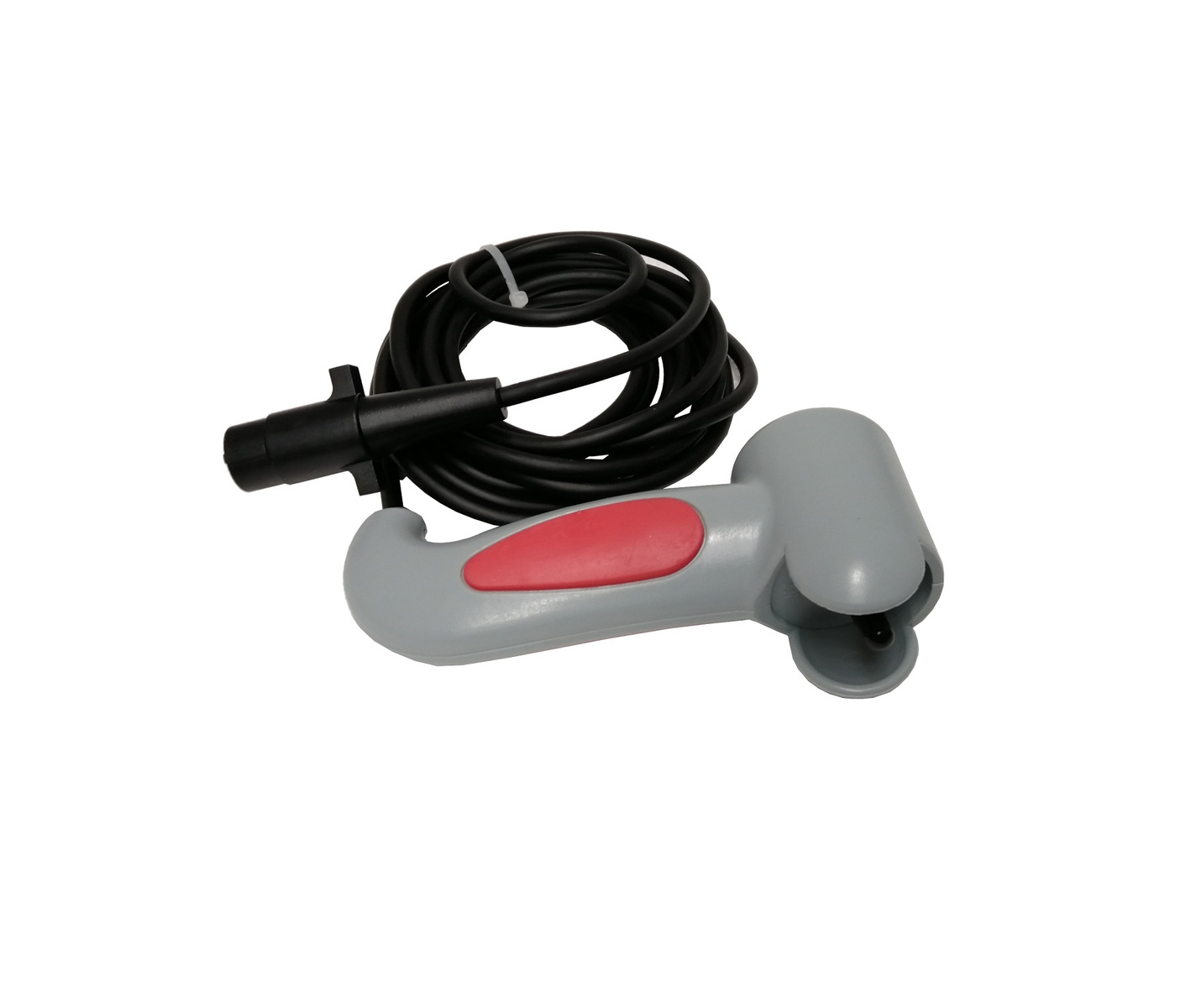

- wired remote control,

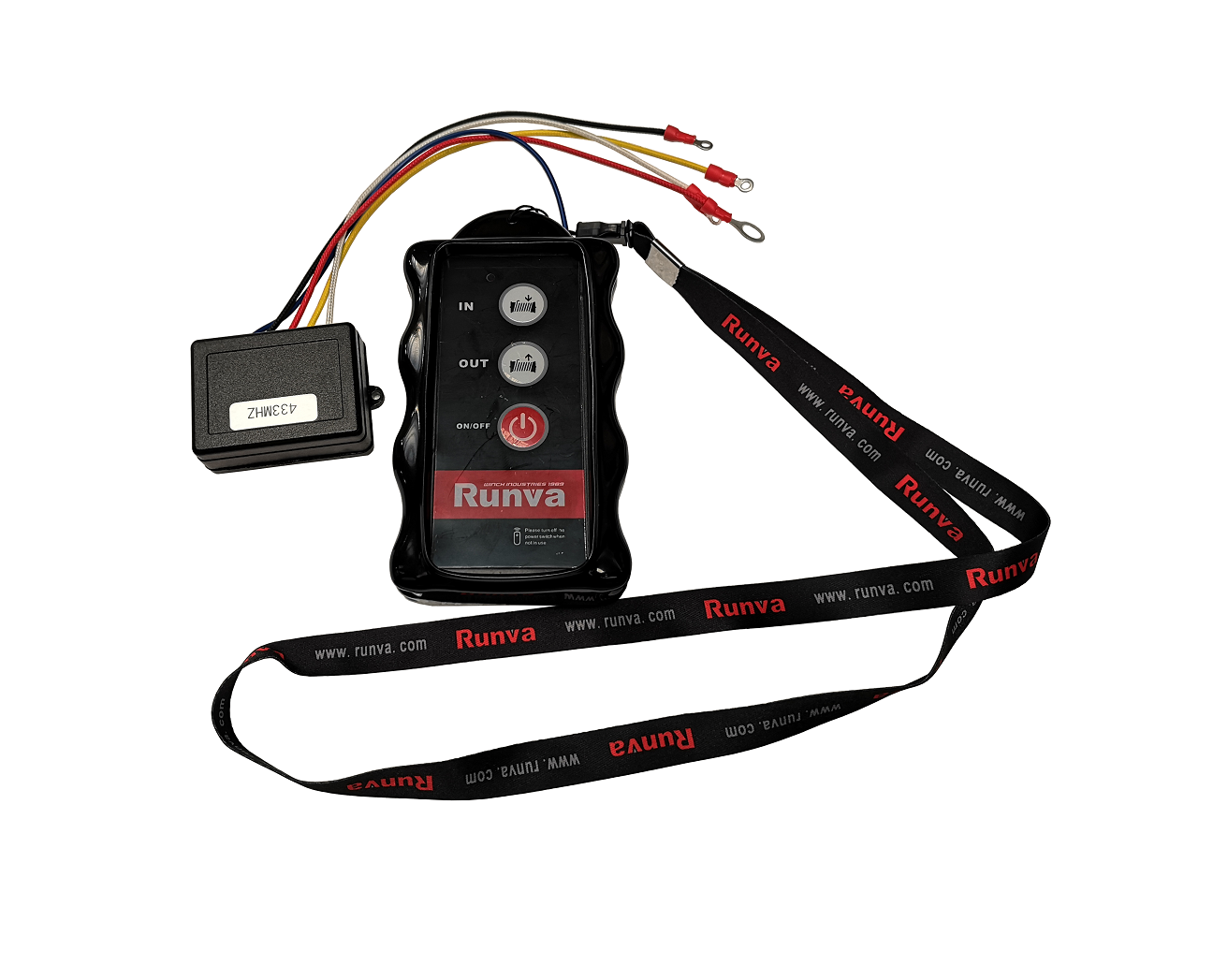

- wireless remote control,

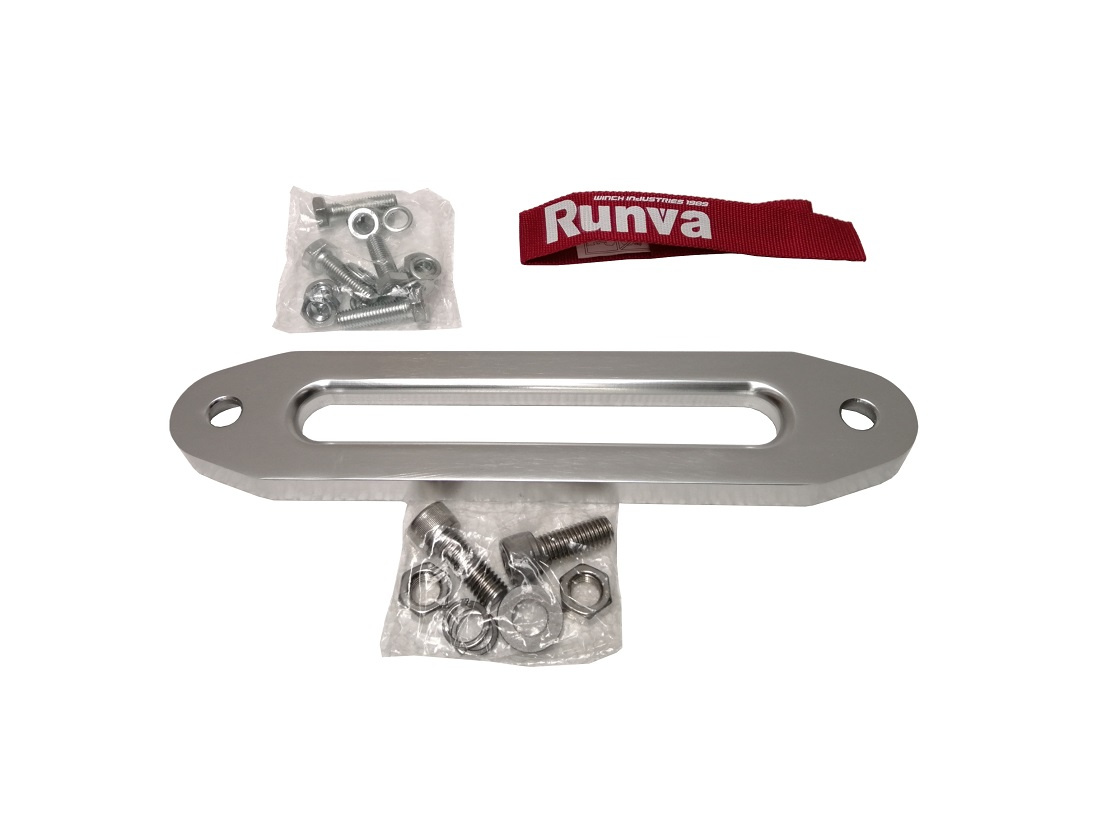

- aluminum synthetic rope sliding guide + mounting screws
- synthetic rope in gray color, ending with a caoutchouc,
- hook, safety tape in red color,
- mounting screws,
- control box mounted above hydraulic Motor with connecting cables.
TECHNICAL SPECIFICATIONS
| Pulling capacity | 12000 lbs (5443 kg) |
| Hydraulic Motor |
12V input: 7.2hp(5.4kw) output 3.6hp(2.7kw) |
| Ratio | 230:1 |
| Rope | 10.2mm x 25.5mm) |
| Drum | 63mm x 223mm) |
| Dimensions L x W x H. | 22.8 "x6.3 "x10.0" (579 x 160 x 254mm) |
| Mounting screw spacing | 10" x 4.5" (254mm x 114.3mm) |
| Weight | 42 kg |
Rope retraction speed and current consumption
(first layer of rope on drum)
| Rope load (kg) |
Rope speed (m/min) 12V / 24V |
Current consumption (ampere) 12V / 24V |
| 0 | 6.8 / 7.0 | 100 / 60 |
| 1814 | 4.0 / 4.2 |
220 / 130 |
| 3629 | 3.0 / 3.3 |
330 / 170 |
| 5443 | 1.8 / 2.3 |
450 / 220 |
Pulling force depending on the rope layer
| Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
| 1 | 5443 | 4.9 |
| 2 | 4338 | 11.1 |
| 3 | 3605 | 18.3 |
| 4 | 3804 | 25.5 |
Product similar to: DWM 12000 , DWH 12000 , PW 12000 .
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of the online store hydromech.eu are not responsible for their compliance with the parameters of the product provided by the manufacturer. The source data are provided in the manufacturer's brochure, which can be downloaded from the "Download" tab (below).
