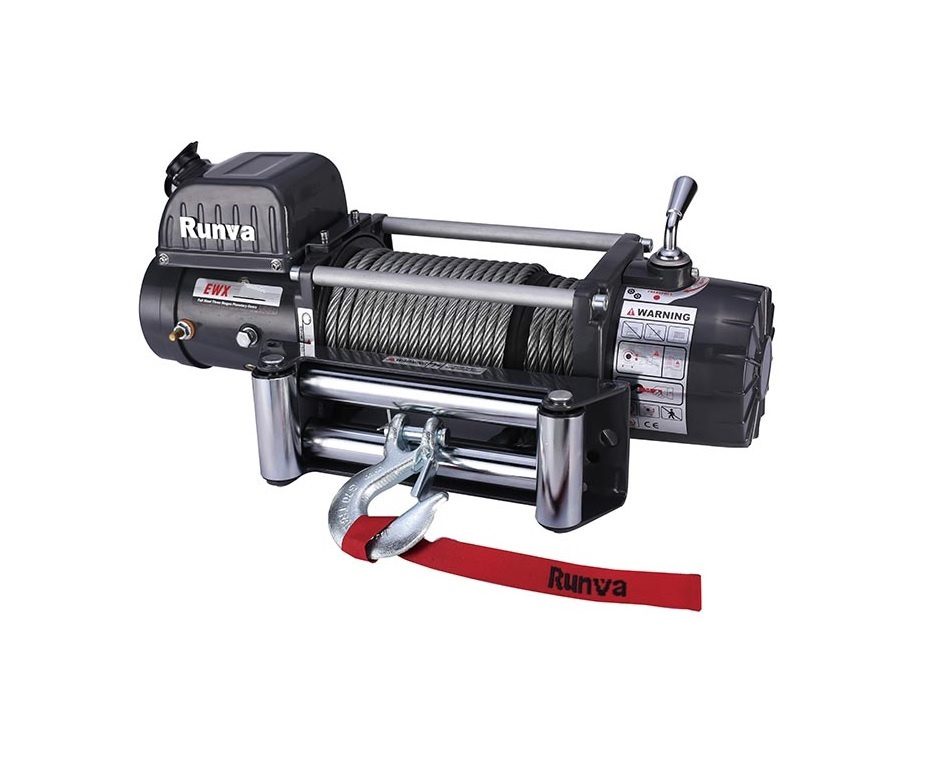

Runva EWX12000U (EWX 12.0X) electric winch - 5.4t - 24V
- Winch electric winch from Runva with a thrust of 5.4 tons. It comes in the version with hydraulic Motor 24V . Product similar to: DWM 12000 , DWH 12000 , PW 12000 .
The electric winch winch is designed for heavy-duty work on off-road and commercial vehicles. Very long service life and high resistance to harsh working conditions are its most important features.Thanks to the use of innovative technology and the most durable materials, it is guaranteed the highest quality and efficiency, even in extreme working conditions. Available in 24V version
The set includes:
- Winch,
- Guide,
- Hook with strap,

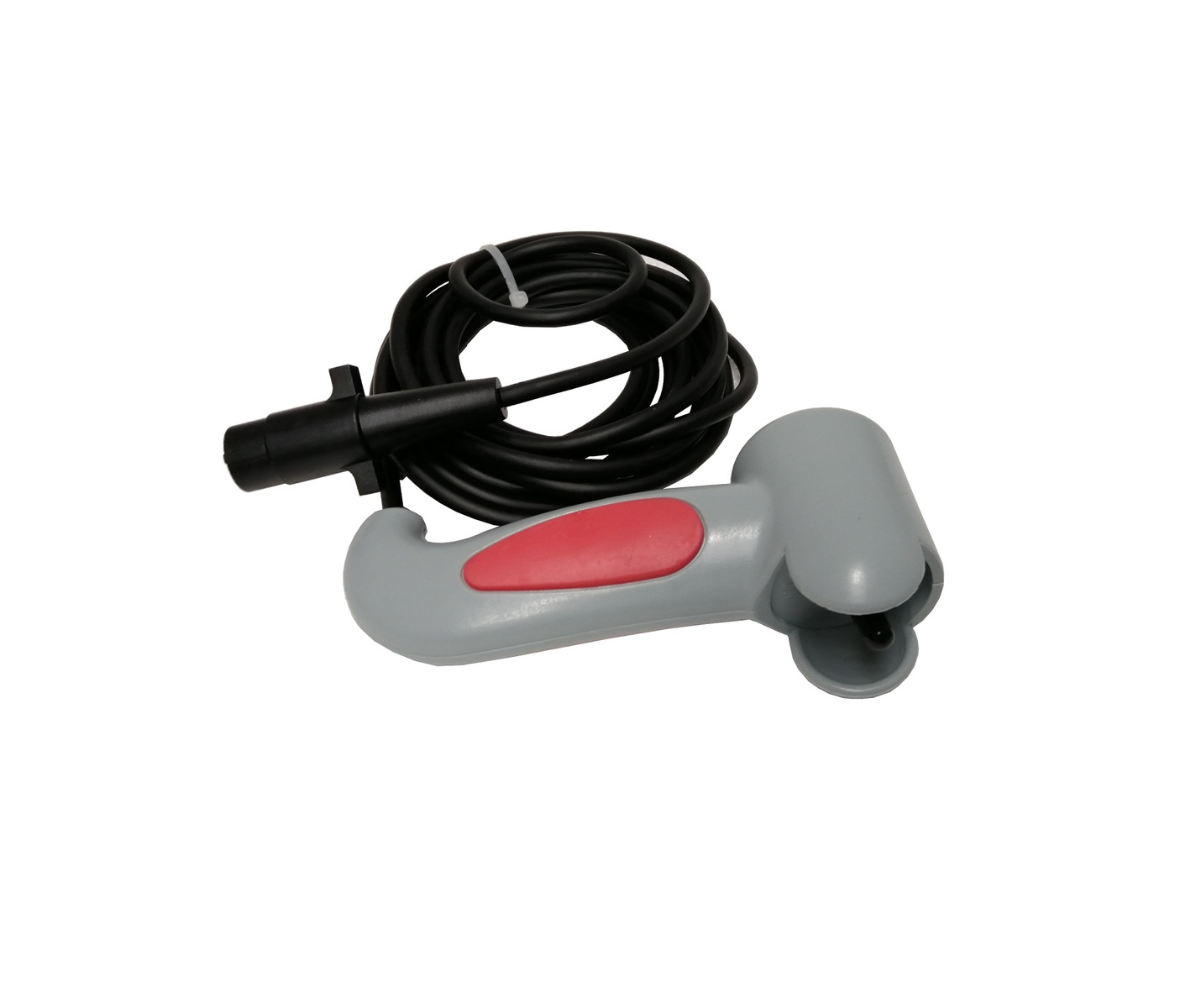

- Controller on cable,

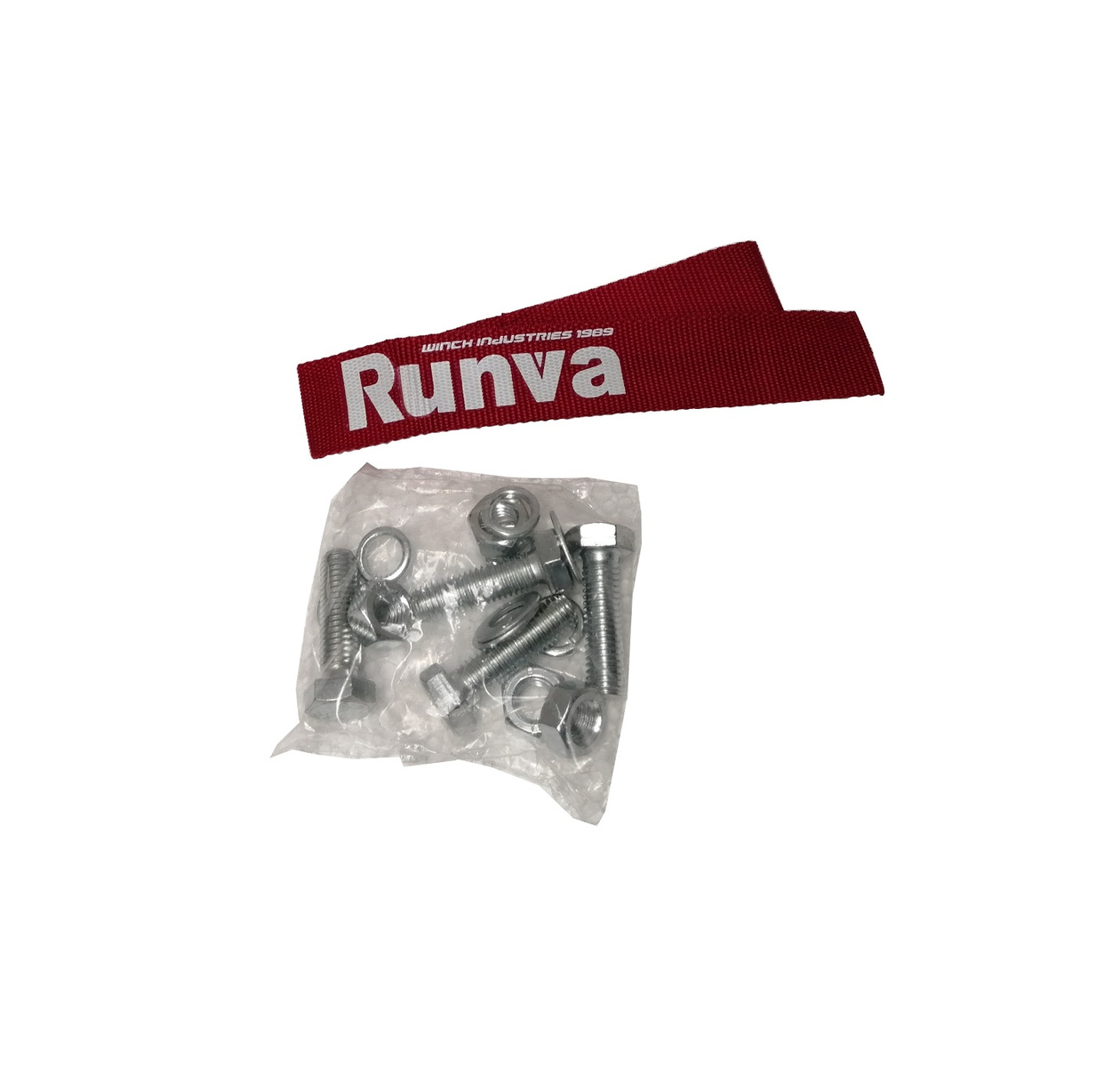

- Screw set,

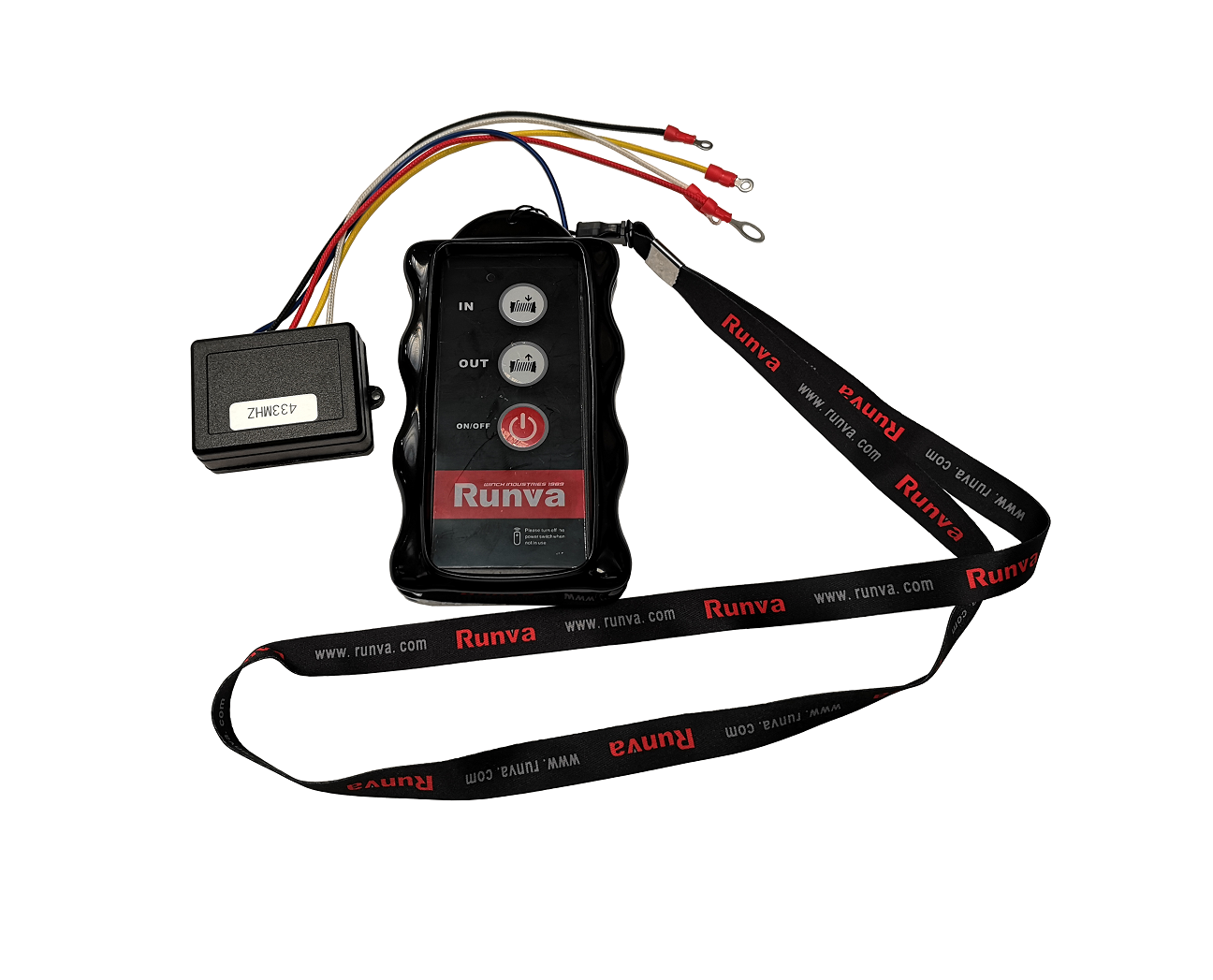

- Wireless remote control,
TECHNICAL SPECIFICATIONS
| Pulling capacity | 12000 lbs (5443 kg) |
| Hydraulic Motor |
12V input: 7.2hp(5.4kw) output 3.6hp(2.7kw)
|
| Ratio | 230:1 |
| Rope | 10.2mm x 25.5mm) |
| Drum | 63mm x 223mm) |
| Dimensions L x W x H. | 22.8 "x6.3 "x10.0" (579 x 160 x 254mm) |
| Mounting screw spacing | 10" x 4.5" (254mm x 114.3mm) |
| Weight | 42 kg |
Rope retraction speed and current consumption
(first layer of rope on drum)
| Rope load (kg) |
Rope speed (m/min) 12V / 24V |
Current consumption (ampere) 12V / 24V |
| 0 | 6.8 / 7.0 | 100 / 60 |
| 1814 | 4.0 / 4.2 |
220 / 130 |
| 3629 | 3.0 / 3.3 |
330 / 170 |
| 5443 | 1.8 / 2.3 |
450 / 220 |
Pulling force depending on the rope layer
| Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
| 1 | 5443 | 4.9 |
| 2 | 4338 | 11.1 |
| 3 | 3605 | 18.3 |
| 4 | 3804 | 25.5 |
Product similar to: DWM 12000 , DWH 12000 , PW 12000 .
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
