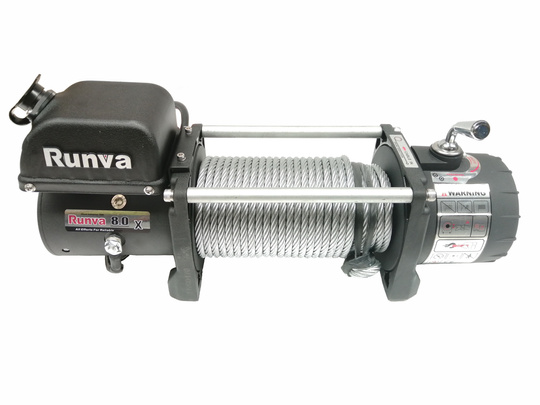

Runva EWX8000U (EWX 8.0X) electric winch - 3.6t - 12V
- Runva's electric winch with 3.6 tons of thrust. comes in a version with hydraulic Motor 12V.
The electric winch / winch is designed for heavy duty work on off-road and commercial vehicles. Very long service life and high resistance to harsh working conditions is its most important feature.Thanks to the use of innovative technology and the most durable materials, it has a guarantee of the highest quality and efficiency, even in extreme working conditions. Available in 12V version

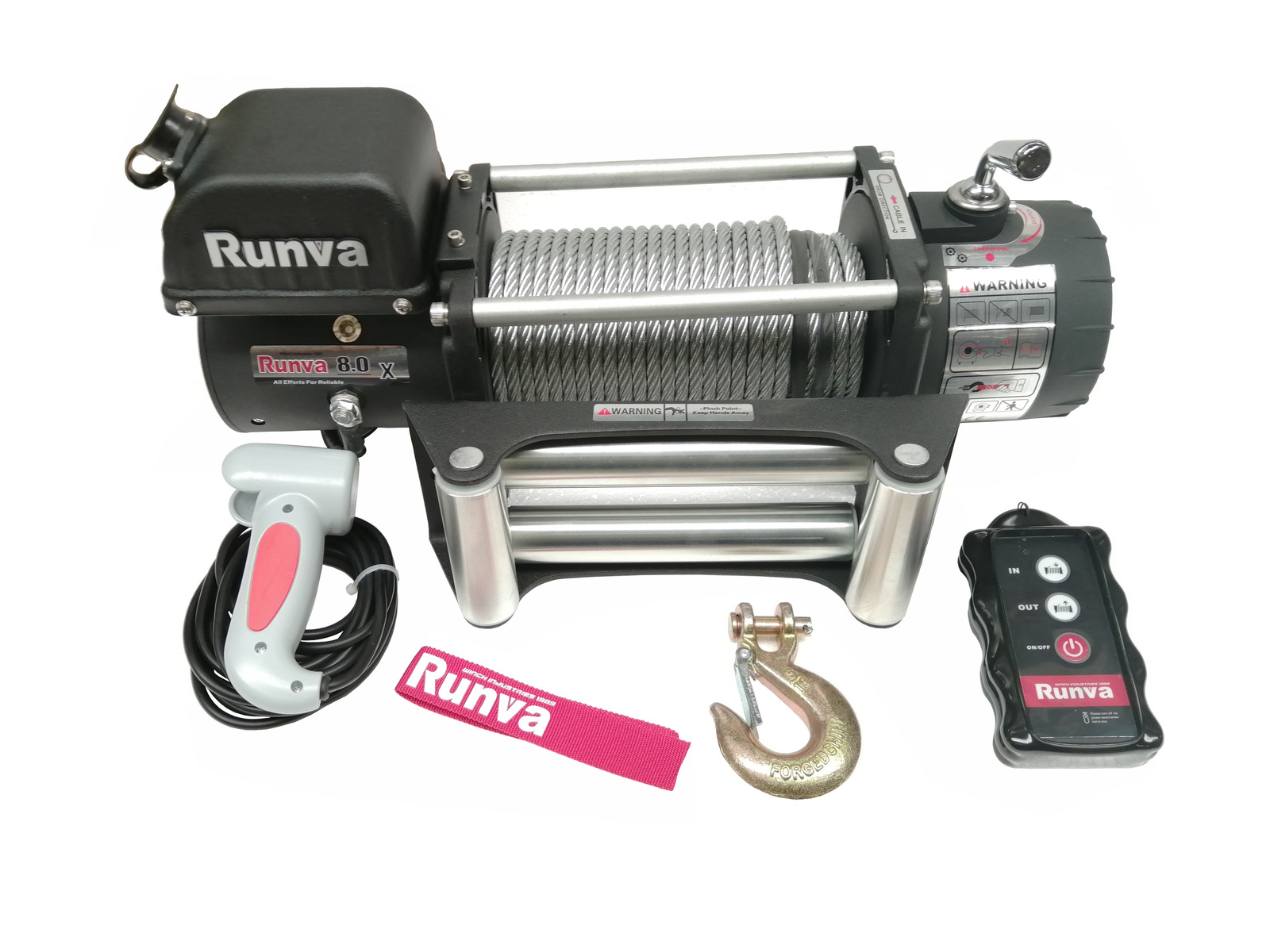

The set includes:
- 12V electric winch,

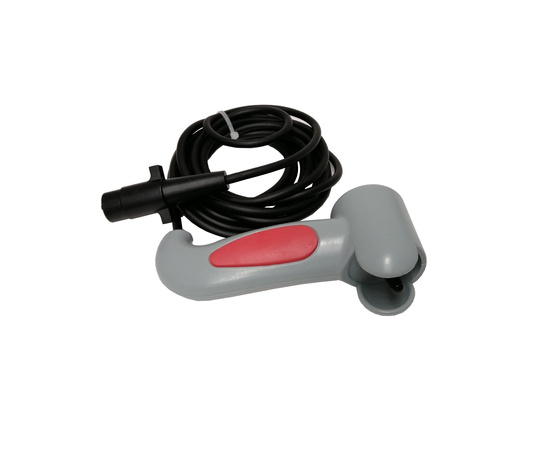

- wired remote control,

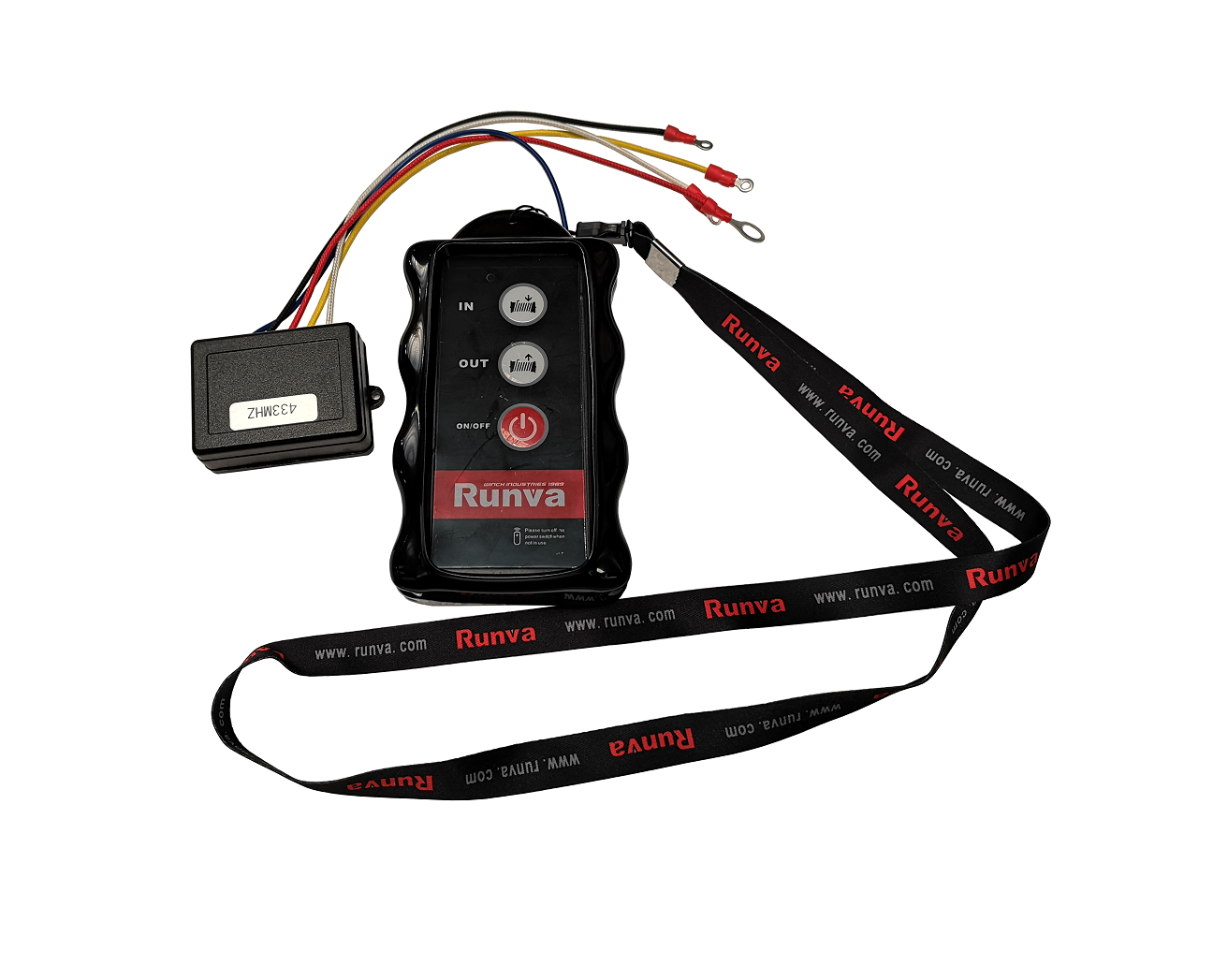

- wireless remote control in rubber casing,
- roller wire rope guide,
- sal rope terminated with a caoutchouc,
- hook, safety tape in red,
- set of mounting screws,
- control box mounted above hydraulic Motor with connecting cables.
TECHNICAL SPECIFICATIONS
| Towing capacity | 8000 lbs (3629 kg) |
| Hydraulic Motor |
12V input: 5.8hp(4.3kw) output 2.7hp(2.0kw) |
| Ratio | 230:1 |
| Rope | 8.3mm x 29mm |
| Drum | 63mm x 223mm |
| Dimensions L x W x H. | 540 x 160 x 254mm |
| Mounting screw spacing | 254mm x 114.3mm |
| Weight | 32.6 kg |
Rope retraction speed and current consumption
(first layer of rope on drum)
| Rope load (kg) |
Rope speed (m/min) 12V |
Current consumption (ampere) 12V |
| 0 | 5.4 |
80 |
| 1316 | 3.5 |
190 |
| 2268 | 2.8 |
260 |
| 3629 | 1.8 |
360 |
Pulling force depending on the rope layer
| Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
| 1 | 3629 | 6.1 |
| 2 | 2962 | 13.5 |
| 3 | 2502 | 22.0 |
| 4 | 2165 | 29.0 |
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
