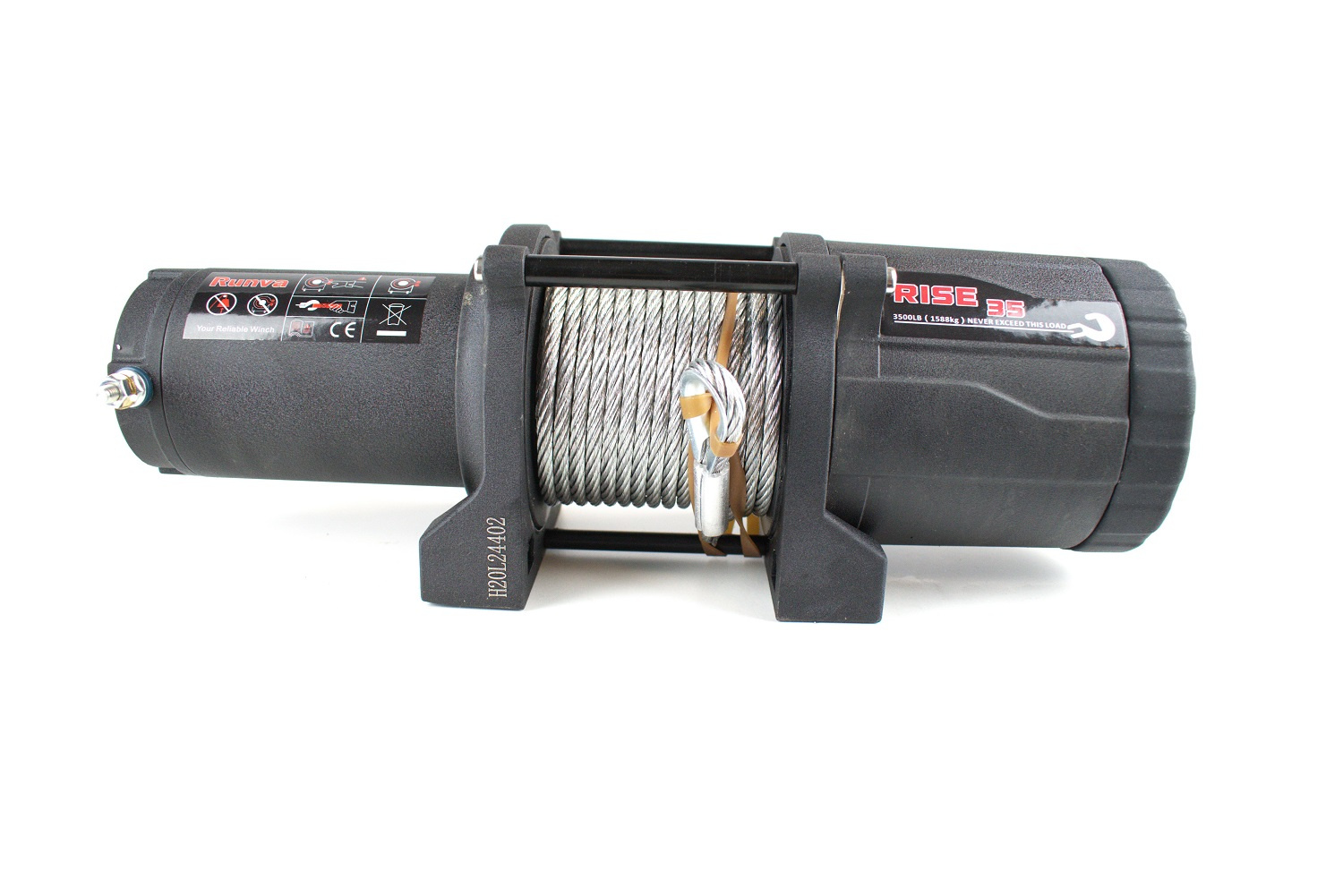

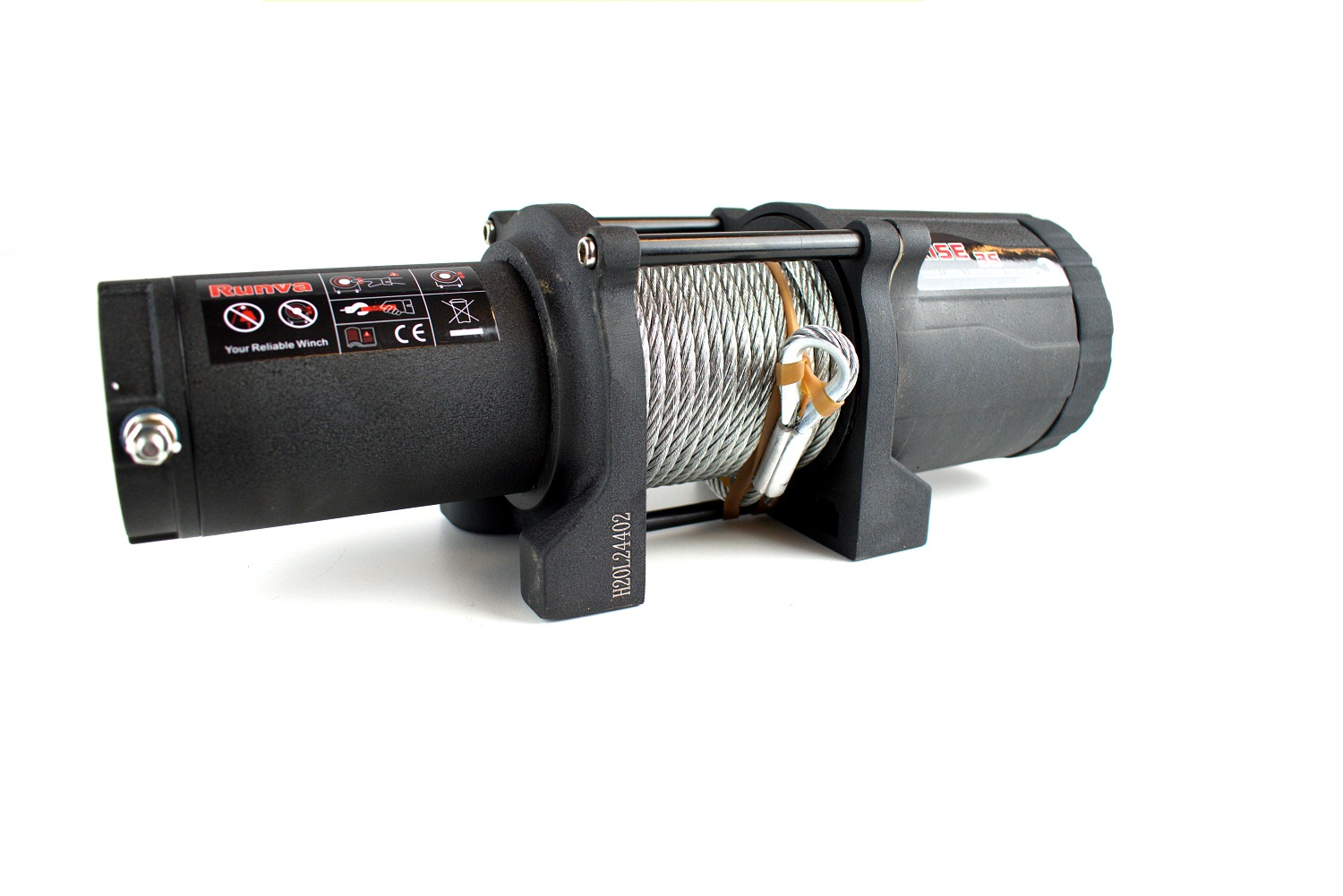

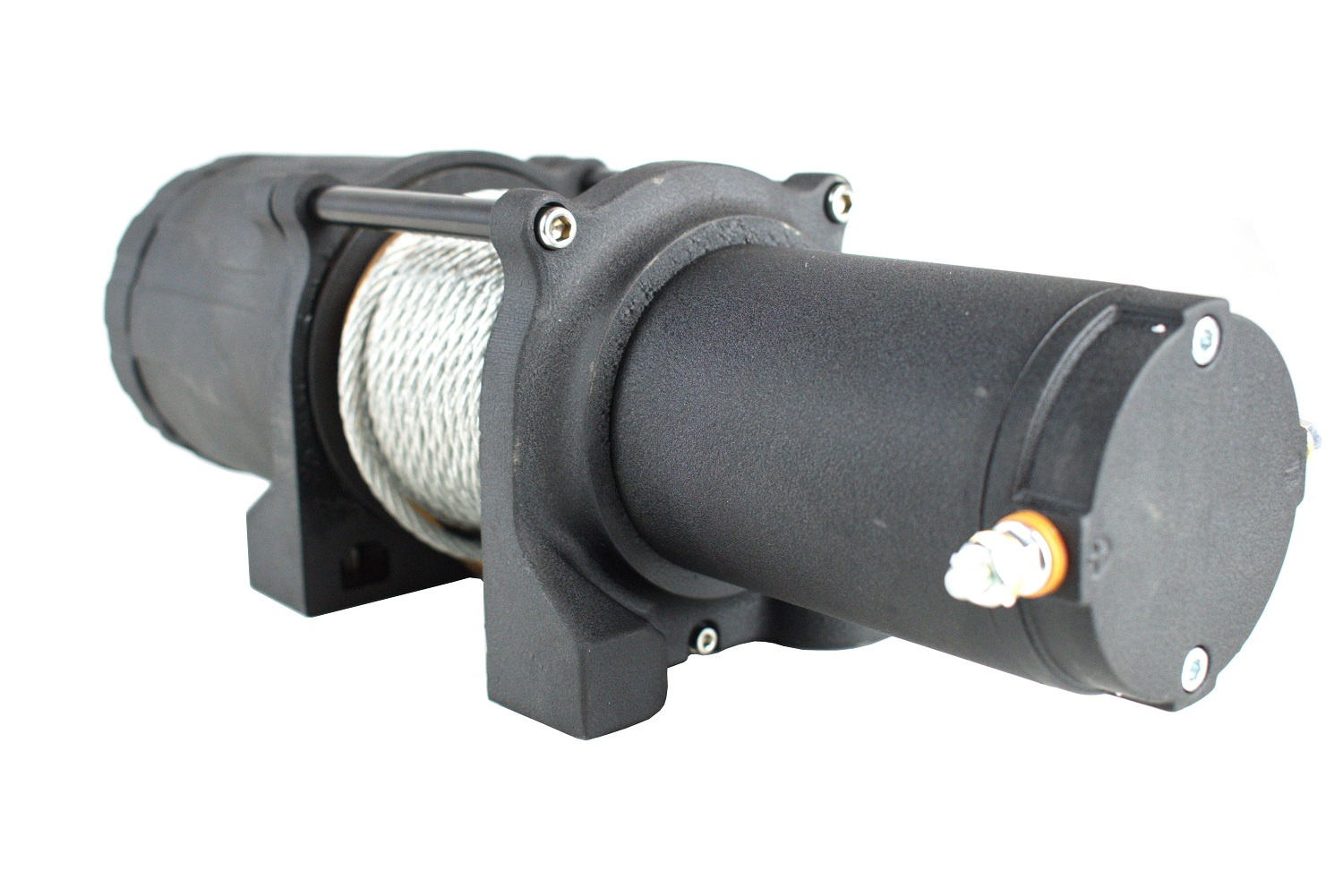

RUNVA Electric Winch RISE 35, 12 V
- RUNVA Electric Winch RISE 35, voltage 12V. Best for quads.
RUNVA Electric Winch RISE 35, voltage 12 V. Perfect for quads.

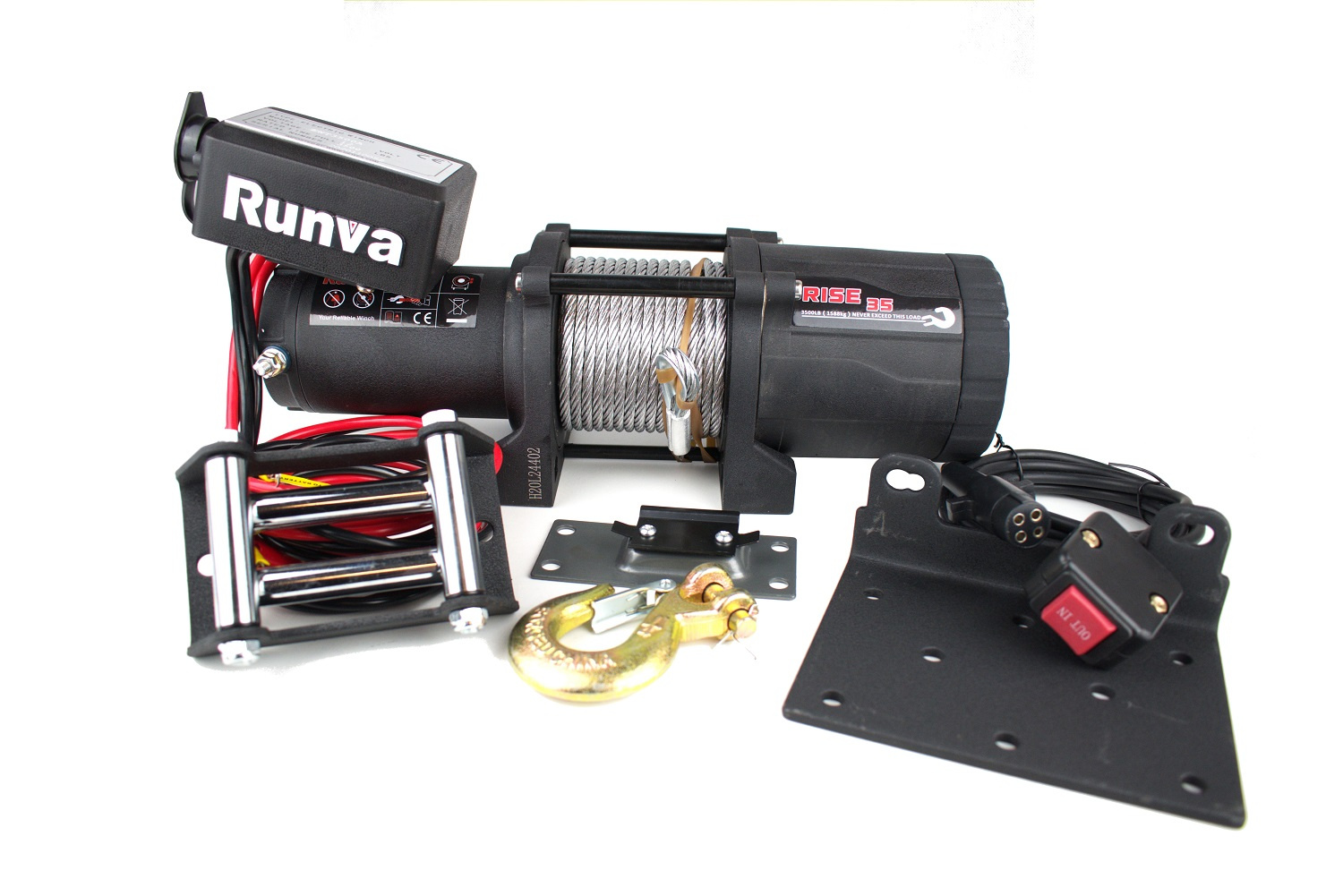

The set includes:
• roller fairlead

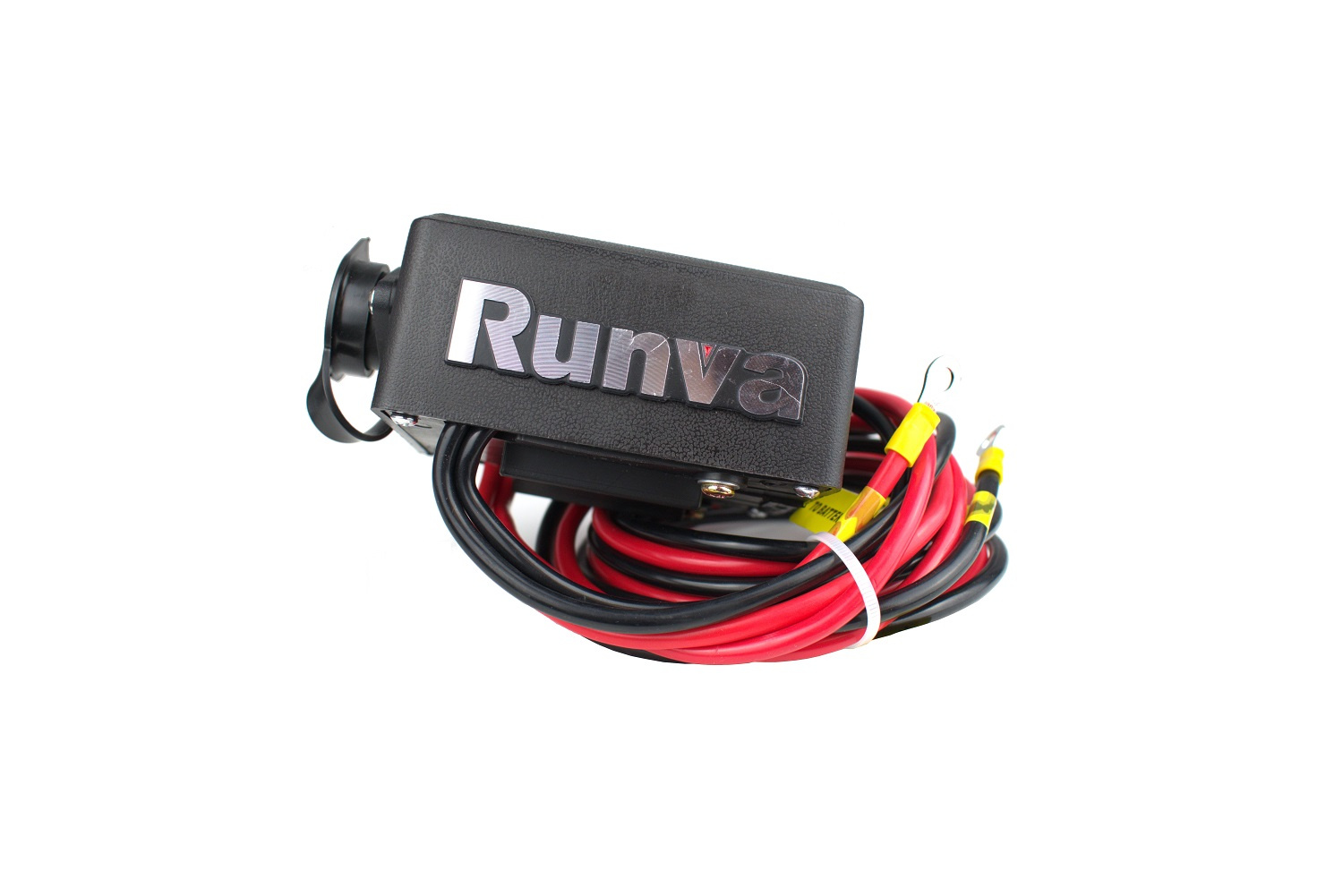

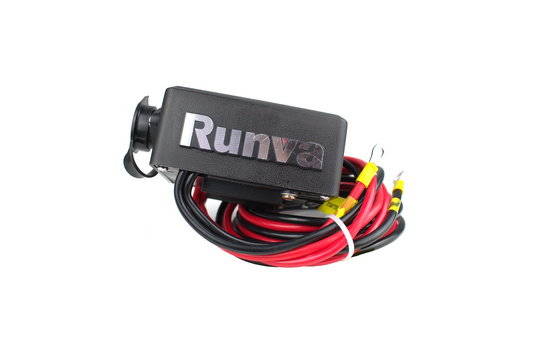

• control box
• cable
• hook
• wired control
• electric cables

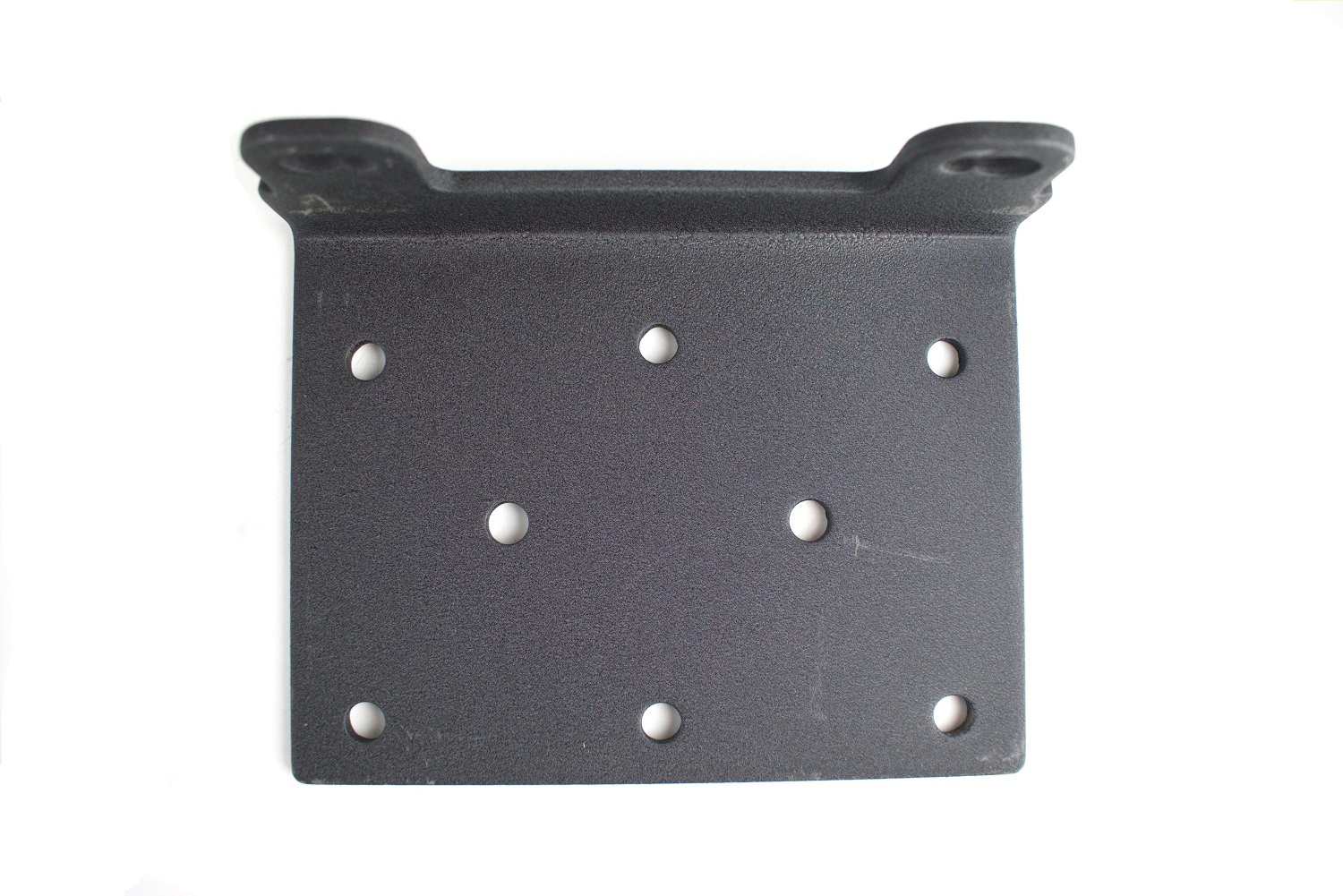

• mounting set
SPECYFIKACJA TECHNICZNA

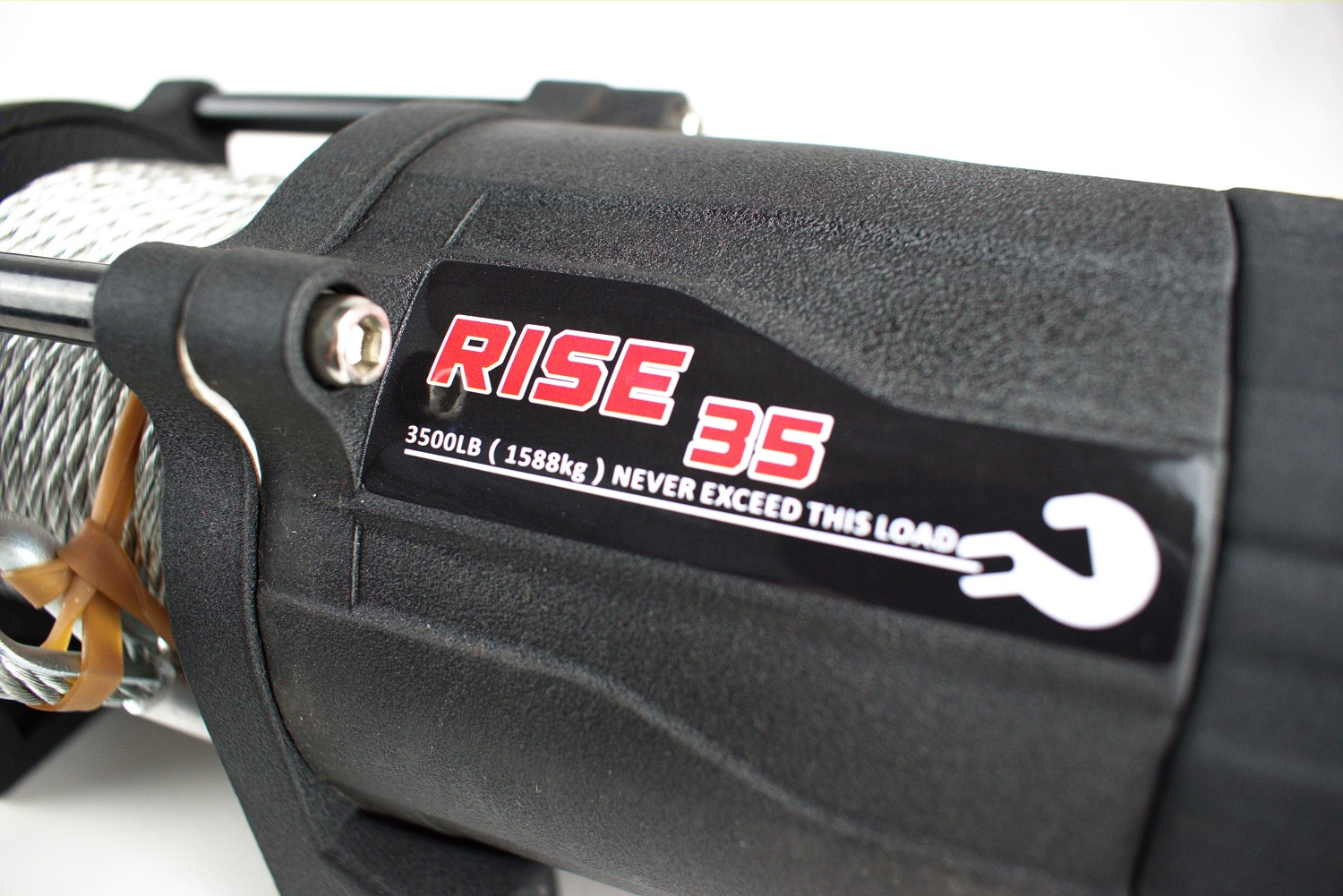

| Cable pull | 3500 lbs (1588 kg) |

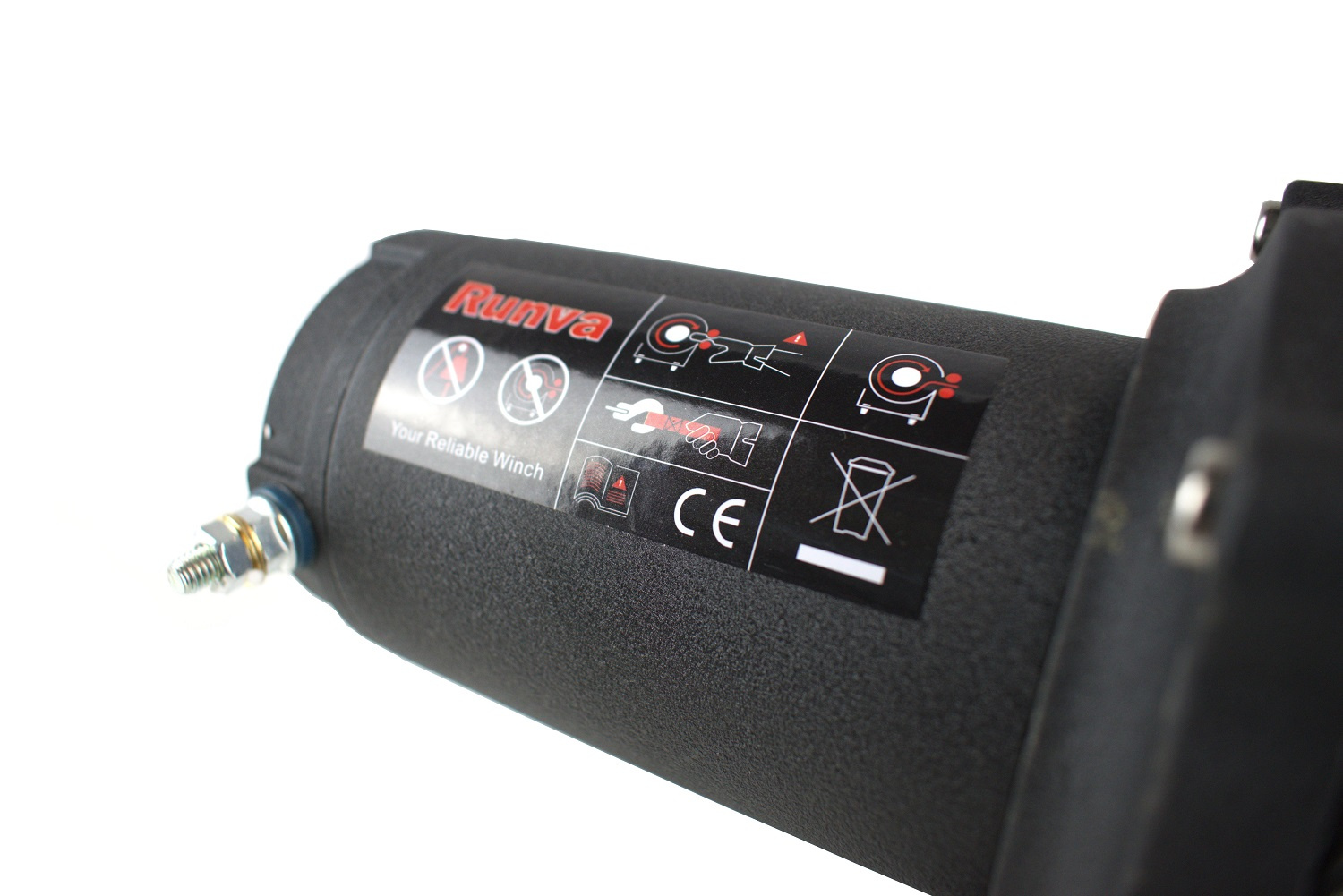

| Motor | 12V input: 3.2 hp (2.4 kw) output 1.3hp (1.0 kw) |
| Gear reduction ratio | 166:1 |
| Cable | 5,4 mm x 13,4 m |
| Drum | 50,4 mm x 82 mm |
| Length x width x hight | 358 x 115 x 123 mm |
| Mounting screws pattern | 124 mm x 76,2 mm |
| Weight | 12,3 kg |
| Cable load (kg) | Cable winding speed (m/min) | Energy consumption (amper) |
| 0 | 5,2 | 28 |
| 454 | 3,0 | 80 |
| 1135 | 2,2 | 150 |
| 1588 | 1,8 | 170 |
Cable pull depending on the layer of the cable
| Layer | Pull (kg) | Length of cable on the drum (m) |
| 1 | 1588 | 2,6 |
| 2 | 1331 | 5,7 |
| 3 | 1145 | 9,1 |
| 4 | 1005 | 13,4 |
Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
