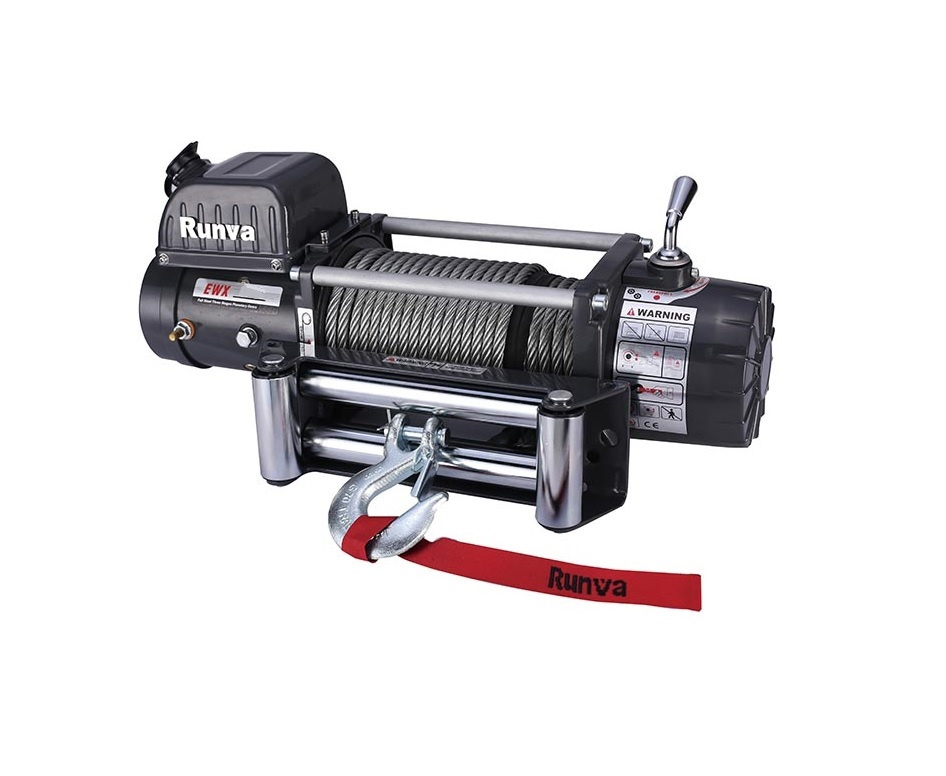

Runva EWX9500U 12V electric winch (EWX 9.5X) - 4.3t
- Runva electric winch with 4.3 tons of thrust and hydraulic Motor 12V. Product similar to: DWH 9000 , PW 8000E .
The electric winch winch is designed for heavy-duty work on off-road and commercial vehicles. Very long service life and high resistance to harsh working conditions are its most important features. Thanks to the use of innovative technology and the most durable materials, it has a guarantee of the highest quality and efficiency, even in extreme working conditions.
The set includes:
- Winch,
- Guide,
- Hook with strap,

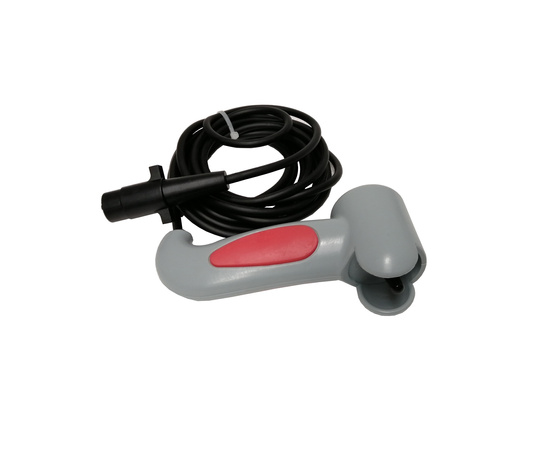

- Controller on cable,

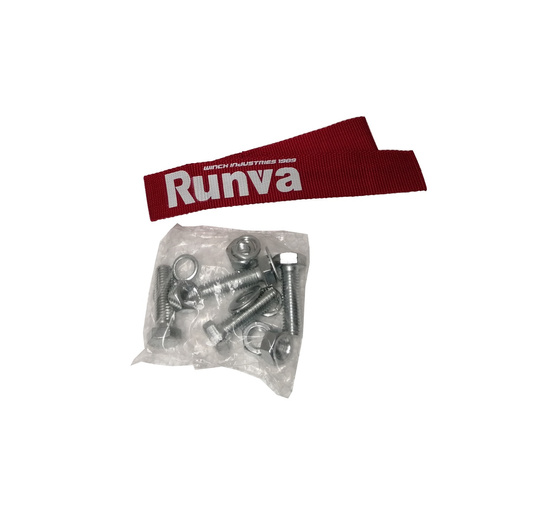

- Screw set,

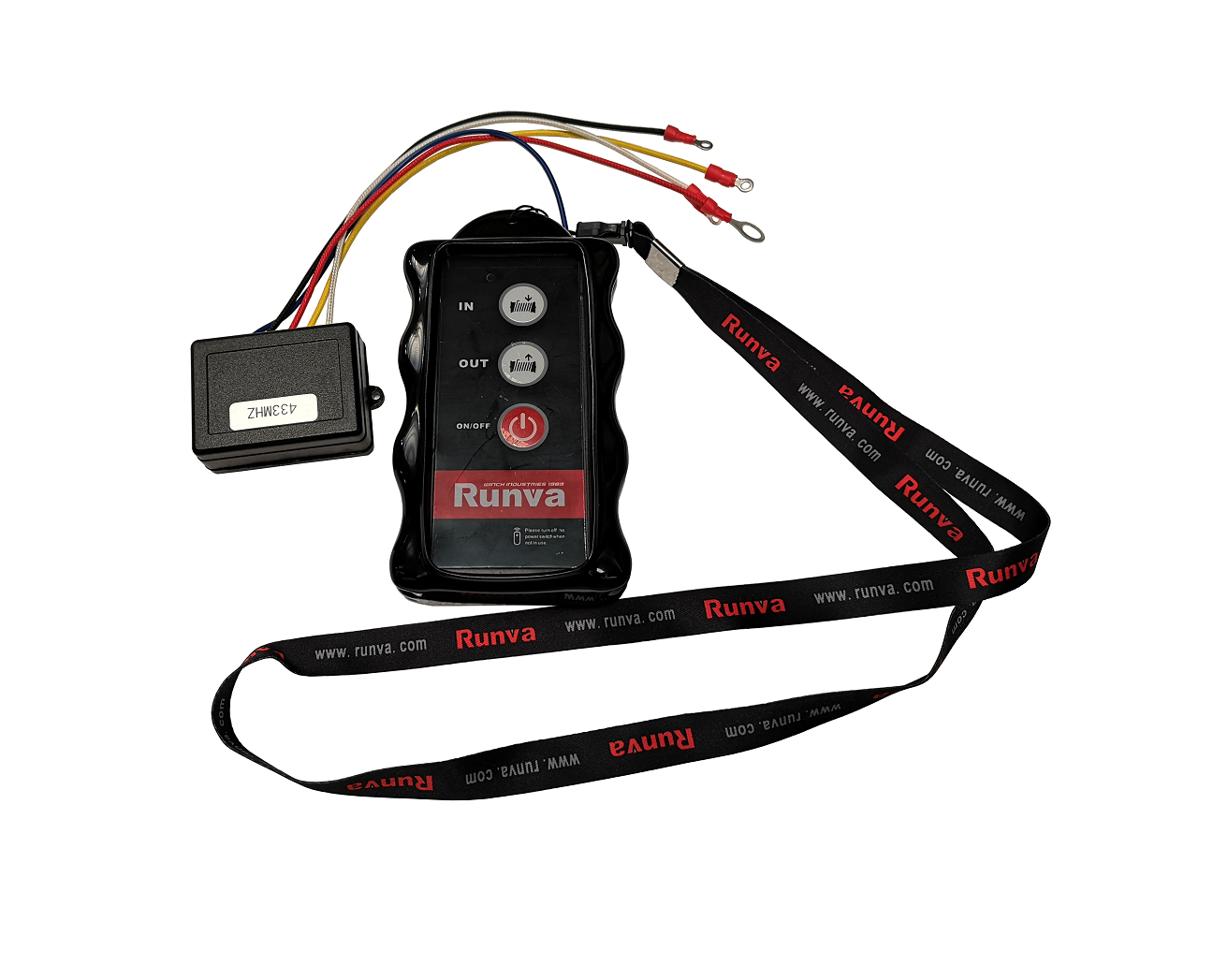

- Wireless remote control,
TECHNICAL SPECIFICATIONS
| Pulling capacity | 9500 lb (4536 kg) |
| Hydraulic Motor | 12V input: 6.1hp(4.6kw) output 2.8hp(2.1kw) |
| Ratio | 230:1 |
| Rope | 9.2mm x 26mm |
| Reel | 63mm x 223mm |
| Dimensions L x W x H. | 22.4 "x7.1 "x9.6" (570 x 180 x 297mm) |
| Mounting screw spacing | 10" x 4.5" (254mm x 114.3mm) |
| Weight | 36.6kg |
Rope retraction speed and current consumption
(first layer of rope on drum)
| Rope load (kg) | Rope speed (m/min) | Current consumption (ampere) |
| 0 | 6.0 | 80 |
| 1361 | 3.8 | 170 |
| 2722 | 3.0 | 260 |
| 4309 | 1.9 | 380 |
Pulling force depending on the rope layer
| Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
| 1 | 4309 | 5.3 |
| 2 | 3495 | 12.0 |
| 3 | 2940 | 19.8 |
| 4 | 2537 | 26.0 |
Product similar to : DWH 9000 , PW 8000E .
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
