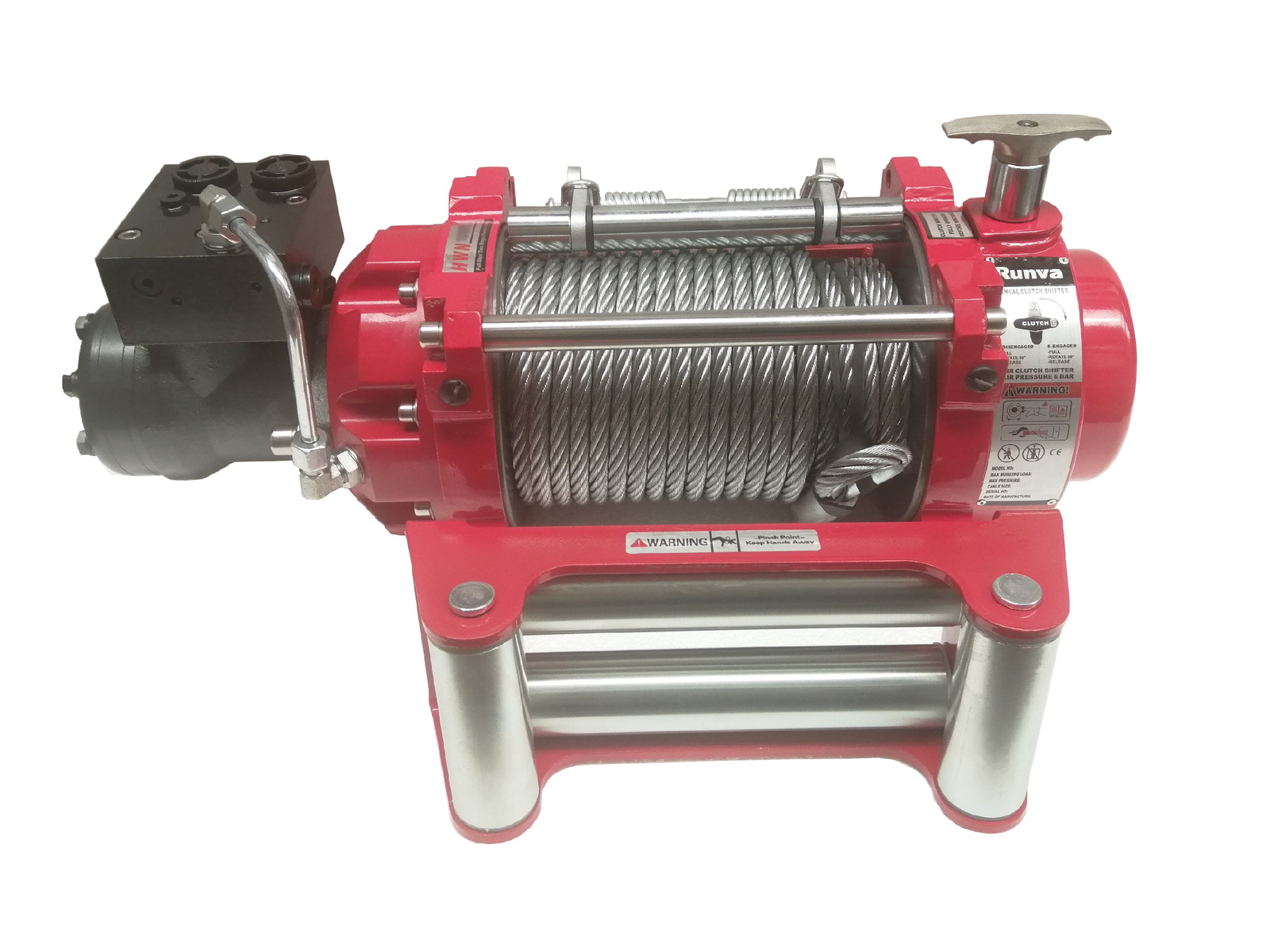

Runva hydraulic winch HWN10000I - 4.5T
- Runva HWN10000I hydraulic winch - 4.5 T - hydraulic brake
New model of Runva brand hydraulic winches.
- winch equipped with a hydraulic brake,
- high-end, heavy-duty 3-stage planetary gearbox,
- iP67 waterproof class
- increased protection against external factors such as dust, rain, mud.
Winch dedicated to: - Tow trucks and roadside assistance vehicles, auto-trucks, - Special vehicles,

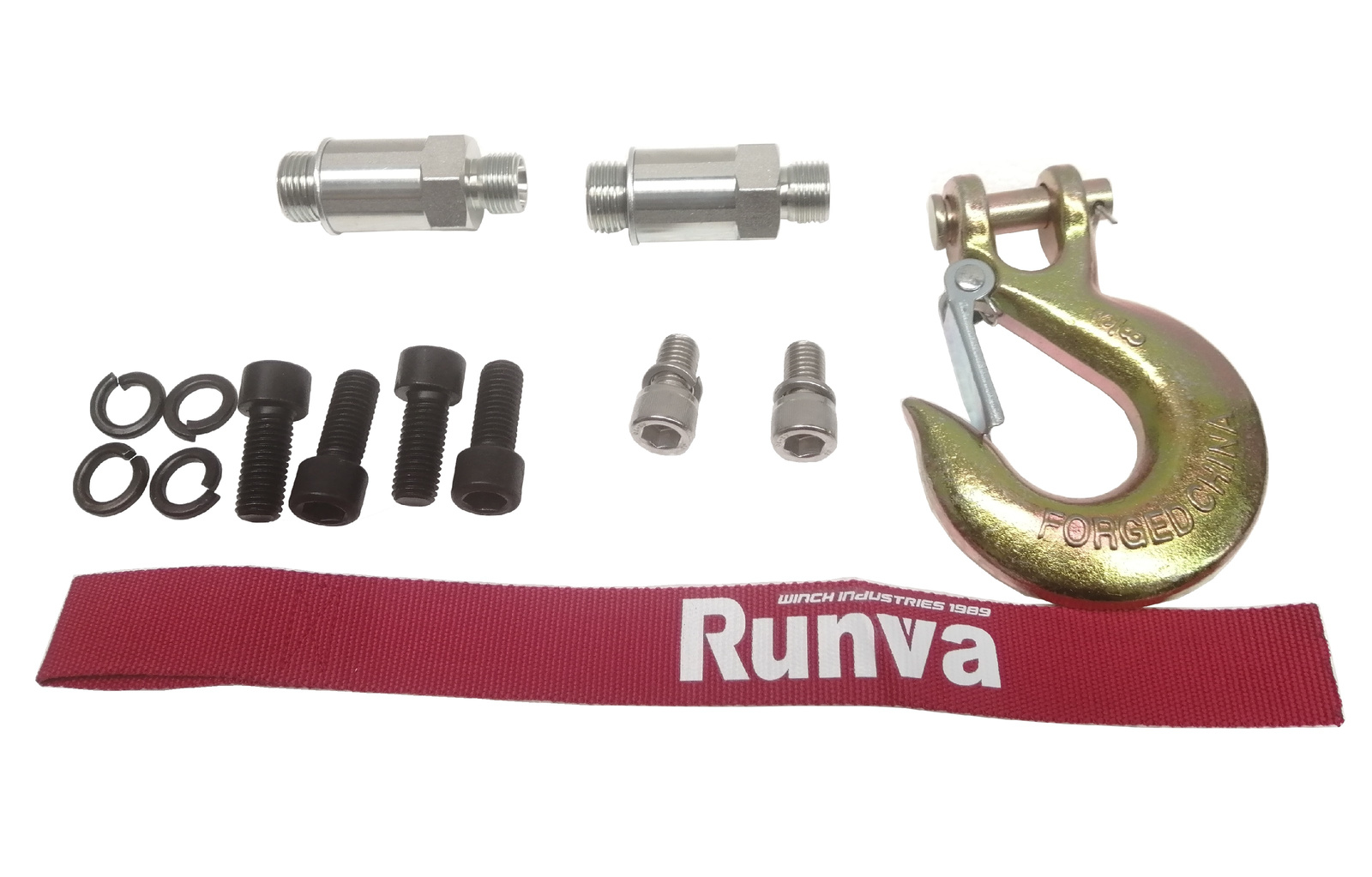

Composition of the complete set: - 4.5T hydraulic winch with manual clutch lever, wire rope with hook + safety tape in red, roller wire rope guide, pressure roller mounted on the winch, laying the rope. set of mounting screws, - 2 x reduction.
Note: the winch in the standard version with a manual clutch lever. Manual-pneumatic lever available as an additional option.
TECHNICAL SPECIFICATIONS
| Pulling capacity | 10000 lbs (4536 kg) |
| Size hydraulic Motor | 65 cm3/rev |
| Oil flow rate | 15 - 45 l/min |
| Ratio | 25,5 : 1 |
| Wire diameter | Ø10.2 mm |
| Rope length | 25,5 m |
| Drum diameter | Ø72 mm × 219 mm |
| Dimensions (L. x W. x H.) | 566 mm × 235 mm × 246 mm |
| Mounting screw spacing | 254 mm × 114.3 mm, 4-M12 |
| Weight | 53 kg |
Rope retraction speed
(first layer of rope on drum)
| Rope load (kg) |
Pressure (bar) |
Flow rate (l/min) |
Rope speed (m/min) |
| 0 | 20 | 5 |
0,7 |
| 1361 | 45 | 10 |
1,4 |
| 2722 | 68 | 20 |
2,7 |
| 4082 | 90 | 35 |
4,6 |
| 4536 | 125 | 40 | 5,3 |
Pulling force depending on the rope layer
| Rope layer | Rope pull (kg) | Amount of rope on drum (m) |
| 1 | 4536 | 5.0 |
| 2 | 3647 | 11.3 |
| 3 | 3049 | 18.6 |
| 4 | 2620 | 25.5 |
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
