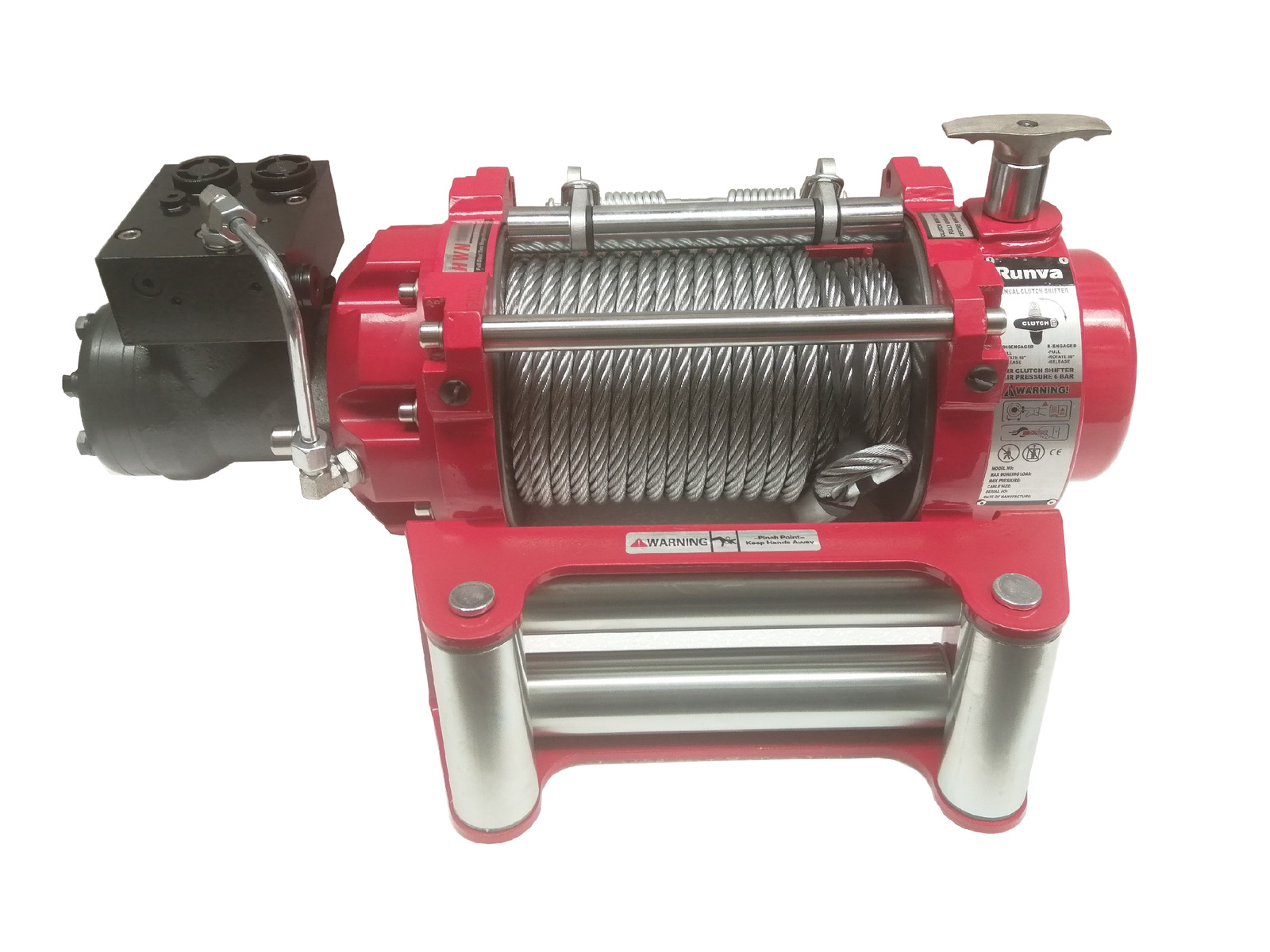

Runva HWN15000I hydraulic winch - 6.8T
- Runva HWN15000I hydraulic winch - 6.8 T - hydraulic brake
New model of Runva brand hydraulic winches.
- winch equipped with a hydraulic brake,
- high-end, heavy-duty 3-stage planetary gearbox,
- iP67 waterproof class
- increased protection against external factors such as dust, rain, mud.
Winch dedicated to: - Tow trucks and roadside assistance vehicles, auto-trucks, - Special vehicles,

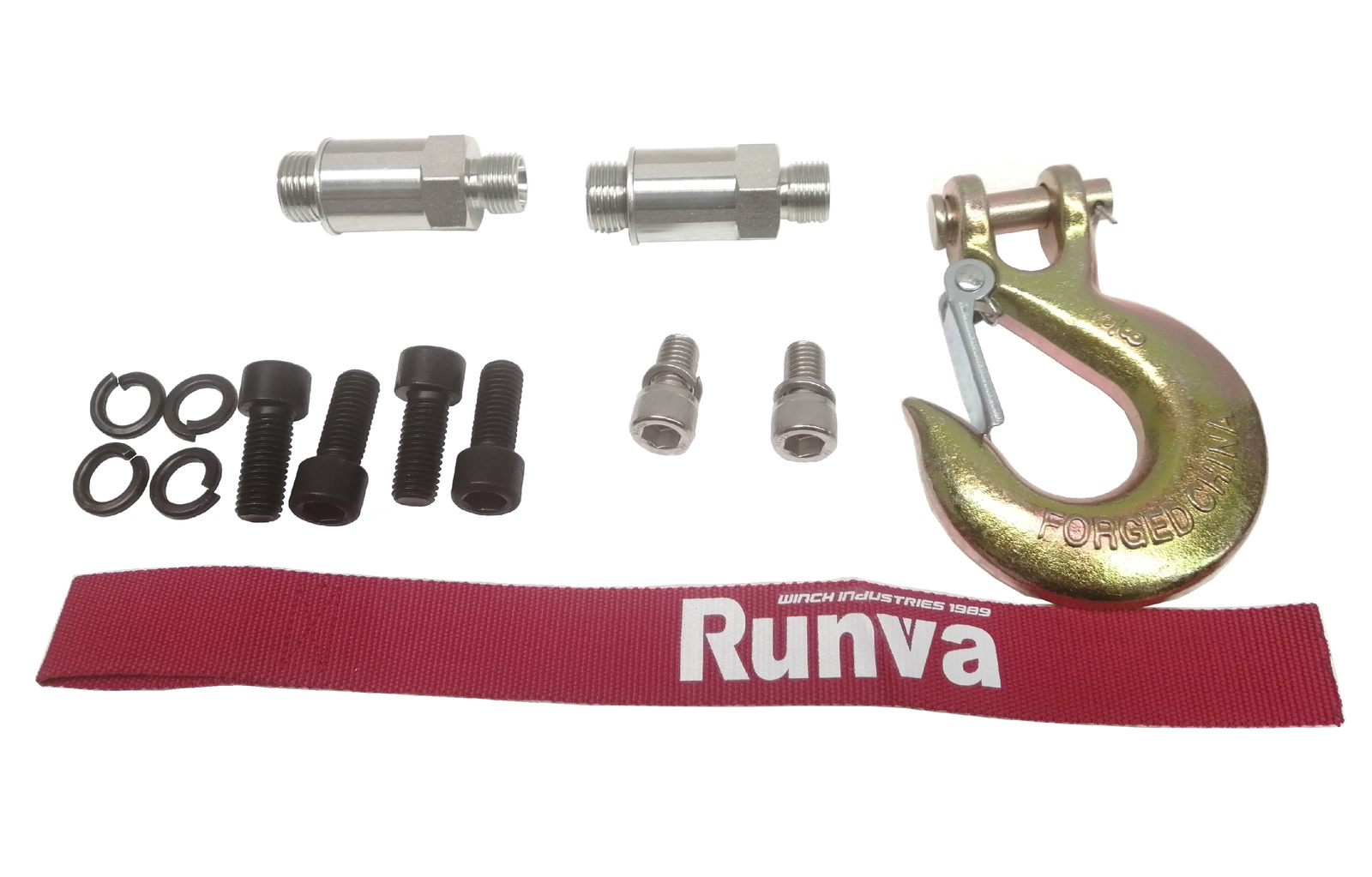

Composition of the complete set: - 6.8T hydraulic winch with manual clutch lever, wire rope with hook + safety tape in red, roller wire rope guide, rope laying pressure roller mounted on the winch, set of mounting screws, 2 x reduction.
Note: the winch in the standard version with a manual clutch lever. Manual-pneumatic lever available as an additional option.
TECHNICAL SPECIFICATIONS
| Pulling capacity | 15000 lbs (6804 kg) |
| Size hydraulic Motor | 80 cm3/rev |
| Oil flow | 5 - 60 l/min |
| Ratio | 33,4 : 1 |
| Wire diameter | Ø12 mm |
| Rope length | 26,5 m |
| Drum diameter | Ø89 mm × 217 mm |
| Dimensions (L. x W. x H.) | 589 mm × 255 mm × 262 mm |
| Mounting screw spacing | 254 mm × 114.3 mm, 4-M12 |
| Weight | 60 kg |
Rope retraction speed
(first layer of rope on the drum)
|
Rope load (kg) |
Pressure (bar) |
Flow rate (l/min) |
Rope speed (m/min) |
| 0 | 20 | 5 |
0,5 |
| 2268 | 43 | 10 |
1,0 |
| 4536 | 87 | 20 |
2,0 |
| 5443 | 100 | 30 |
3,0 |
| 6804 | 130 | 60 | 6,0 |
Pulling force depending on the rope layer
| Rope layer |
Rope pull (kg) |
Number of rope on drum (m) |
| 1 | 6804 | 5.5 |
| 2 | 5498 | 12.4 |
| 3 | 4612 | 20.1 |
| 4 | 8757 | 26.5 |
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
