Runva hydraulic winch HWP20000Y3P
- Runva HWP20000Y3P hydraulic winch. Product similar to: DWHI 200 , PWH 20000 .

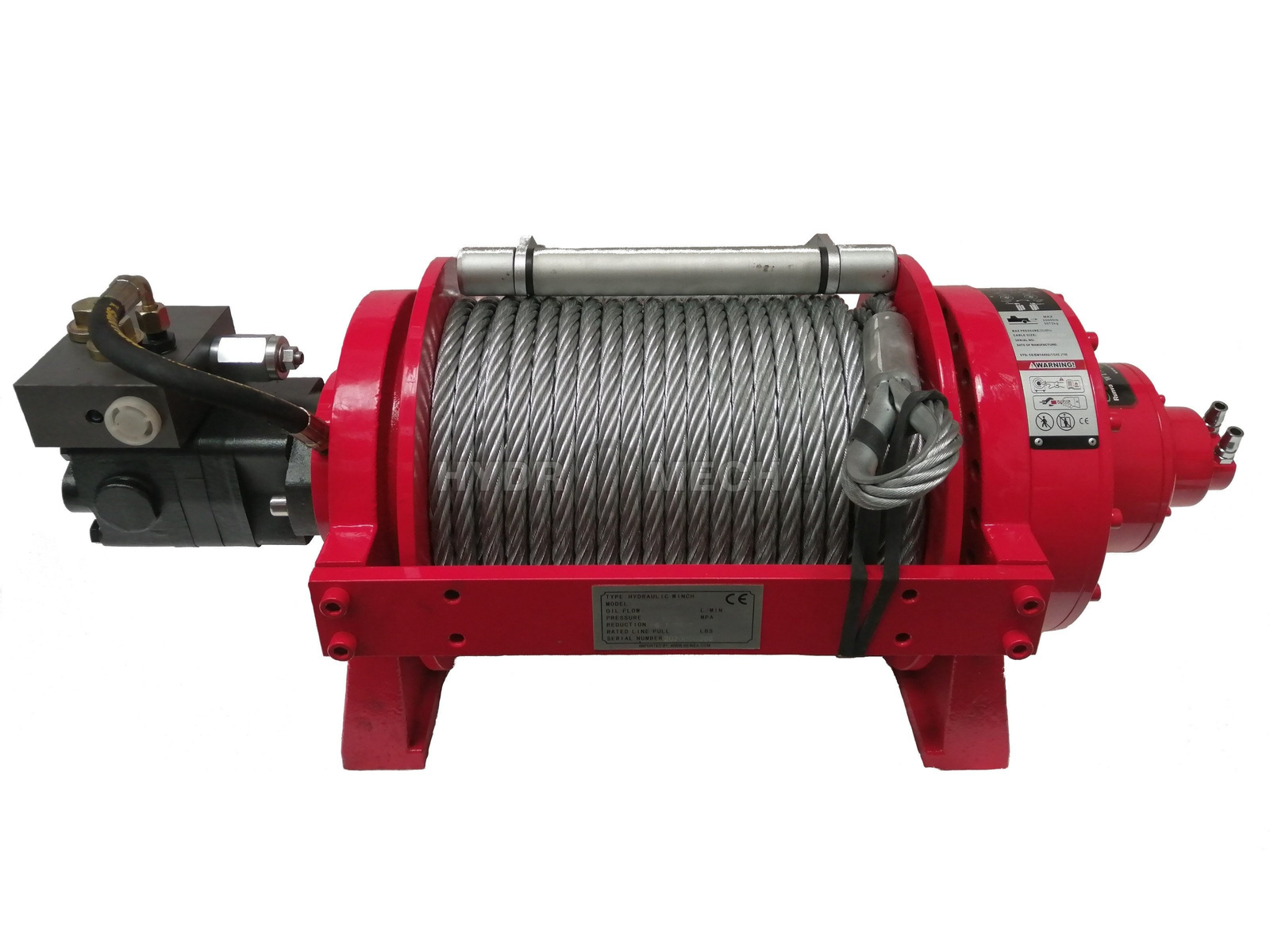

Runva hydraulic winch HWP20000Y3P, is the highest quality equipment, suitable for use in even the toughest conditions. The winch has a pulling capacity of 9072 kg, allowing two modes of operation - slow and fast.
Winch dedicated to: - Tug and roadside assistance vehicles, auto-trucks, - Special vehicles,

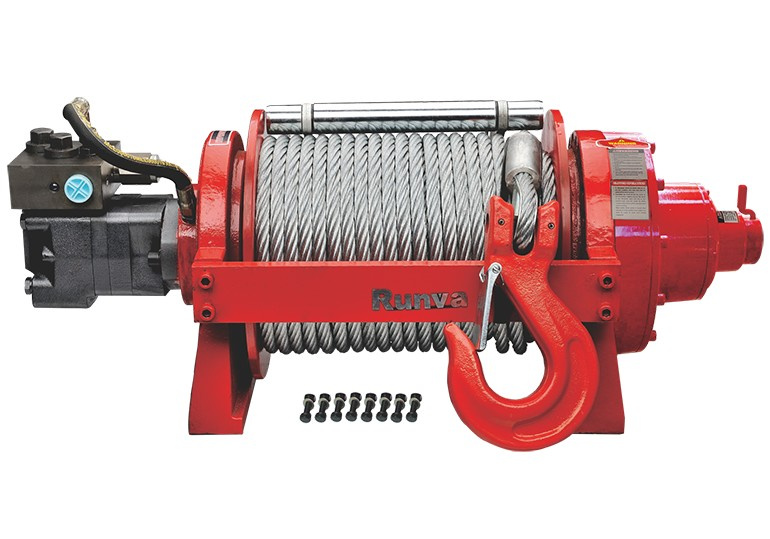

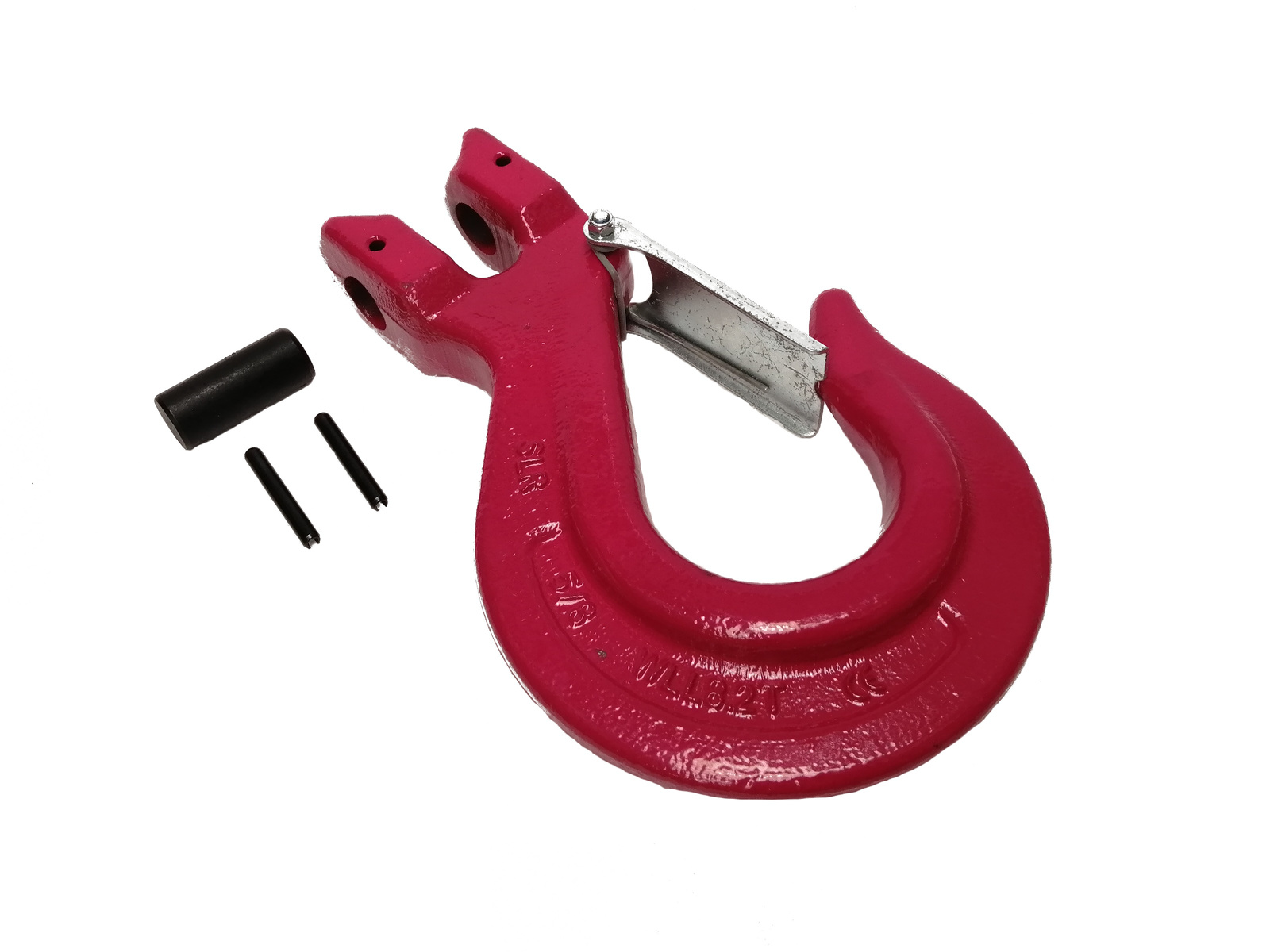

Composition of the complete set: - runva HWP20000 hydraulic winch, - 4 roller rope guide, - rope tensioner, - steel rope wound on the winch, - hook, - set of mounting screws, - instructions.
TECHNICAL SPECIFICATIONS
| Pulling capacity | 20000 lbs (9072 kg) |

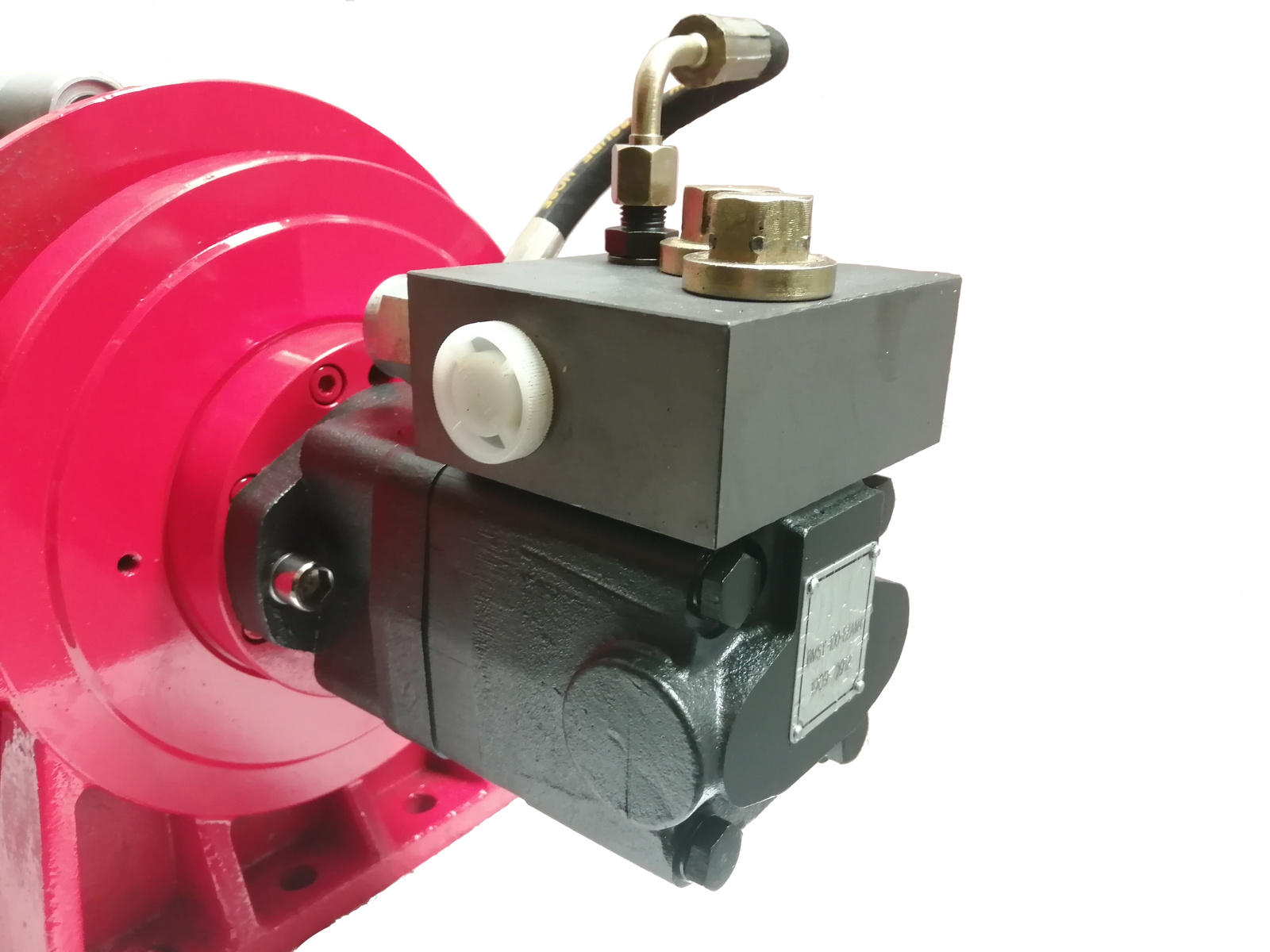

| Size hydraulic Motor | 100 cm3/rev |
| Oil flow rate | 15 - 75 l/min |
| Gear ratio | Fast : 6:1 , slow : 39:1 |
| Wire diameter | Ø14mm |
| Rope length | 48 m |
| Drum diameter | Ø138 mm × 316 mm |
| Dimensions (L. x W. x H.) | 821 mm × 390 mm × 320 mm |
| Mounting screw spacing | 431 mm × 64 mm × 192 mm, 8-M14 |
| Weight | 163 kg |
Product similar to: DWHI 200 , PWH 20000 .
Note: The technical and operational parameters of the product given above are for information purposes only. The owner and administrator of hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer.
