TECHNICAL SPECIFICATIONS

• Pulling capacity: 15,000 lbs (6804kg)
• Hydraulic Motor: 80 cm3/rev
• Oil flow: 5 - 60 l/min
• Gear ratio: 33,4:1
• Wire rope: Φ12mm x 26.5mm
• Drum: Ø89mm × 217mm

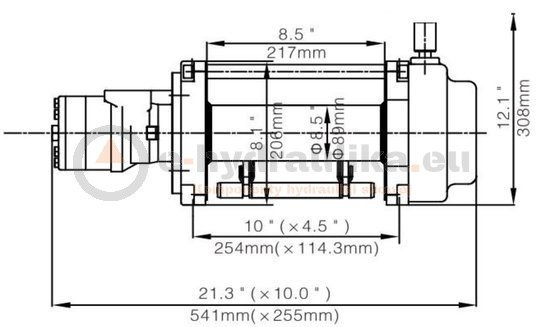

• Dimensions L x W x H: 544mm x 255mm x 242mm
• Mounting screw spacing: 254mm × 114.3mm, 4xM12
• Weight: 75.6 kg

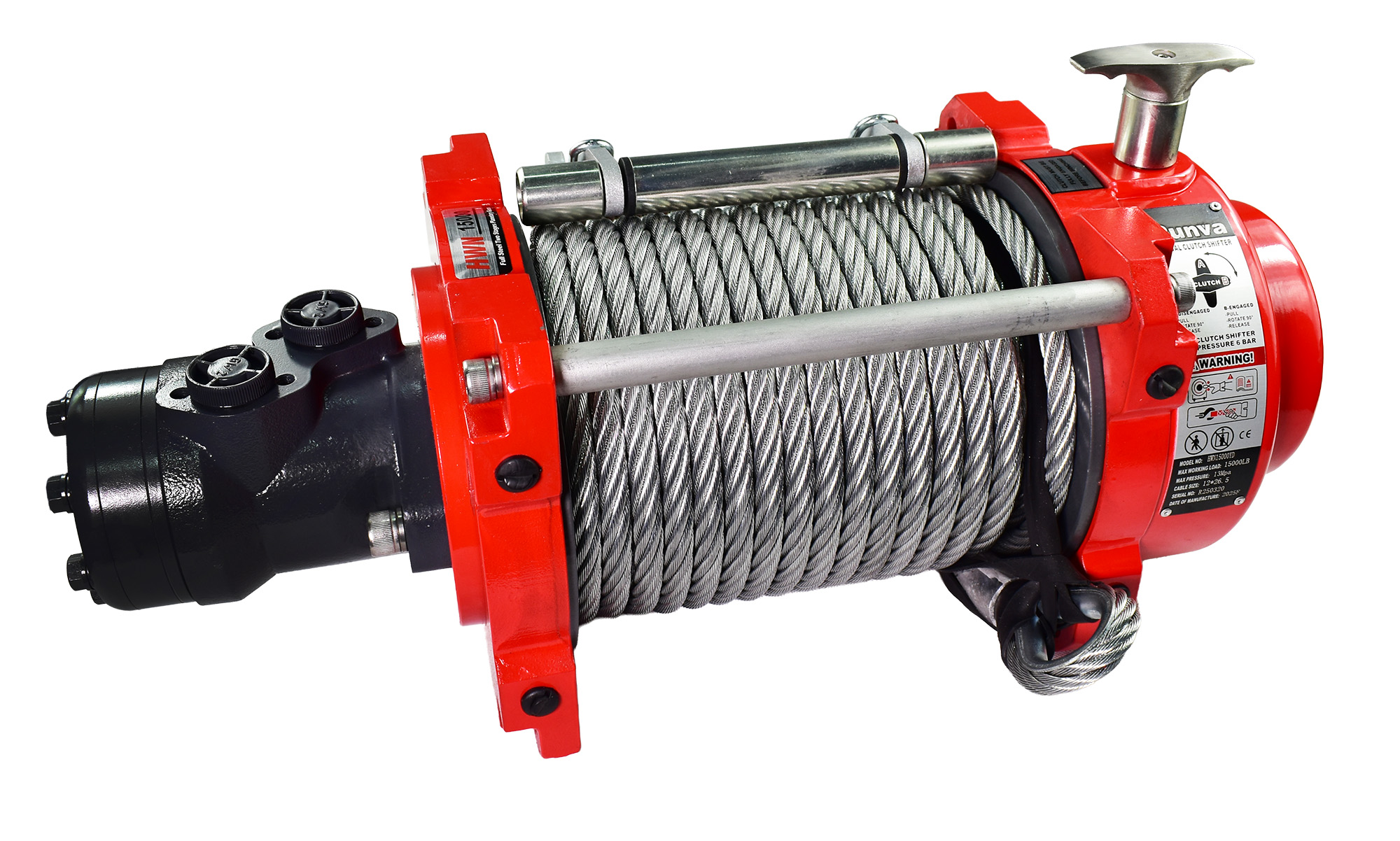

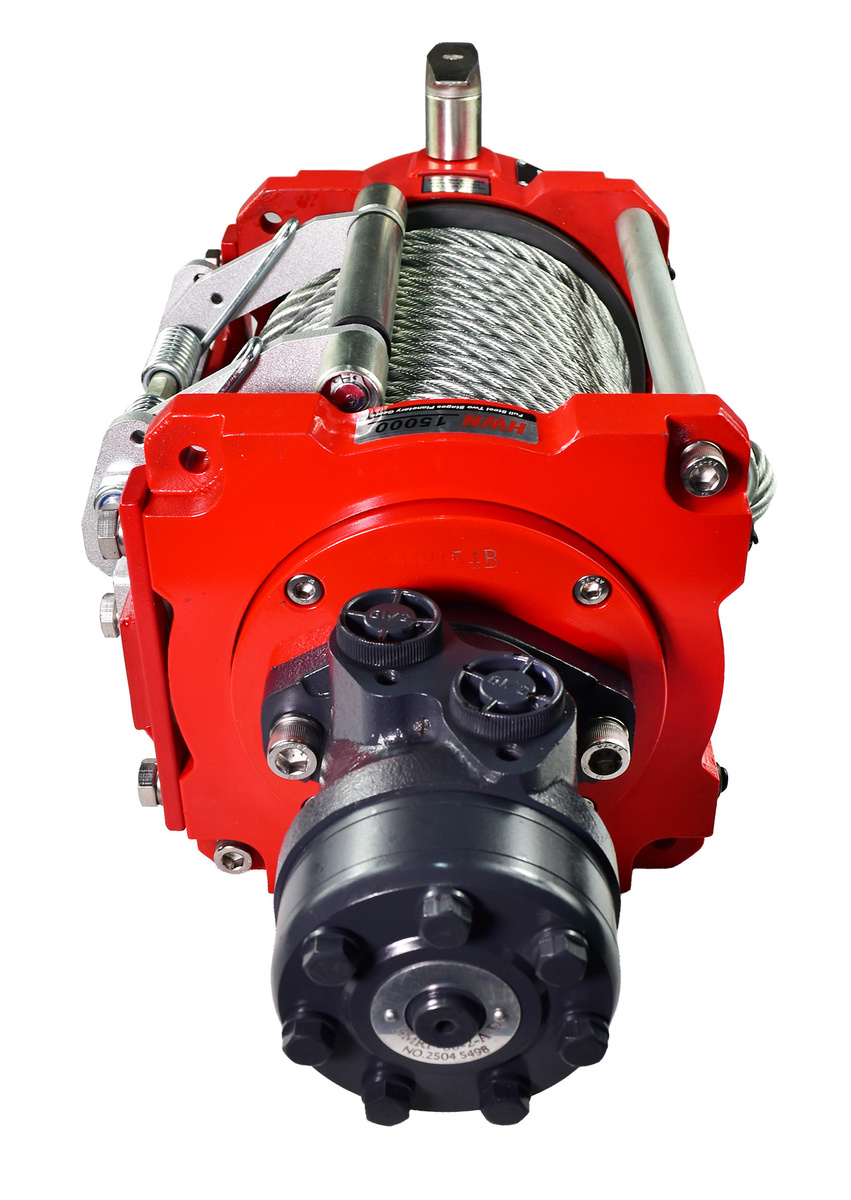

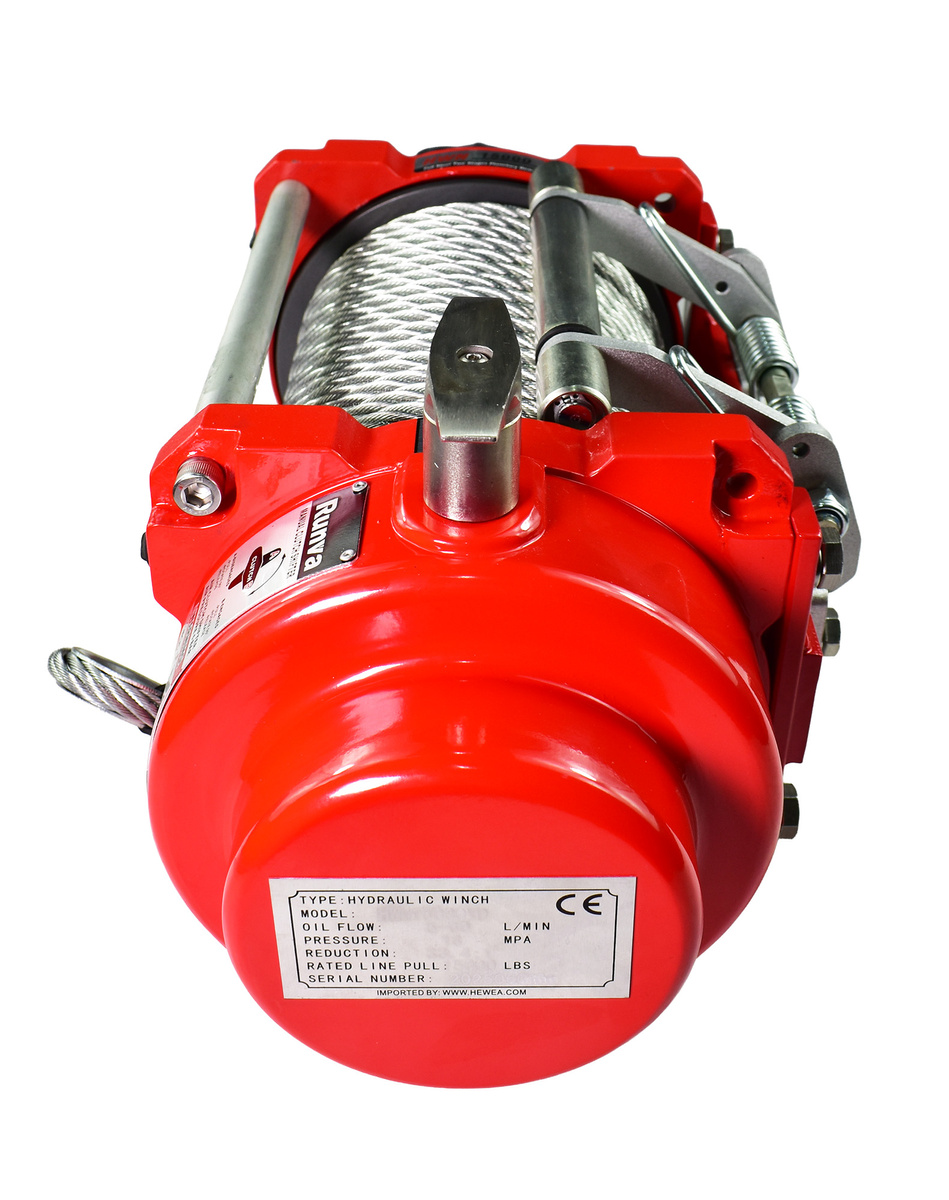

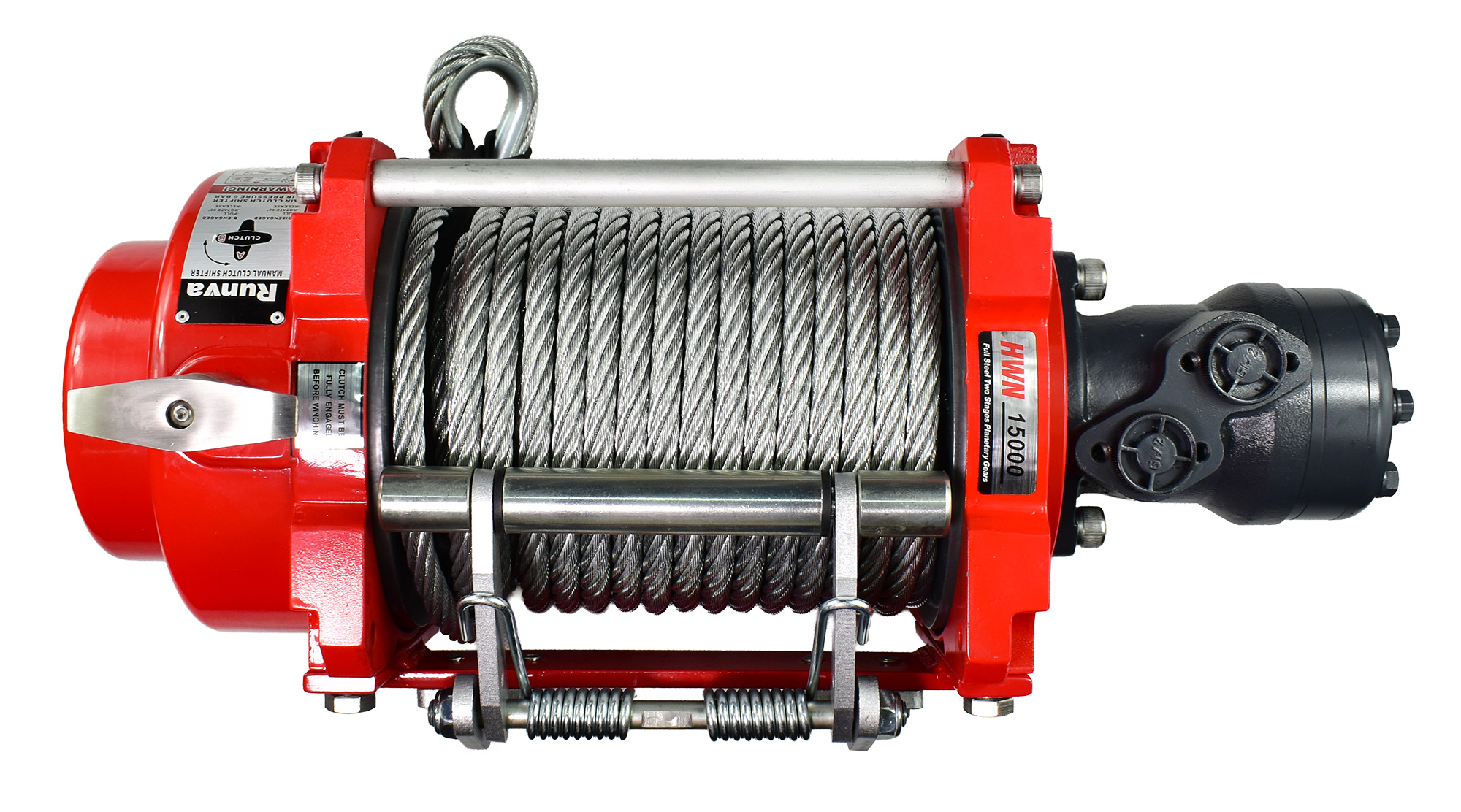

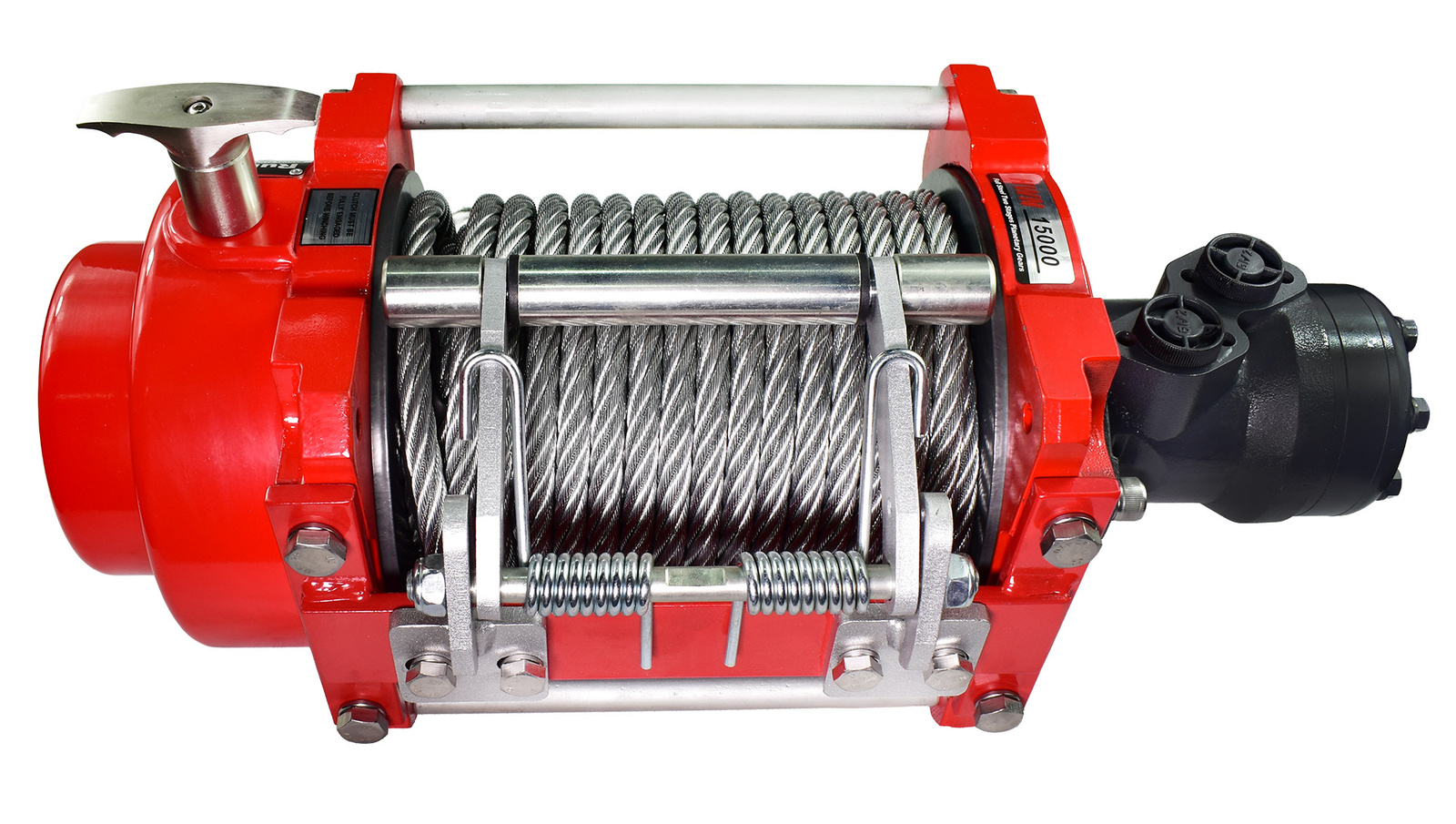

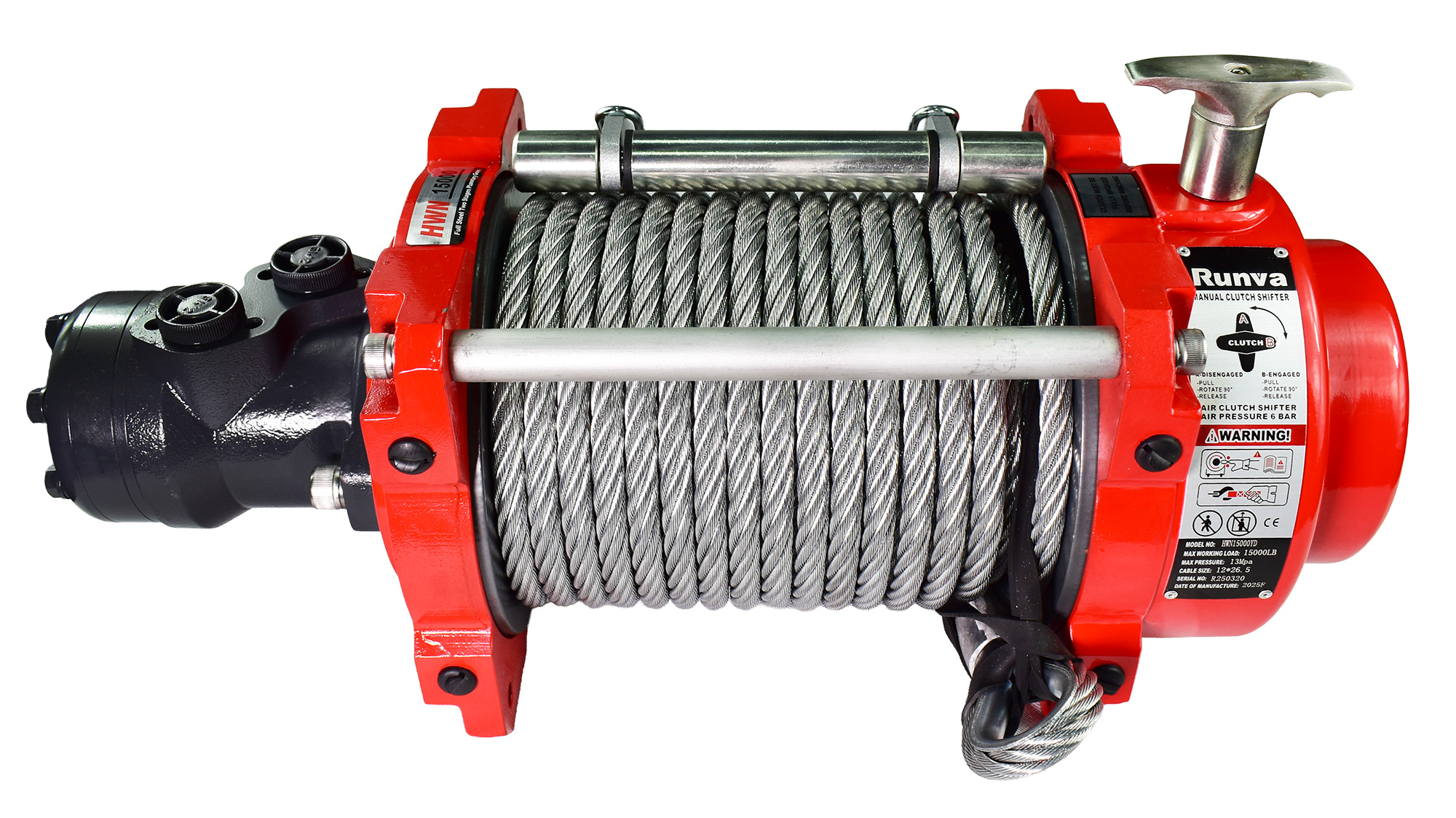

HYDRAULIC WINCH HWN15000 6.8T

The hydraulic winch is designed for use in harsh conditions and difficult terrain.

Thanks to high-quality materials and sealing, this winch has a very long service life and high resistance to harsh working conditions.

Its reliability in the field is enhanced by a 26.5-meter-long, 12-mm-diameter steel rope with a breaking force of 28000lbs

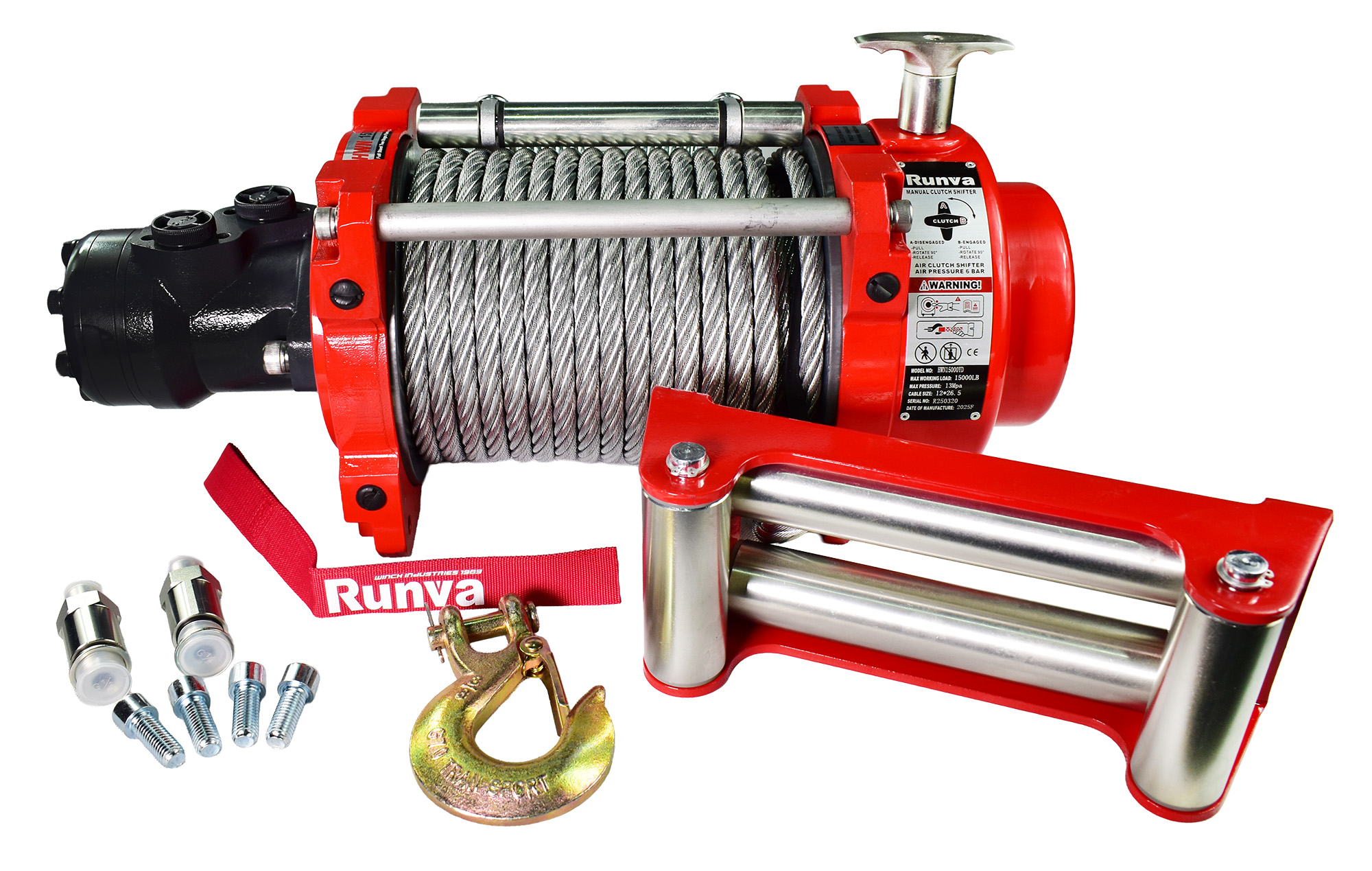

THE KIT INCLUDES:

• hydraulic winch with a pulling force of 15000lbs (6.8T) with wire rope (12mm/26.5m)
• rope tensioner
• roller guide
• hook
• set of mounting screws
