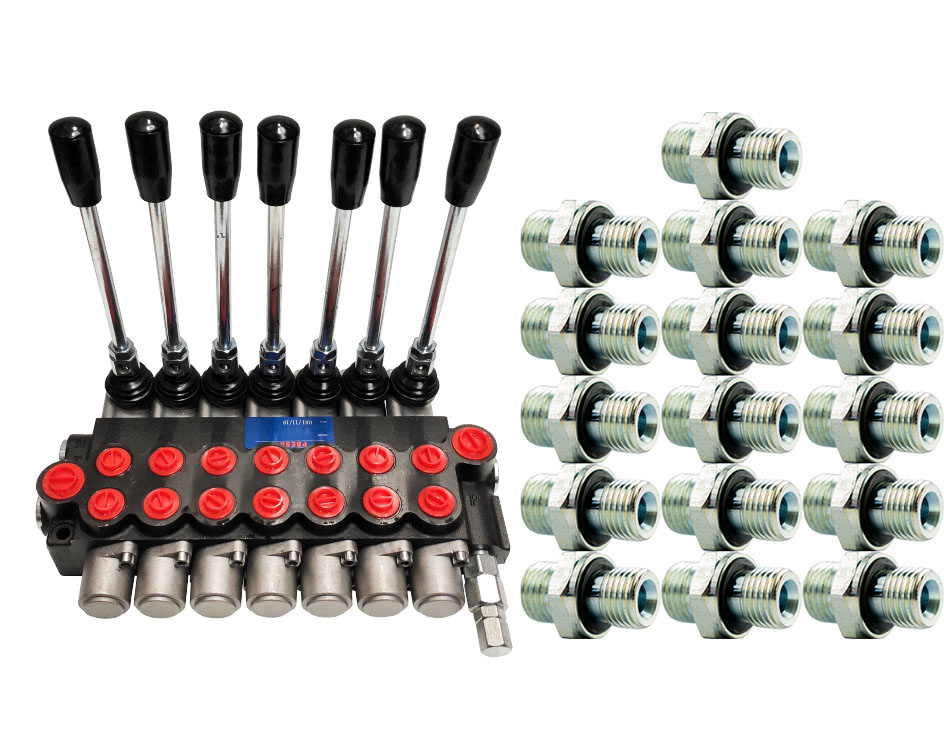

PRESKO Directional Control Valve, complete with hose connections
- PRESKO Directional Control Valve, 7-ways, complete with hose connections
Hydraulic directional control valve, 7-way, flow 40 l, with a set of dedicated hose nipples
FEATURES
• PRESKO directional valves are used by many producers of agricultural, construction and industrial equipment
• High-quality materials used for production guarantee durability and smooth operation
• Solid and compact construction
• Easy mounting
• PRESKO directional control valve can be connected with another valve with a pressure fitting - available in our shop.
• Equipped with a safety valve
TECHNICAL DETAILS
| Number of ways |
7 |
| Safety valve setting | 180 bar |
| Maximum operating pressure | 250 bar |
| Maximum flow | 40 l/min |
| Spacing between sections | 35 mm |
| Weight |
6,07 kg |
A set of dedicated nipples with gaskets:
|
Porting
Oil inlet BSP 1/2''
Oil outlet BSP 1/2''
Connection ports BSP 3/8''
Serial connection (to another directional control valve) BSP 1/2"
- 2 x nypel 1/2'' - M22x1,5 - uszczelnianie po stronie 1/2'' (do zasilania i powrotu)
- 14 x nypel 3/8'' - M18x1,5 - uszczelnianie po stronie 3/8'' (do wyjścia na sekcje)
Note: The technical and operational parameters of the product are for customer’s information. The owner and administrator of the hydromech.eu online store are not responsible for their compliance with the parameters of the product supplied by the manufacturer. The source data is included in the manufacturer's brochure.
